22 Years' Battery Customization

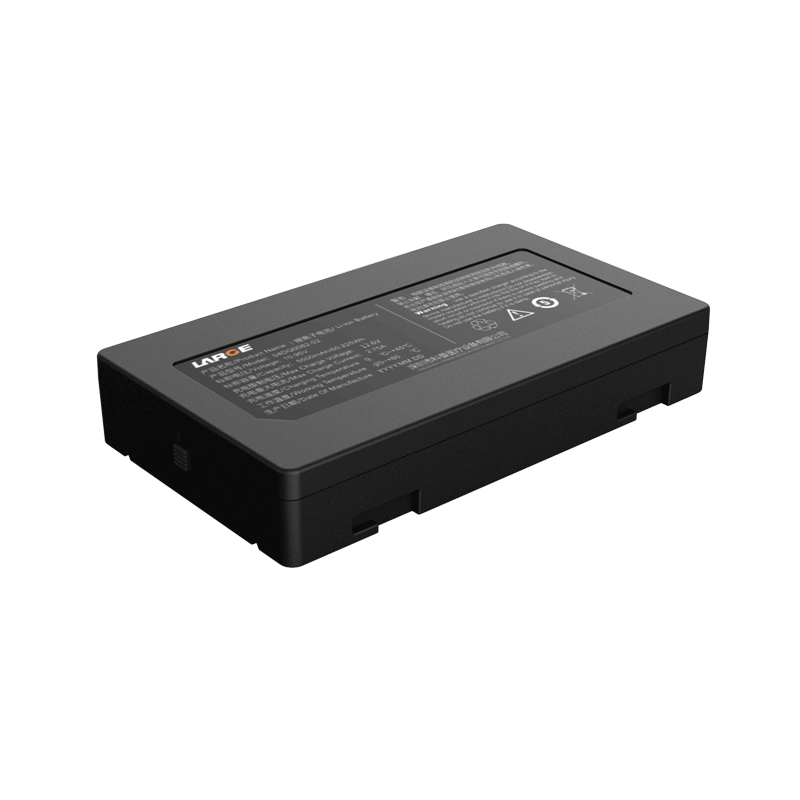

18650 10.95V 5500mAh Lithium Battery Samsung Battery for Monitor with SMBUS Communication

18650 10.95V 5500mAh Lithium Battery Samsung Battery for Monitor with SMBUS Communication
18650 10.95V 5500mAh Lithium Battery Samsung Battery for Monitor with SMBUS Communication
18650 10.95V 5500mAh Lithium Battery Samsung Battery for Monitor with SMBUS Communication
18650 10.95V 5500mAh Lithium Battery Samsung Battery for Monitor with SMBUS Communication

Product Detail

Product number: 04DQ0082-02

Cell model:18650-2750mAh-3.65V

Battery specification: 18650-3S2P-5500mAh-10.95V

Nominal voltage:10.95V

Nominal capacity:5500mAh

Charging voltage: 12.6V

Charging current: ≤2750mA

Discharging current: ≤10000mA

End-off voltage: 7.5V

Internal resistance: ≤200mΩ

Battery weight: about 310g

Product dimension: (130*75*23)±0.2mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection.

Communication protocol: SMBUS

Application field: monitor

*
*
*
