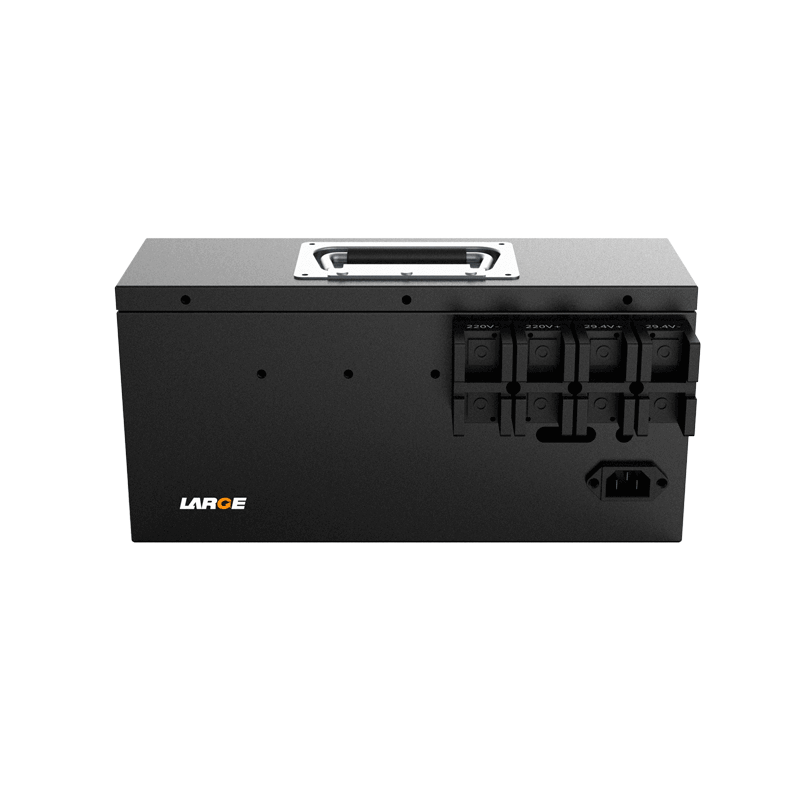

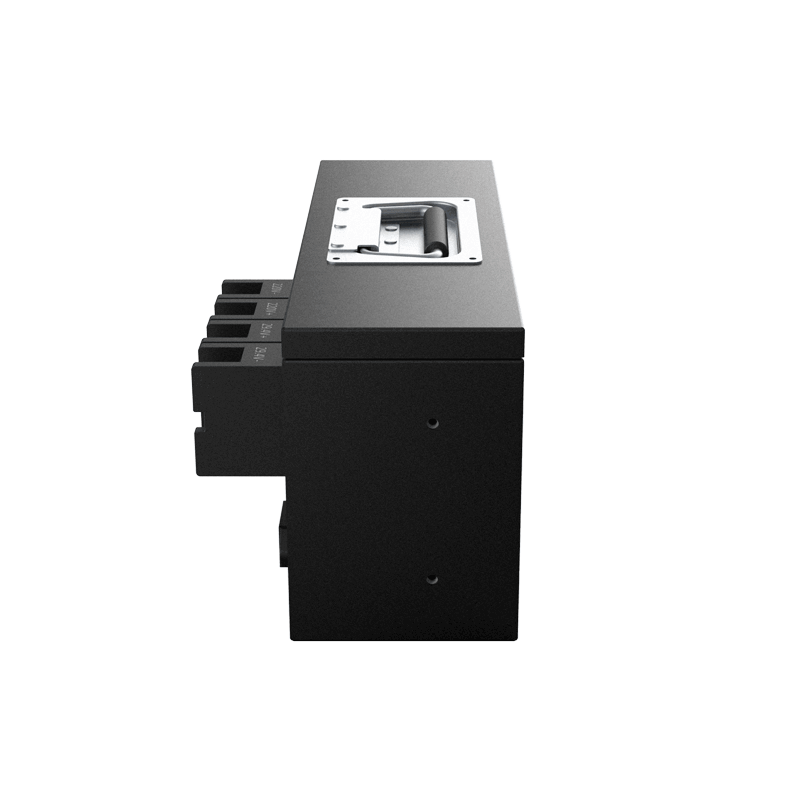

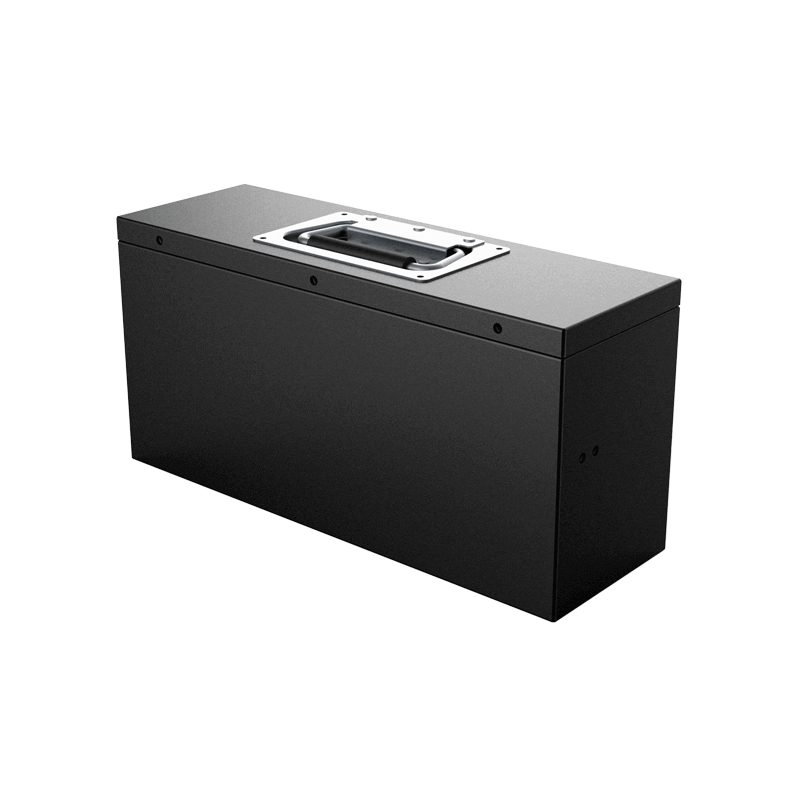

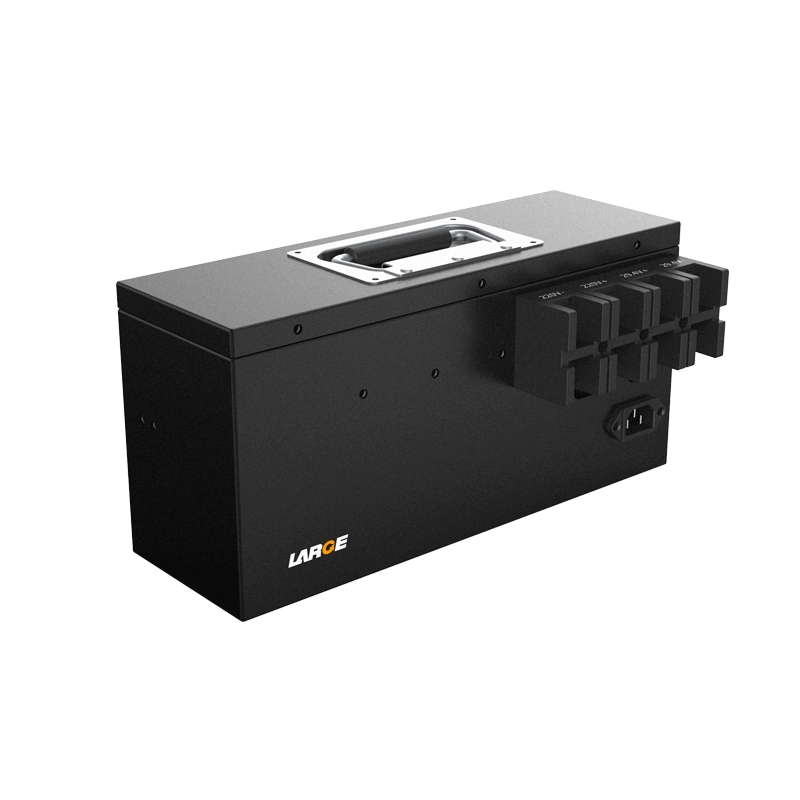

18650 25.2V 10Ah 18650 Lithium Ion Battery Samsung Battery for Backup Power with 485 Communication
Product Number:
08DQ0014-01
Nominal voltage:
25.2V
Nominal capacity:
10Ah
Battery Configuration:
18650-7S4P
Dimension:
332 × 162 × 112 mm
Application:
portable devices
RS485 Communication, Metal Plate Case, Long Cycle Life
Product Overview
This battery is specially designed for portable devices, suitable for outdoor operation and high-load continuous power supply applications. Featuring stable output, long runtime, and RS485 communication, it ensures reliable long-term operation.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 08DQ0014-01 |
| Cell Model | 18650/3.6V/2500mAh |
| Battery Configuration | 18650-7S4P |
| Nominal Voltage | 25.2V |
| Nominal Capacity | 10Ah |
| Rated Energy | 252Wh |
| Charging Voltage | 29.4V |
| Discharge Cut-off Voltage | 19.6V |
| Standard Charging Current | ≤10A |
| Standard Discharge Current | 20A |
| Max Continuous Discharge Current | 40A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～35℃ |
| Dimensions | 332 × 162 × 112 mm |
| Weight | 4 kg |
| Battery Case | Metal Plate |
| Communication Protocol | RS485 |
| Protection System | Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
