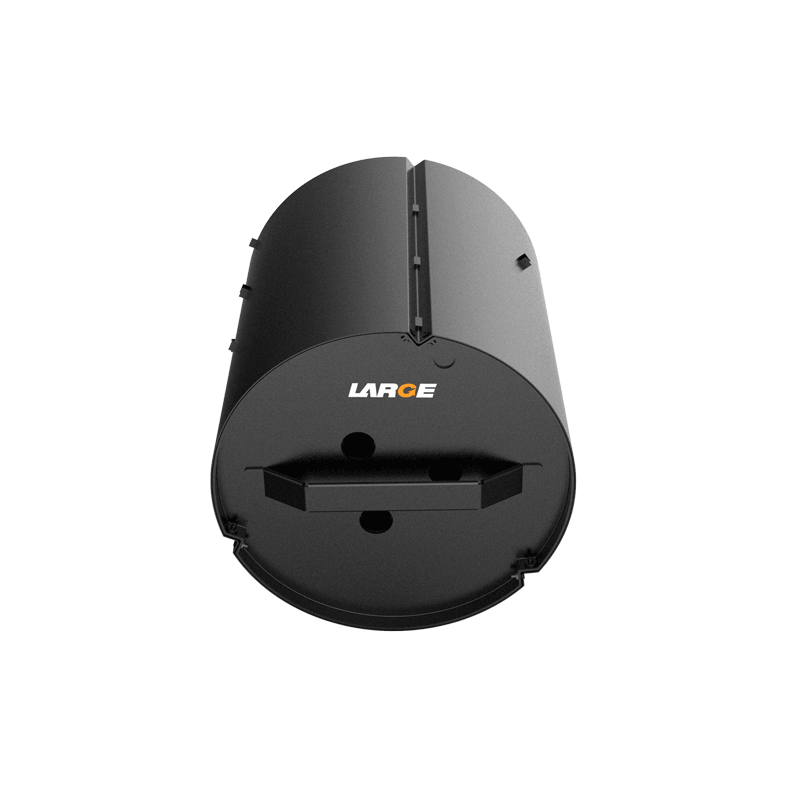

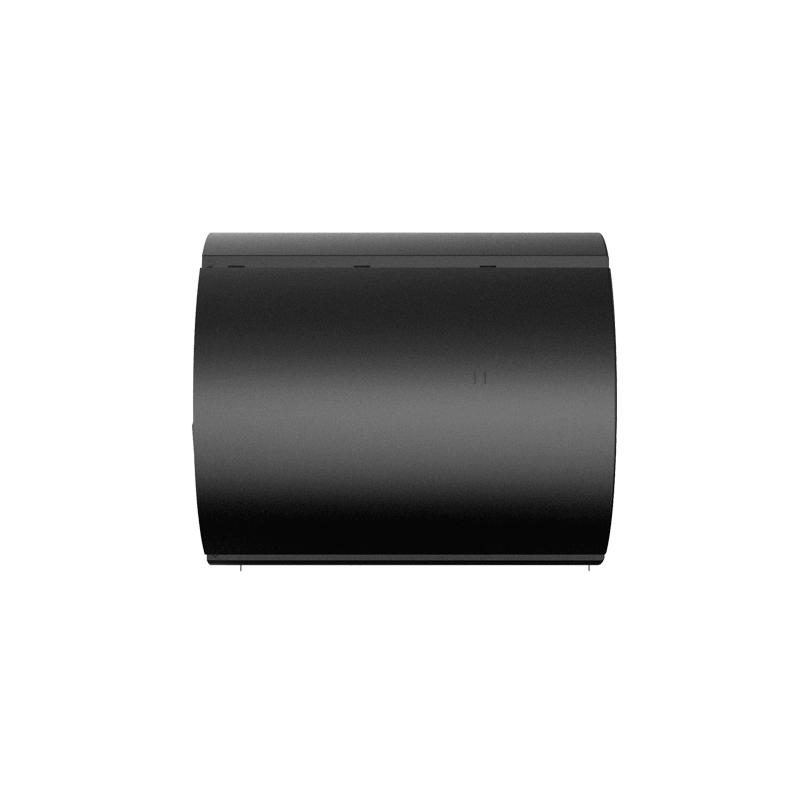

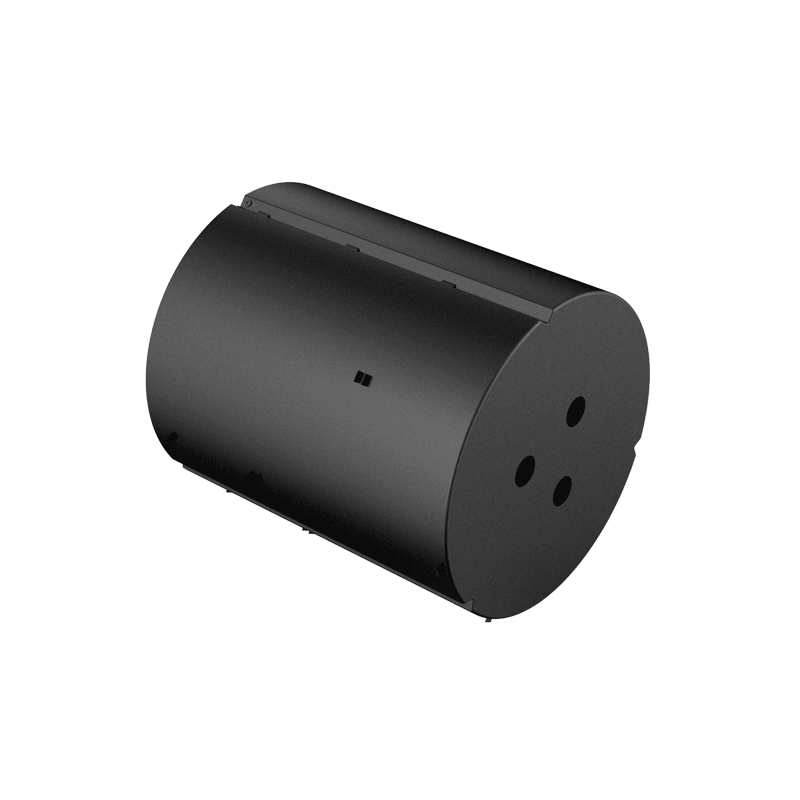

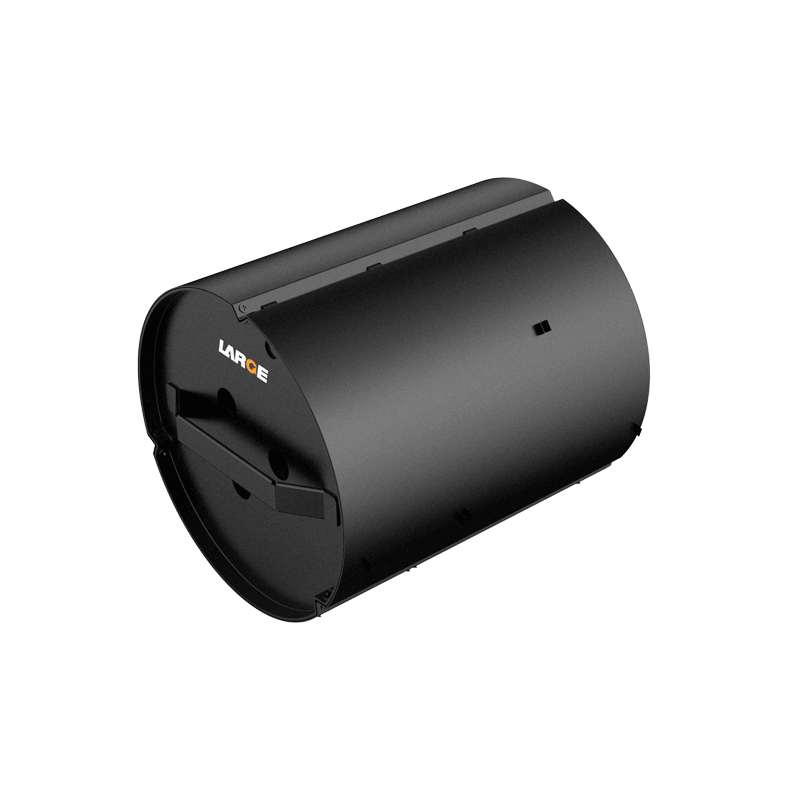

32700 22.4V 54Ah LiFePO4 Battery for Intelligent Robot

Product number: 08DQ0011-01

Cell model：IFR32700/6000mAh/3.2V

Battery specification: 32700-7S9P/54Ah/22.4V

Nominal voltage：22.4V

Nominal capacity：54Ah

Charging voltage: 25.2V

Charging current: 5.4A

Discharging current: 10A

End-off voltage: 17.5V

Internal resistance: ≤200mΩ

Battery weight: 10KG

Product dimension: 500*247*211.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～60℃(less than a month) -20℃～25℃(less than six months)

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, power communication, etc.

Application field: robot, AGV, mobile trolley

Product features

1. Data communication management: adopt TI software management chip, accurate data transmission and RS485 communication transmission.

2. The battery pack has good security, nice performance and long cycling life.

3. The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. Metal housing increases the reliability and fastness of the battery.

5. Hardware output: adopt the metal plate shrapnel output mode to increase the conduction reliability
