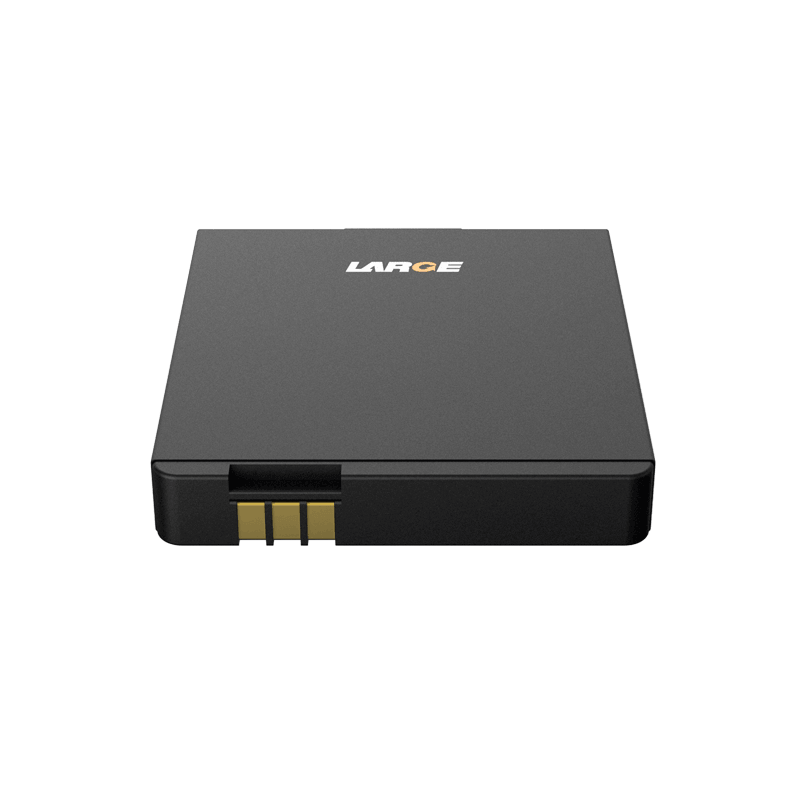

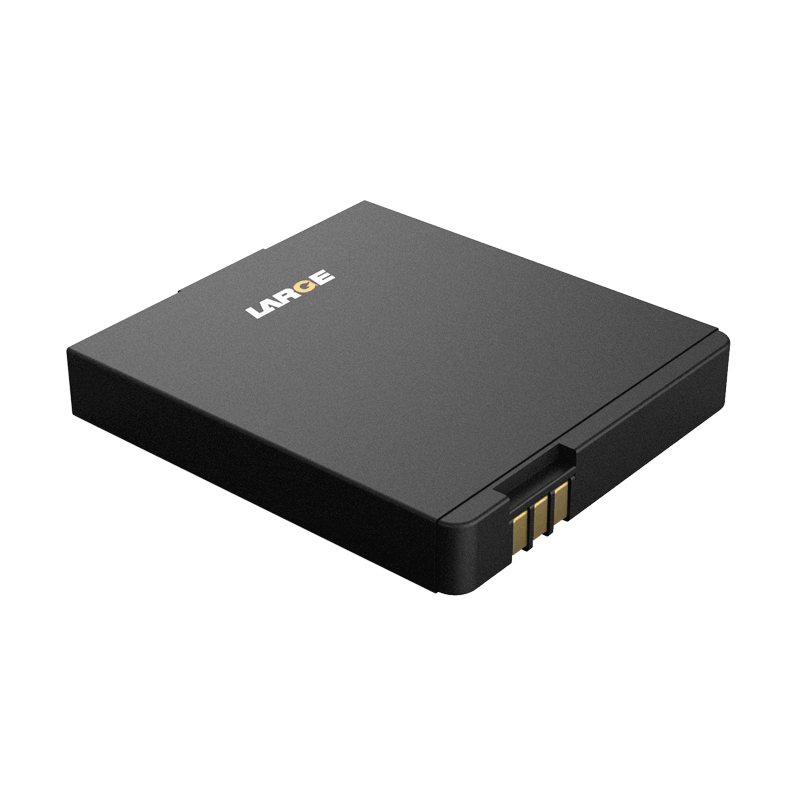

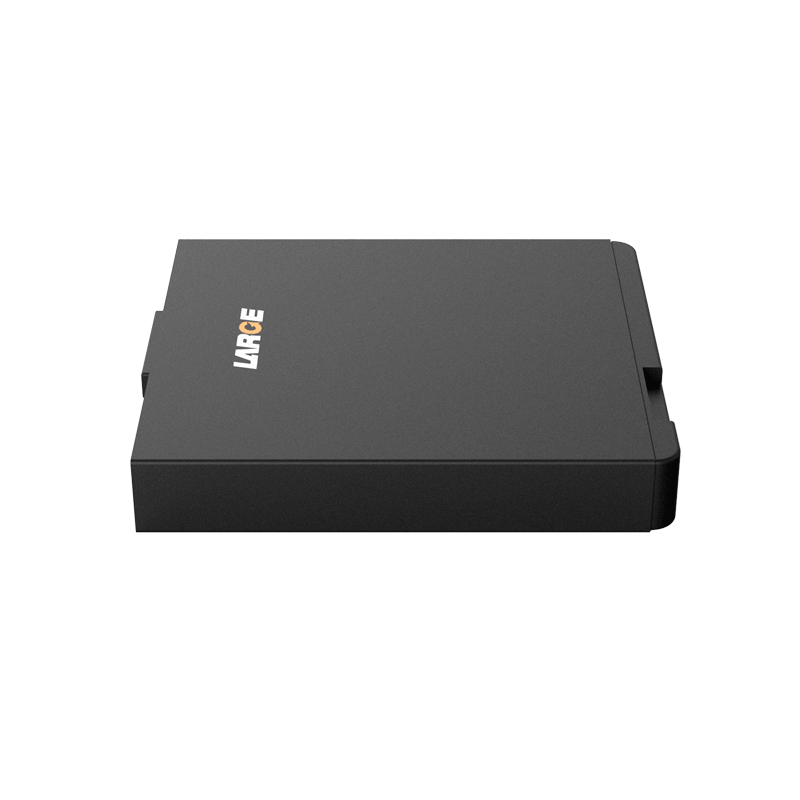

553436 3.7V 780mAh Lithium Polymer Battery for Power System Decoder

Product Detail

Product number: 03DQ0101-05

Cell model:553436-780mAh-3.7V

Battery specification: 553436-1S1P-780mAh-3.7V

Nominal voltage:3.7V

Nominal capacity:780mAh

Charging voltage: 4.2V

Charging current: ≤0.78A

Discharging current: 0.15A

Instant discharging current: 1.6A

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 20g

Product dimension: 40*36.6*6.8mm(Max)

Charging temperature:0~45℃

Discharging temperature: -25~60℃

Storage temperature: -25℃~35℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: power system decoder, handheld tester, portable handheld equipment


Product features

ABS+PC shell increases the reliability and solidity of the battery.

Hardware output: adopt gold-plated shrapnel output mode to increase the conductive reliability.

Battery protection chip: imported protection chip has high stability, high precision monitoring, precise control, and can decrease the security risks.

The battery pack has good security, nice discharge performance and long cycling life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
