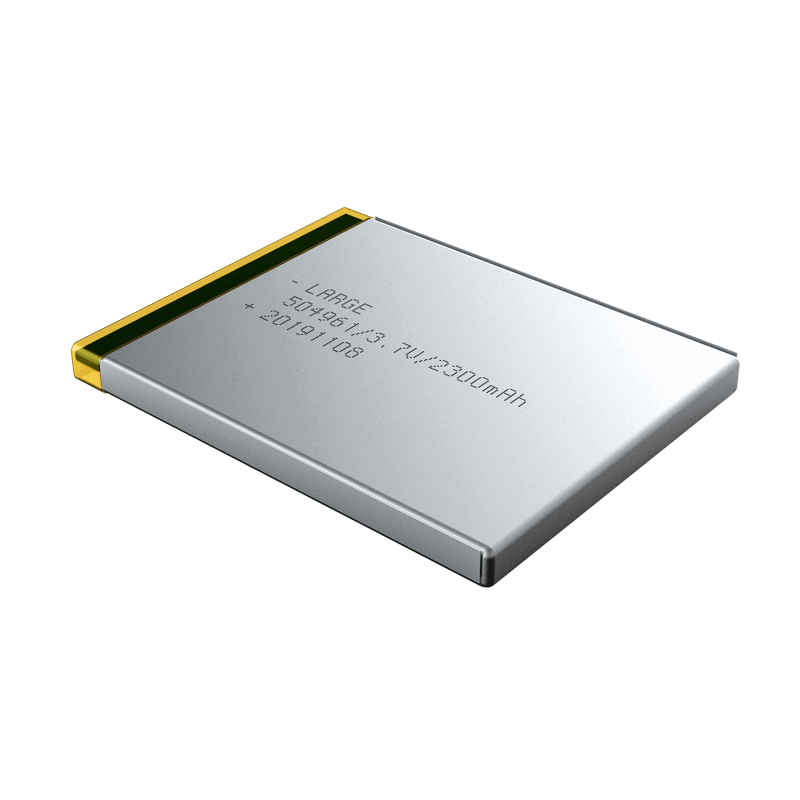

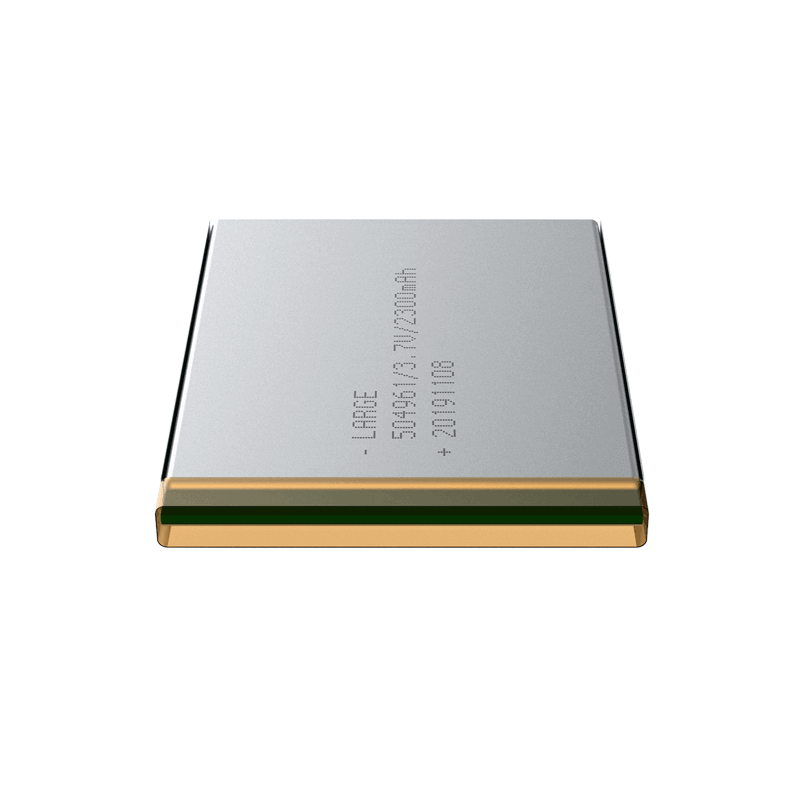

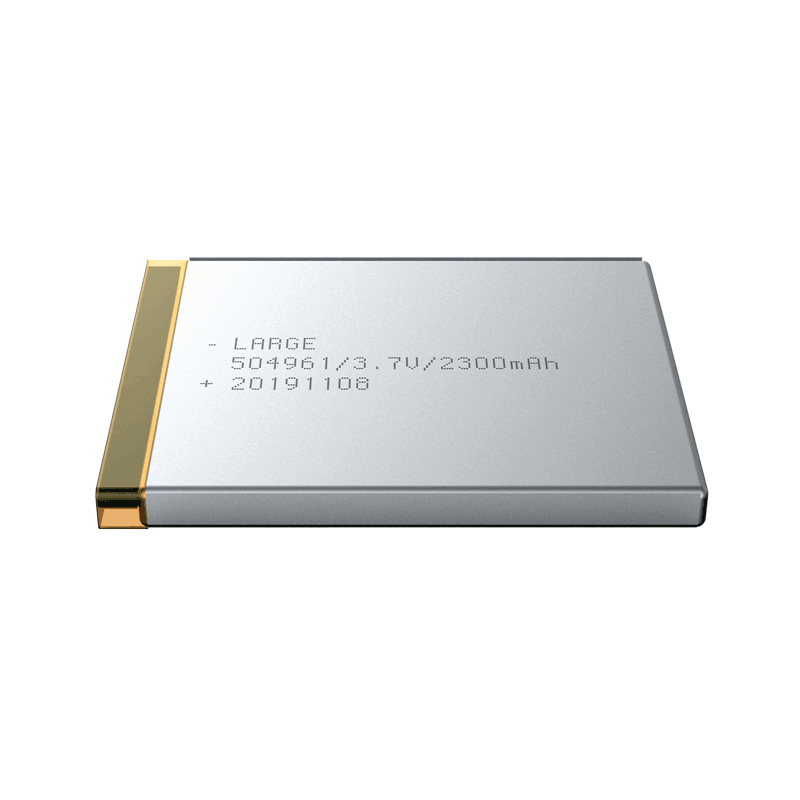

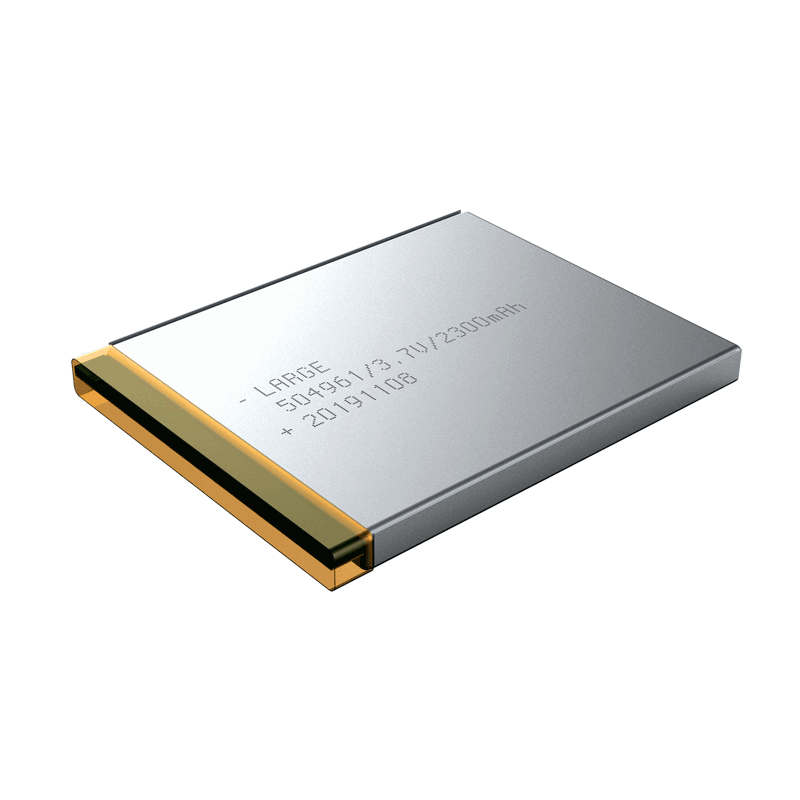

504961 3.7V 2300mAh Lithium Polymer Battery for Respirator

Product Detail

Product number: 04DQ0082-04

Cell model:504961/3.7V/2300mAh

Battery specification: 504961-1S1P/3.7V/2300mAh

Nominal voltage:3.7V

Nominal capacity:2300mAh

Charging voltage: 4.2V

Charging current: ≤1.15A

Discharging current: 0.5A

Instant discharging current: 2.3A

End-off voltage: 3V

Internal resistance: ≤180mΩ

Battery weight: 0.04Kg

Product dimension: 63*49.3*5.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: industrial grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: medical device

*
*
*
