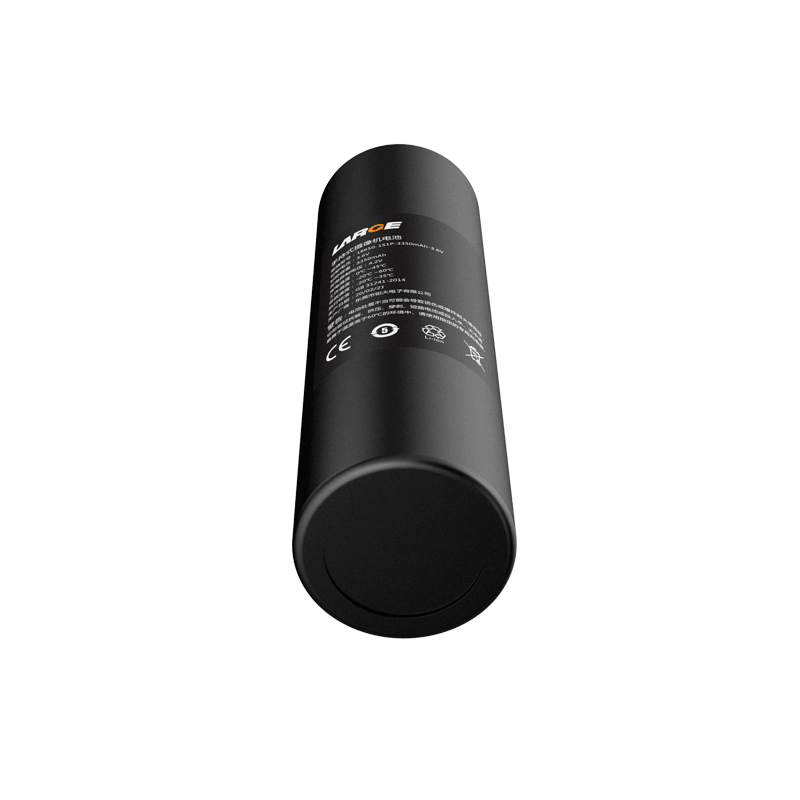

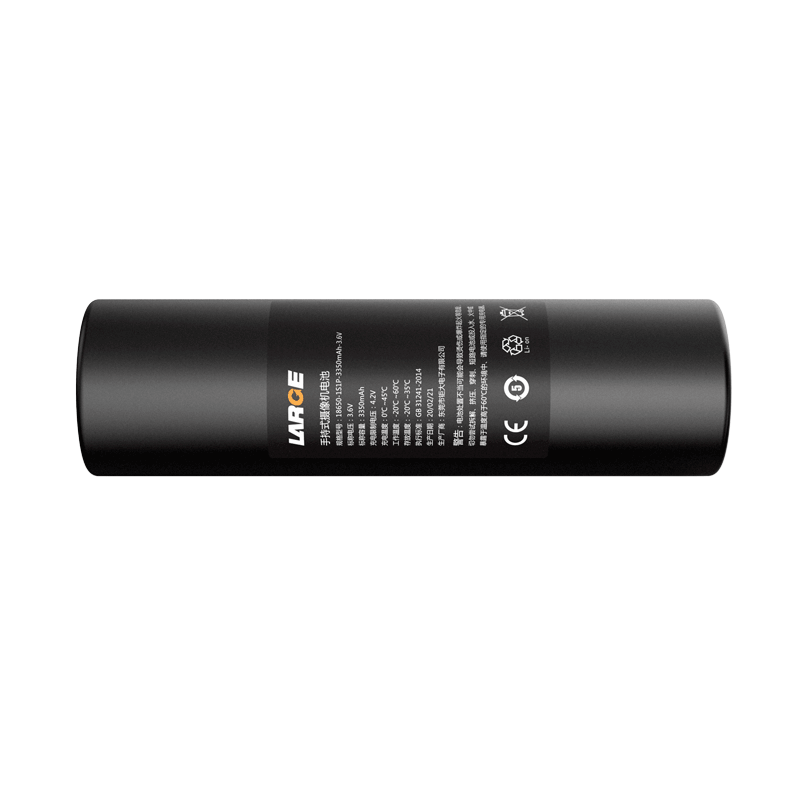

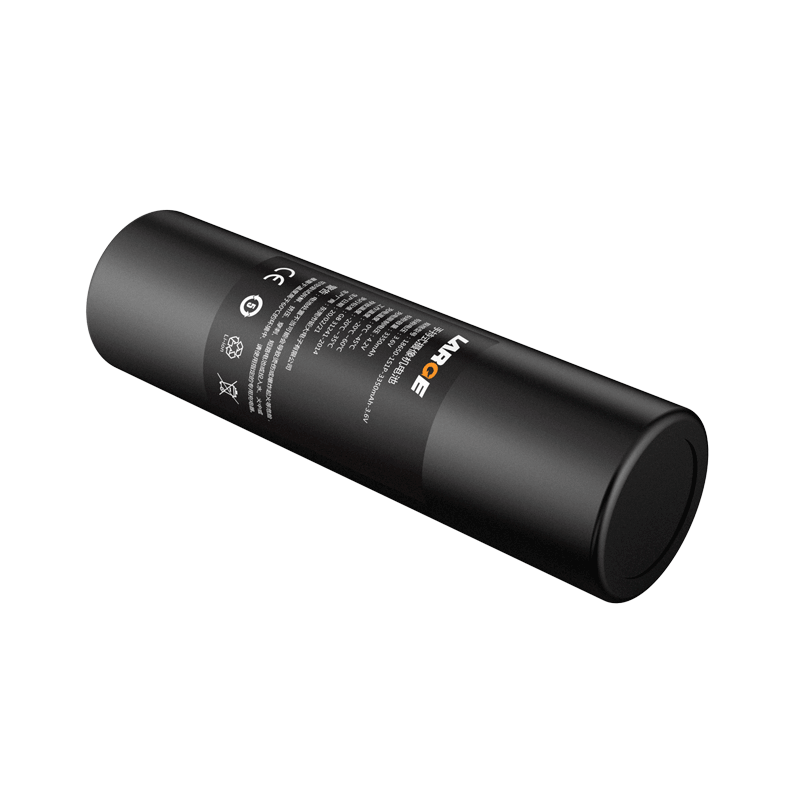

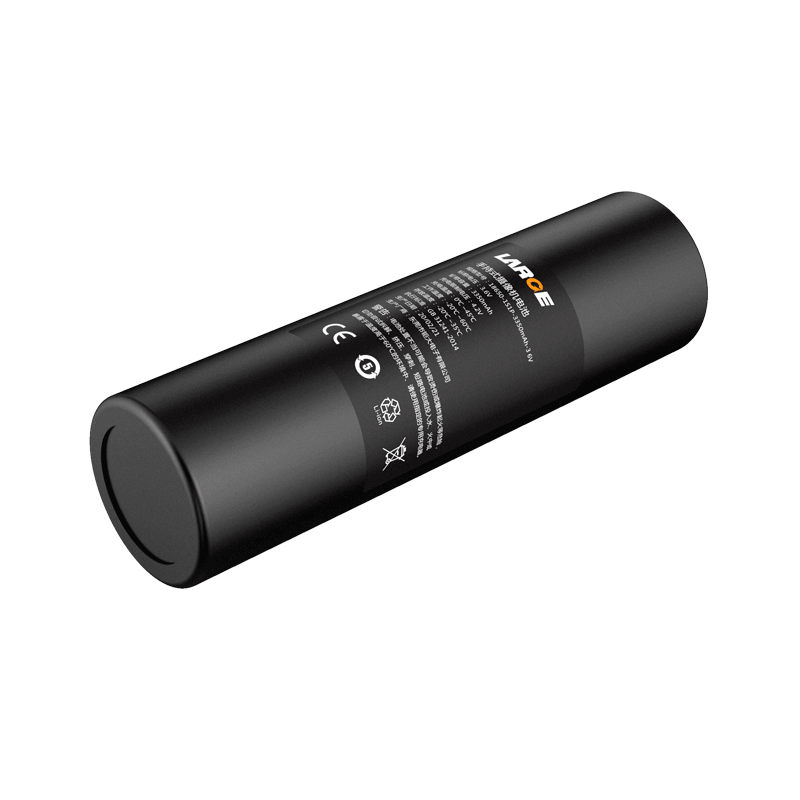

3350mAh 3.6V Lithium ion Battery
Product Number:
01DQ0023-41
Nominal voltage:
3.6V
Nominal capacity:
3350mAh
Battery Configuration:
18650-1S1P
Dimension:
73 × φ19.5mm
Application:
Handheld Vidicon
High Energy Density, Long Cycle Life, Stable Discharge
Product Overview
Electrical Specifications
| Attribute | Parameter |
| Battery Model | 01DQ0023-41 |
| Cell Type | Samsung 18650 3350mAh 3.6V |
| Battery Configuration | 18650-1S1P |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 3350mAh |
| Rated Energy | ≈12.06Wh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.65V |
| Charging Current | ≤1.6A |
| Discharge Current | 670mA |
| Internal Resistance | ≤160mΩ |
Mechanical & Environmental
| Attribute | Parameter |
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Dimensions | 73 × φ19.5mm (Max) |
| Weight | 50g |
| Material | Blue PVC heat shrink film |
| Communication Protocol | TI-SMBus |
| Protection Rating | — |
| Protection System | Short circuit, overcharge, over-discharge, over-temperature, overcurrent, ESD protection |
Application Background
This battery solution is designed for handheld video cameras and portable surveillance devices, widely used in security patrol, mobile law enforcement, and outdoor video recording scenarios.
These devices require long-duration continuous recording and stable power output, with strict demands on battery runtime, discharge stability, and low-temperature performance.
Project Challenges
- Requires 6–10 hours of continuous recording for handheld operation
- Simultaneous video recording and data storage cause fluctuating power loads
- Outdoor use in low-temperature environments (-20°C) affects discharge performance
- Compact device design limits battery size and weight
- Frequent charge/discharge cycles require strong cycle life and consistency
Customized Battery Solution
- 18650-1S1P configuration: 3350mAh high energy density design for lightweight and long endurance
- JST connector output: ensures reliable connection and easy integration with handheld devices
- Smart protection system: built-in overcharge, over-discharge, overcurrent, short circuit, over-temperature, and ESD protection
- TI-SMBus intelligent management: real-time monitoring of voltage, capacity, and temperature for accurate power control
- Wide-temperature performance: stable operation from -20°C to 60°C for outdoor environments
Application Results
- Supports 6–10 hours of continuous recording for extended field operation
- Stable output during high-load recording, effectively reducing voltage fluctuation
- Lightweight design improves handheld comfort and portability
- Enhanced low-temperature adaptability and cycle stability, extending overall device lifespan
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
