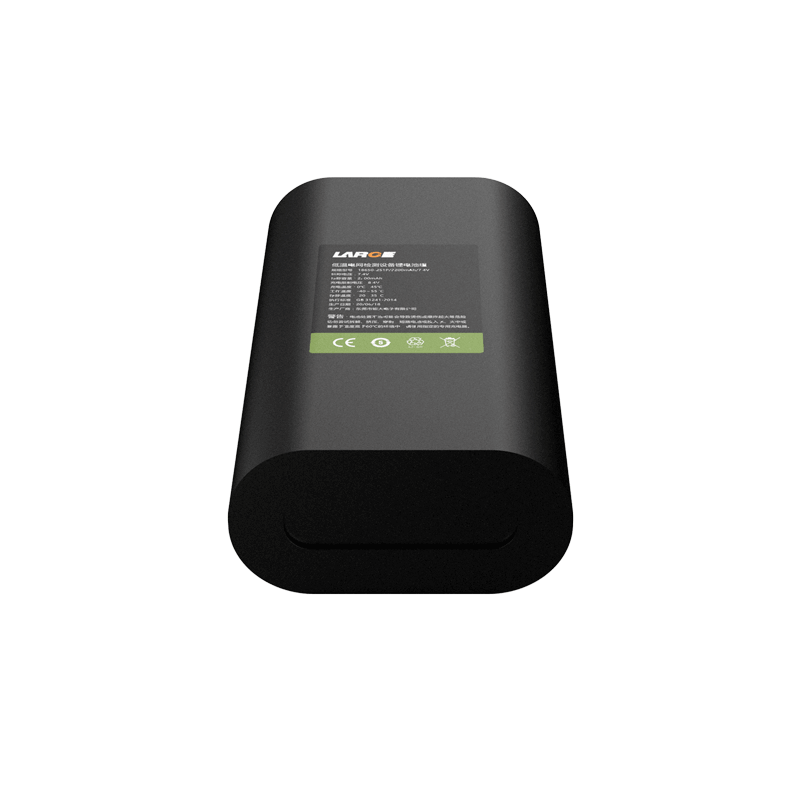

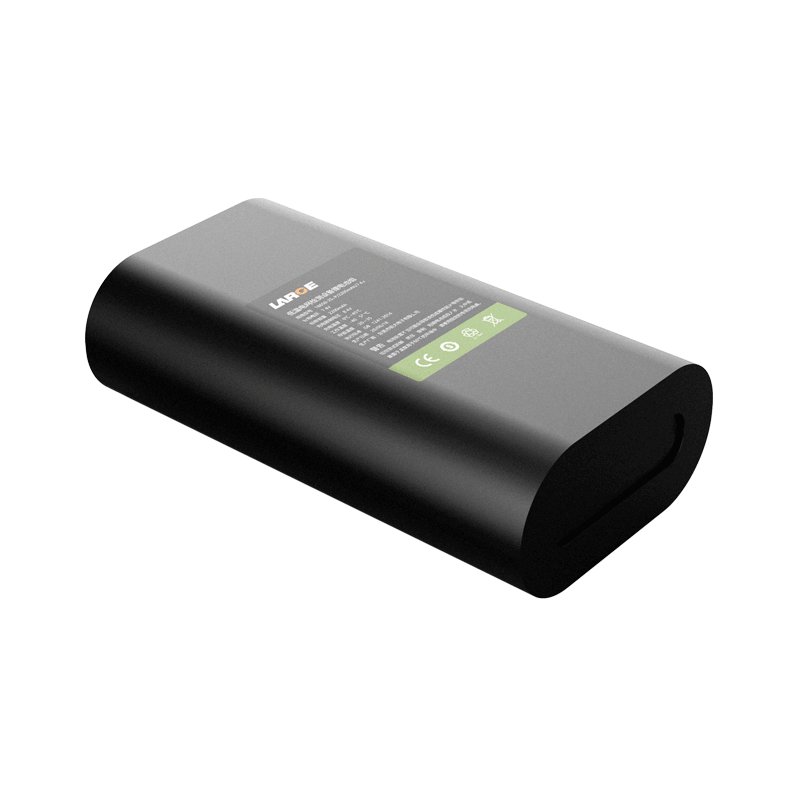

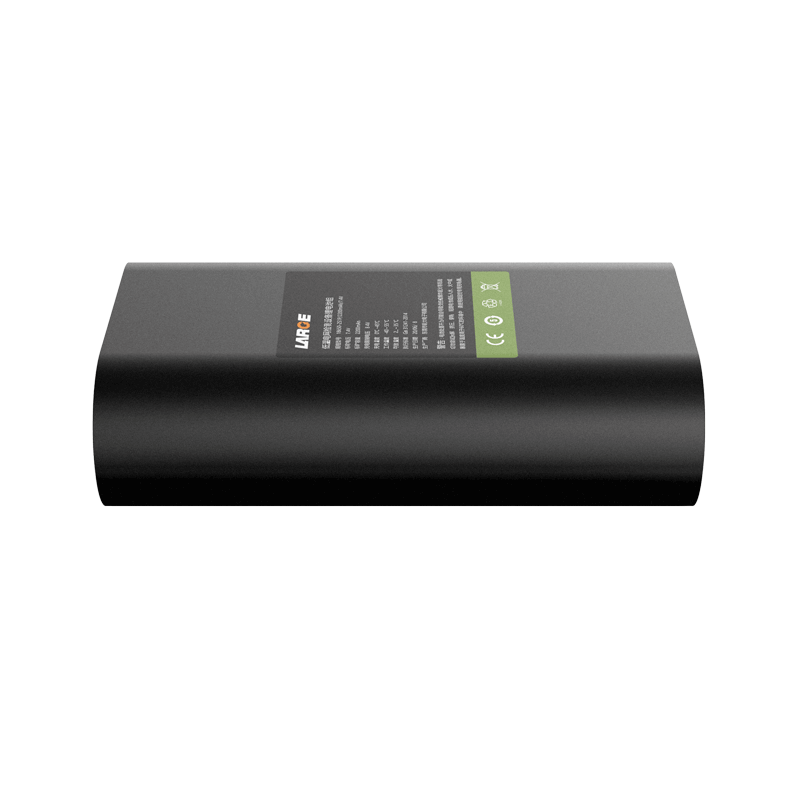

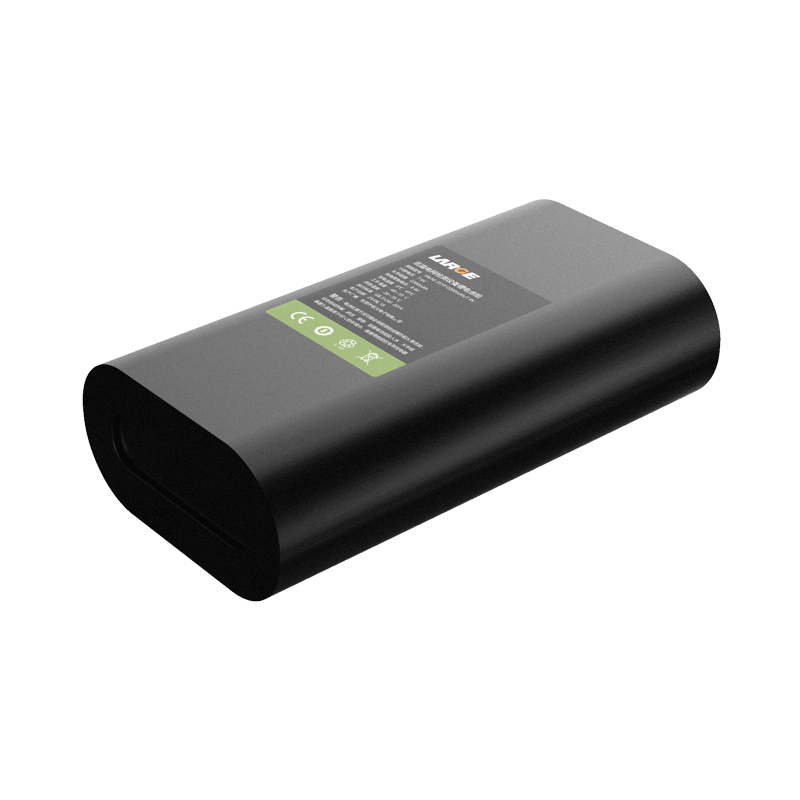

18650 7.4V 2200mAh Low Temperature Battery Ternary Battery for Power Grid Detection Equipment

Product Detail

Product number: 34AQ018-05

Cell model:18650/2200mAh/3.7V

Battery specification: 18650-2S1P/2200mAh/7.4V

Nominal voltage:7.4V

Nominal capacity:2200mAh

Charging voltage: 8.4V

Charging current: ≤1100mA

Discharging current: 2200mA

Instant discharging current: 3A

End-off voltage: 4.8V

Internal resistance: ≤280mΩ

Battery weight: 110g

Product dimension: 67×37.5×19mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: power grid detection equipment

*
*
*
