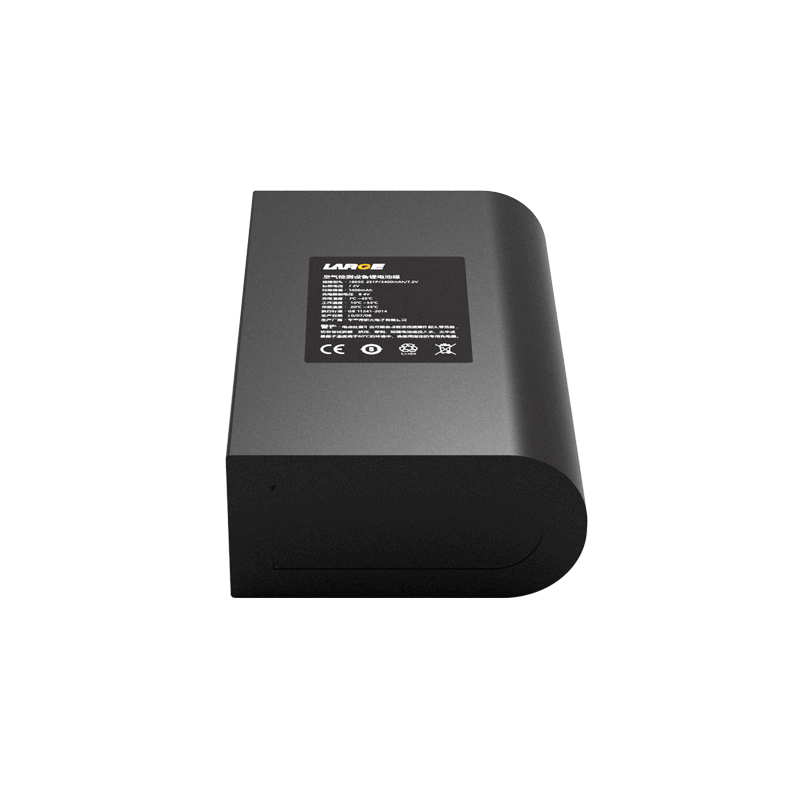

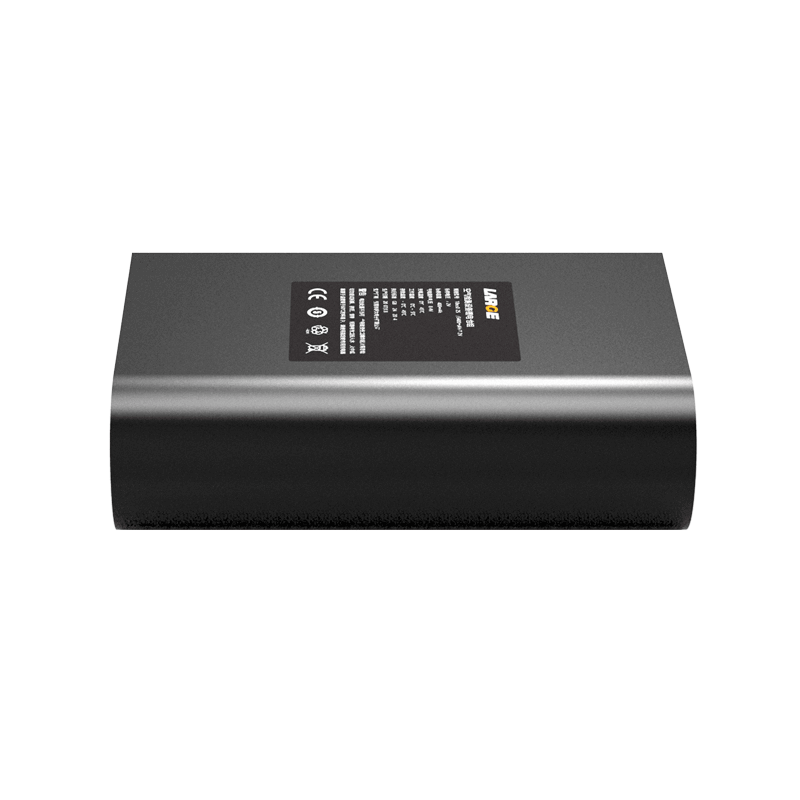

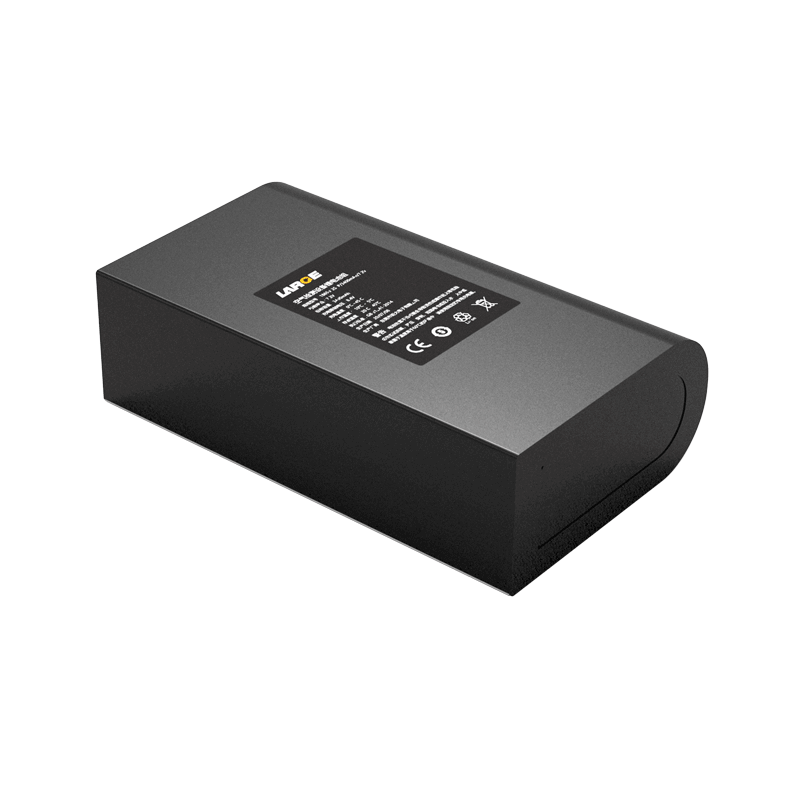

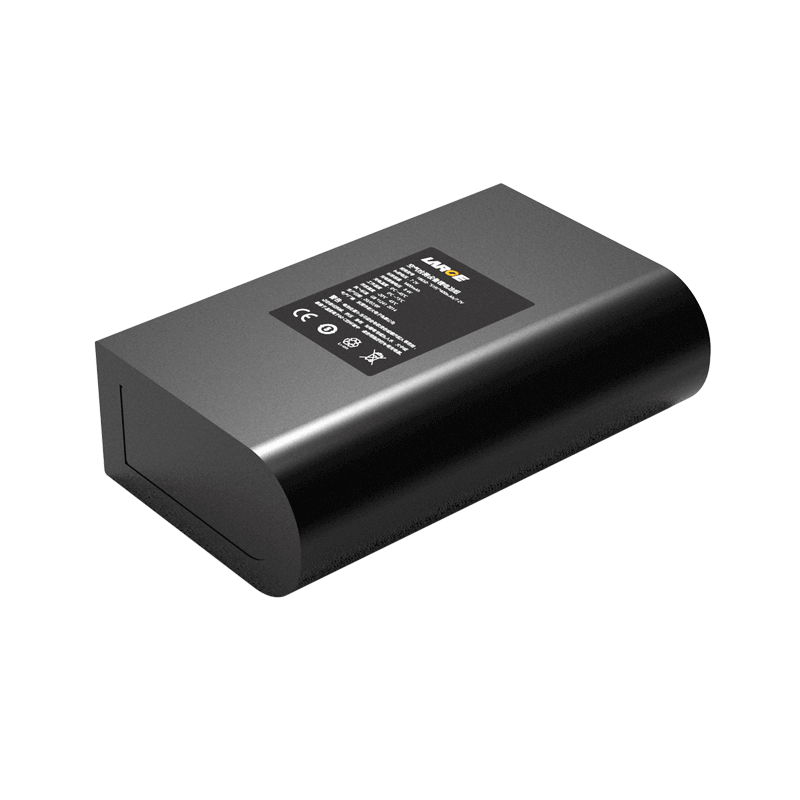

18650 7.2V 3400mAh Samsung Lithium Battery Pack For Air Detection Equipment

18650 7.2V 3400mAh Samsung Lithium Battery Pack For Air Detection Equipment
18650 7.2V 3400mAh Samsung Lithium Battery Pack For Air Detection Equipment
18650 7.2V 3400mAh Samsung Lithium Battery Pack For Air Detection Equipment
18650 7.2V 3400mAh Samsung Lithium Battery Pack For Air Detection Equipment

Product Detail

Product number: 41DZ009-01

Cell model:18650-3.6V-3400mAh

Battery specification: 18650-2S1P/3400mAh/7.2V

Nominal voltage:7.2V

Nominal capacity:3400mAh

Charging voltage: 8.4V

Charging current: ≤1.7A

Discharging current:1.5A

Instant discharging current: 2A

End-off voltage: 6V

Internal resistance: ≤150mΩ

Battery weight: 120g

Product dimension: 69*42*19mm(max)

Charging temperature:0~45℃

Discharging temperature: -10~55℃

Storage temperature: -20~45℃

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application field: industrial air detection equipment


Product features

1.The maximum sustainable discharge of the battery is 2A.

2.The battery contained with imported protection chip and imported MOS with 10KNTC, which can display the temperature change in real time and eliminate the potential safety hazard to the maximum extent.

3.Imported high capacity and reliable cell is adopted.

4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
