Custom Lithium ion Battery Pack

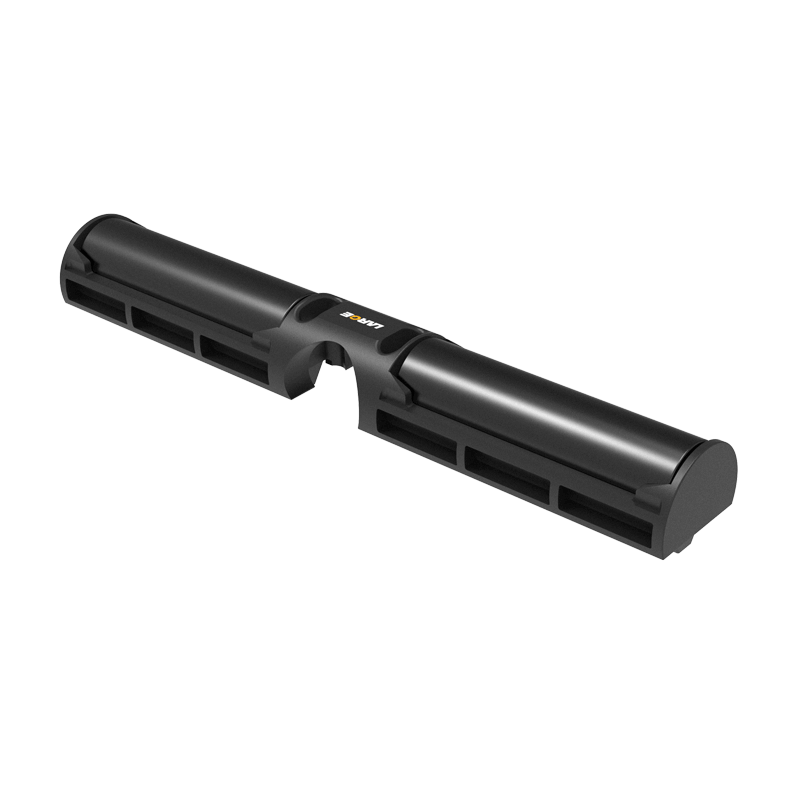

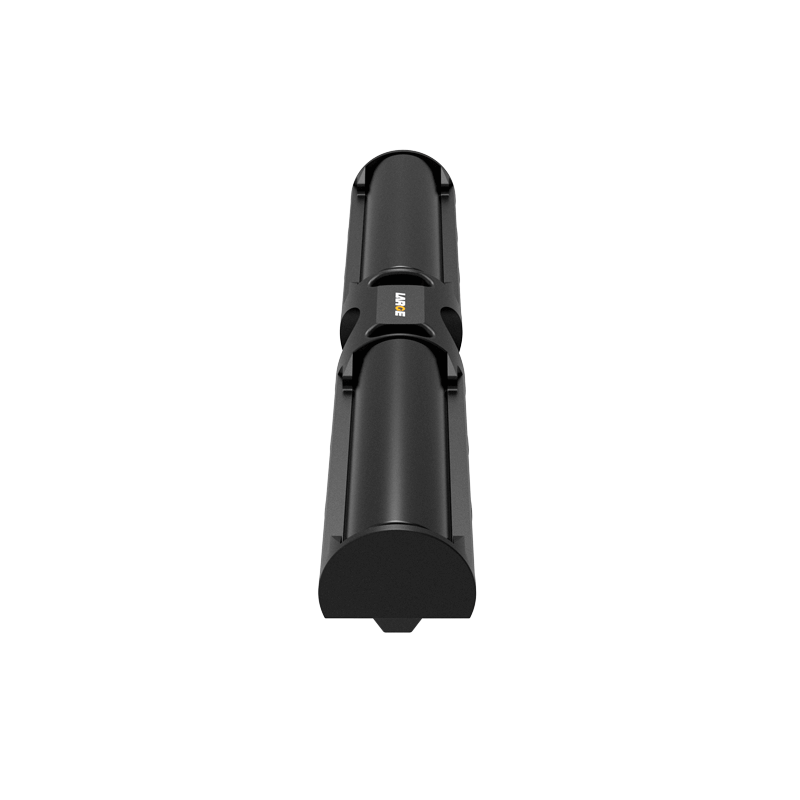

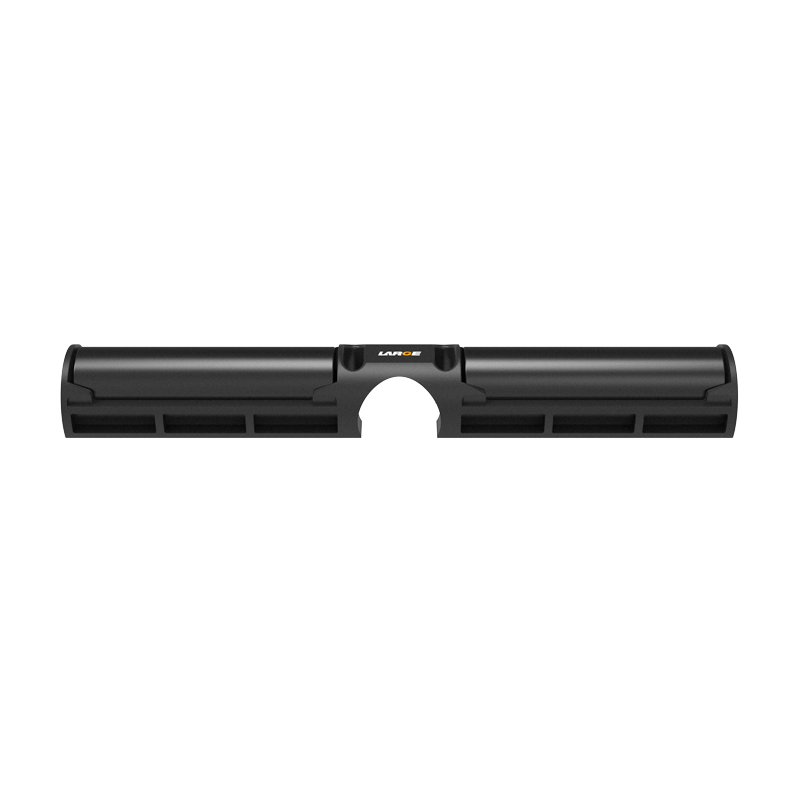

18650 3.6V 6600mAh Samsung Lithium Battery For IR Night vision device

Product Detail

Product number: 36AQ517-02
Cell model:18650/3.6V/3350mAh(35E)
Battery specification: 18650-1S2P/3.6V/6600mAh
Nominal voltage:3.6V
Nominal capacity:6600mAh
Charging voltage: 4.2V
Charging current: ≤2A
Discharging current: 1.5A
Instant discharging current: 3A,3~4S
End-off voltage: 2.8V
Internal resistance: ≤180mΩ
Battery weight: 120g
Product dimension: 23.4*26.9*168.3mm
Charging temperature:0~45℃
Discharging temperature: -10~60℃
Storage temperature: -20~23℃ (less than 12 month)
Battery case: PA66+30%GF
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection.
Application field: Portable industrial equipment

Product features
1.Imported cell: The battery pack has good security and long cycle life.
2.Special shape design: The battery can be customized for various special structures, and the battery shell is removable and easy to replace.
3.The battery adopts anti drop design.
