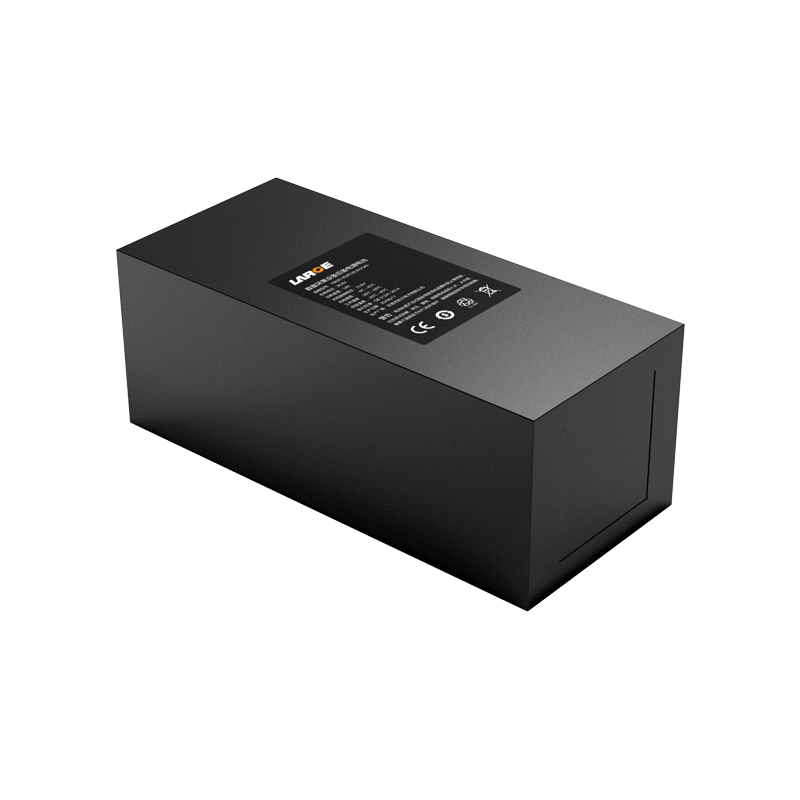

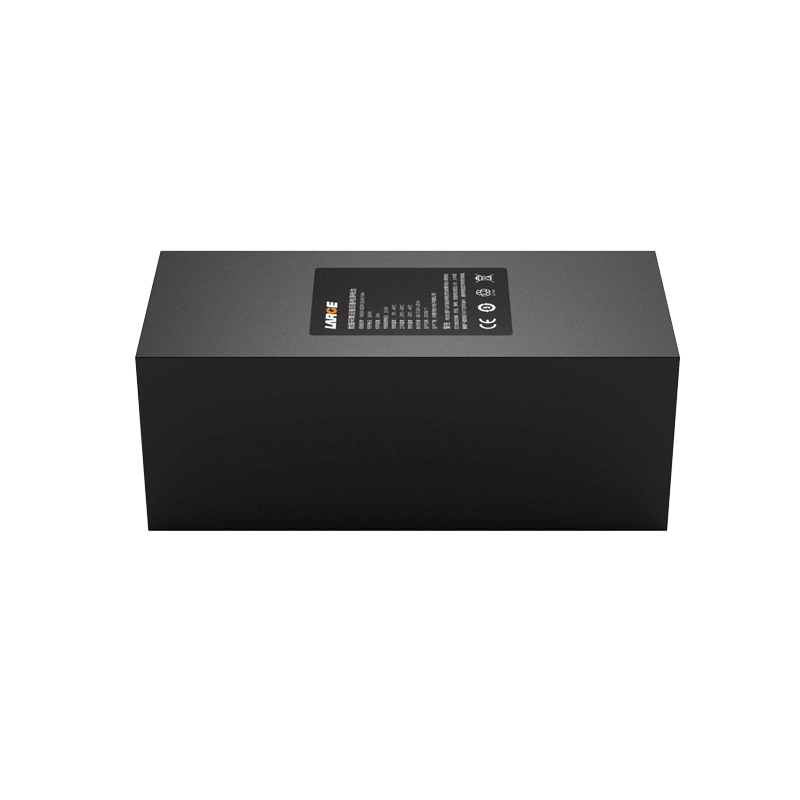

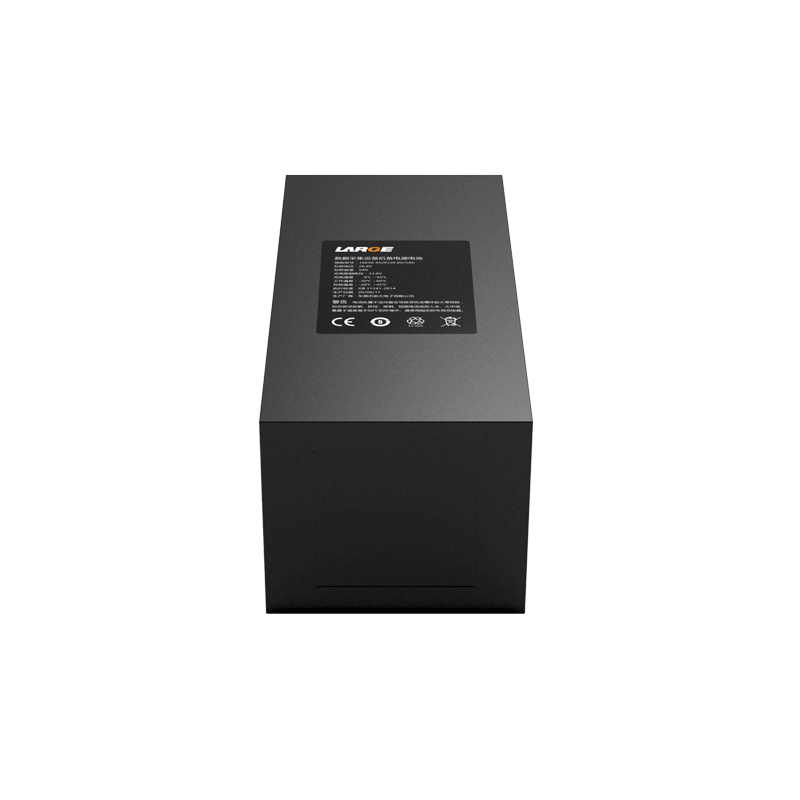

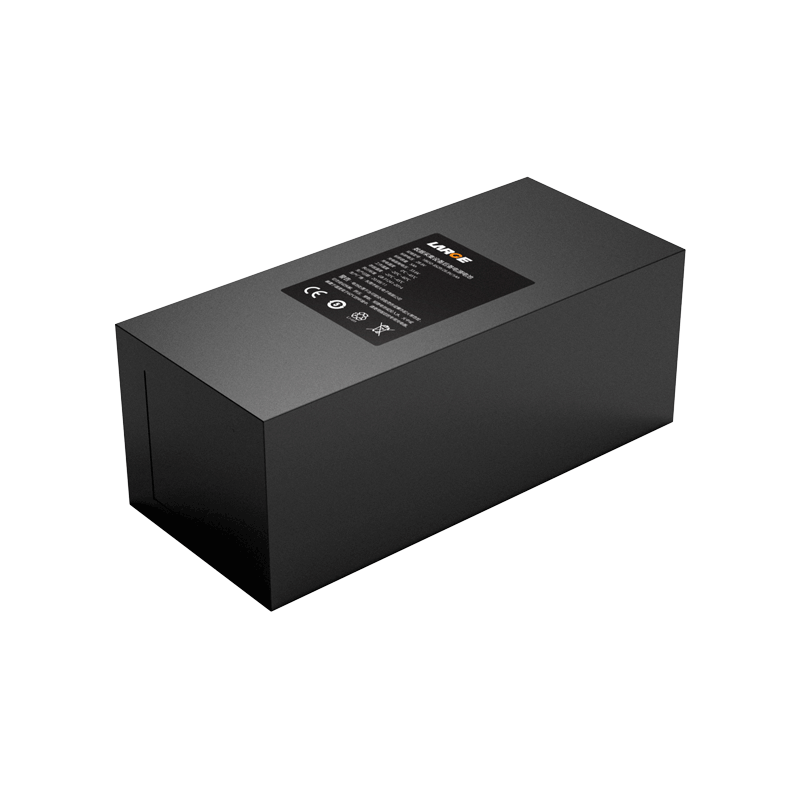

28.8V 5AH Samsung Battery Ternary Battery for DAE(Data Acquisition Equipment) Back-up Source

Product Detail

Product number: 33DZ014-01
Cell model:18650/3.6V/2.5Ah
Battery specification: 18650-8S2P/28.8V/5Ah
Nominal voltage:28.8V
Nominal capacity:5Ah
Charging voltage: 33.6V
Charging current: ≤3A
Discharging current: 20A
Instant discharging current: 30A
End-off voltage: 20V
Internal resistance: ≤150mΩ
Battery weight: 1.5g
Product dimension: 166*65*75mm (Max)
Charging temperature:0~45℃
Discharging temperature: -20~60 ℃
Storage temperature: -20~45℃
Temperature protection: 65℃±5℃
Battery case: PVC
Communication: 485 MOSBUS protocol
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, temperature protection, equilibrium, anti-reverse connection.

Product features
1. Low self-discharge
2. The battery pack has good security and long cycle life.
3. The battery pack has 485 communication.
4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
