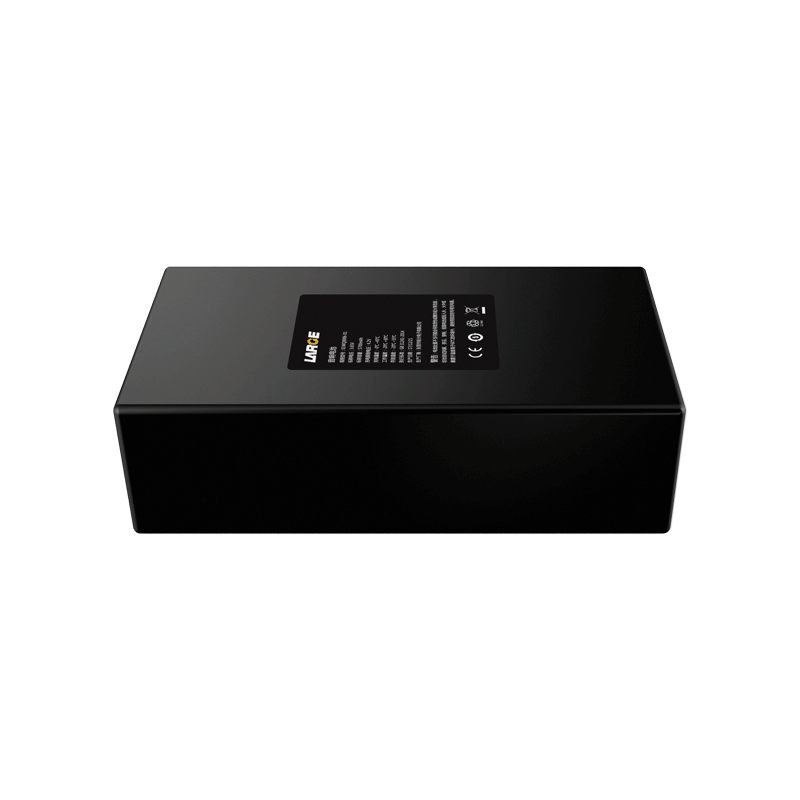

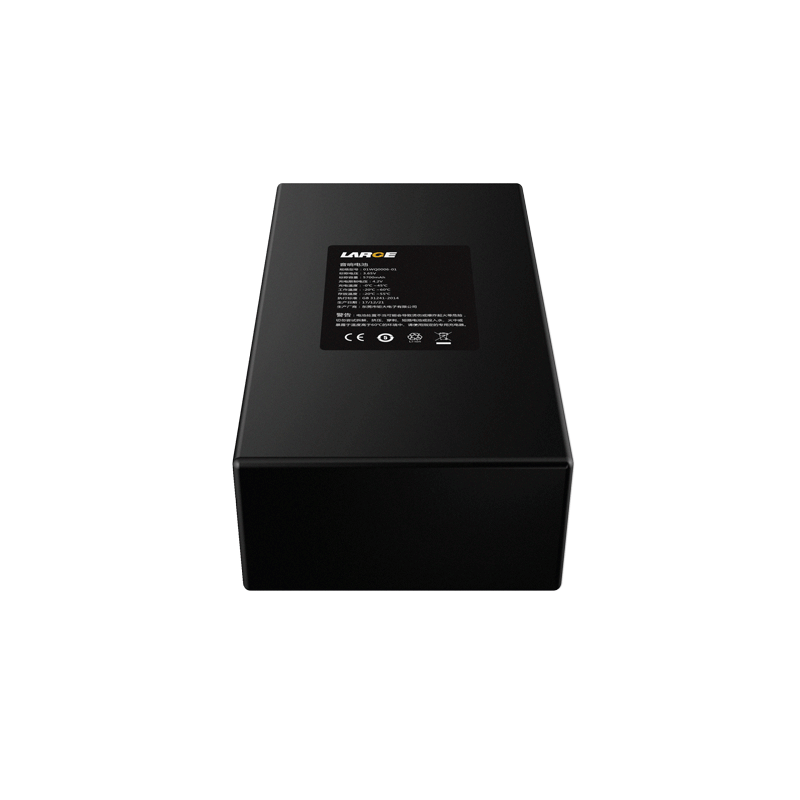

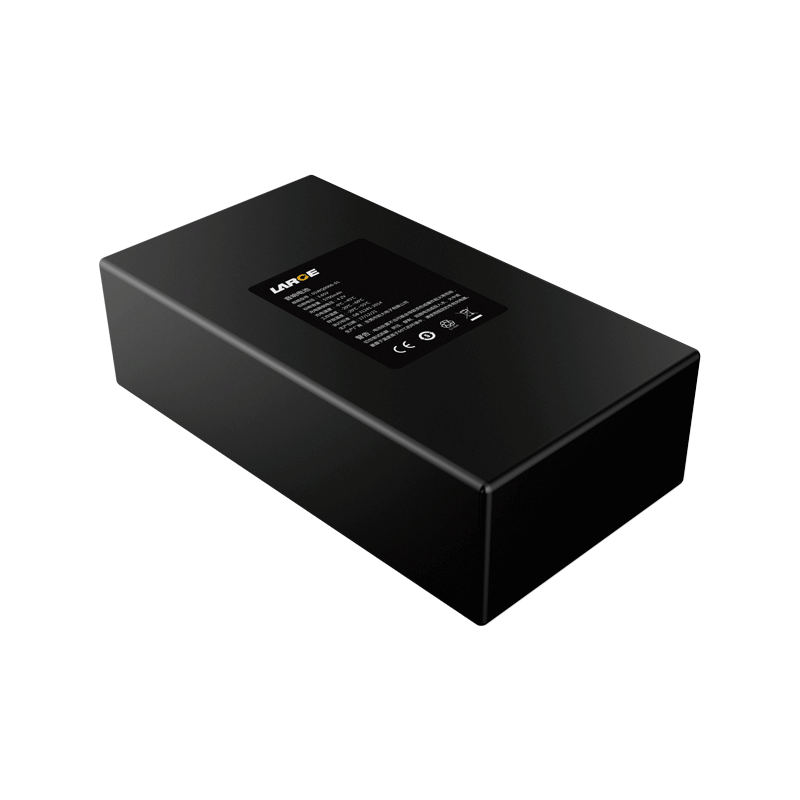

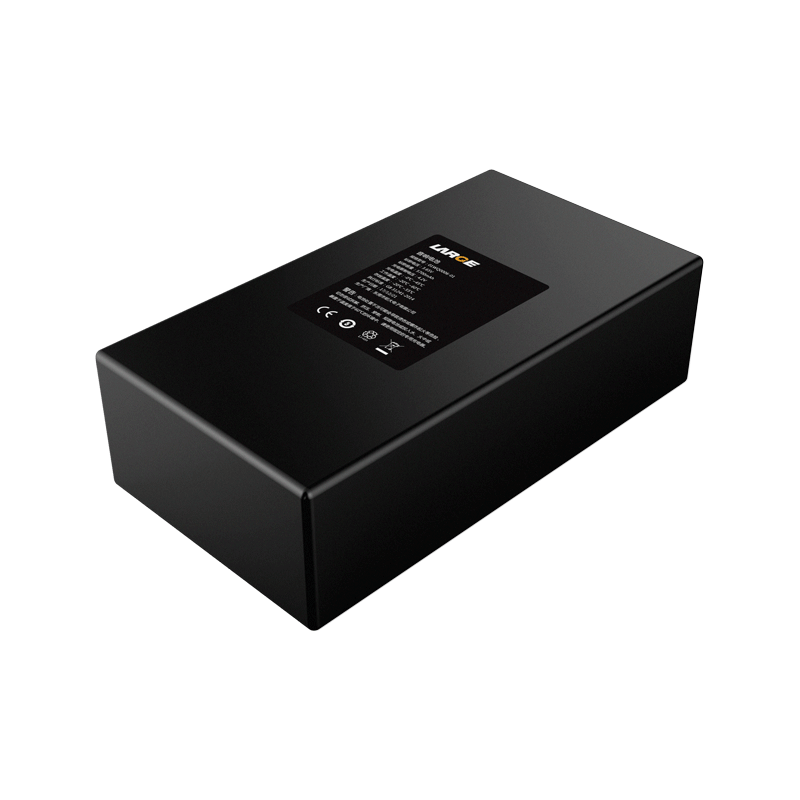

Custom Lithium ion Battery Pack

18650 3.6V 5700mAh Lithium Ion Battery Samsung Battery for Sound System

  • Model number:01WQ0006-01

  • Nominal voltage:3.7V

  • Nominal capacity:5700mAh

  • Battery cell:18650/2850mAh/3.65V

  • Dimension:70*38*20 mm

  • Application:sound system

Product Detail

Product number: 01WQ0006-01

Cell model:18650/2850mAh/3.65V

Battery specification: 18650-1S2P/5700mAh/3.65V

Nominal voltage:3.65V

Nominal capacity:5700mAh

Charging voltage: 4.2V

Charging current: ≤2100mA

Discharging current: ≤7000mA

End-off voltage: 2.5V

Internal resistance: ≤150mΩ

Battery weight: about 110g

Product dimension: 70*38*20 mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery package: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, etc.

Application field: battery of sound system

*
*
*
