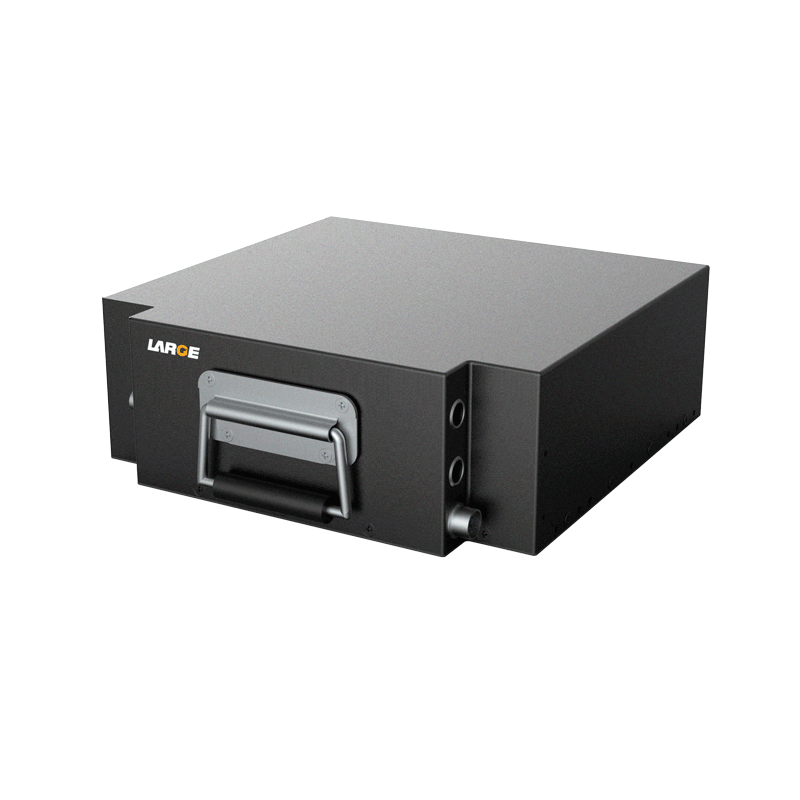

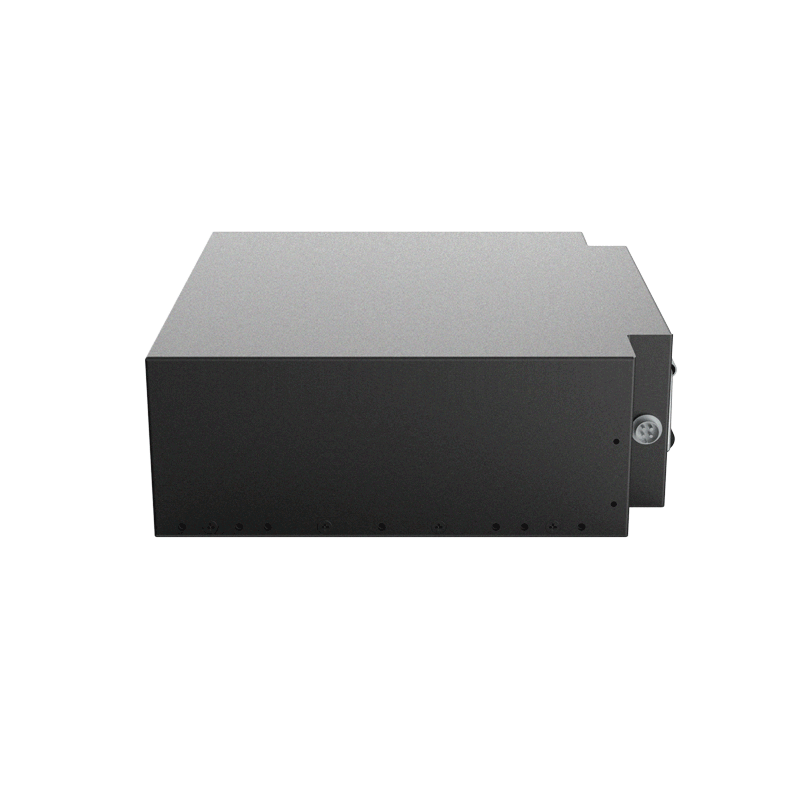

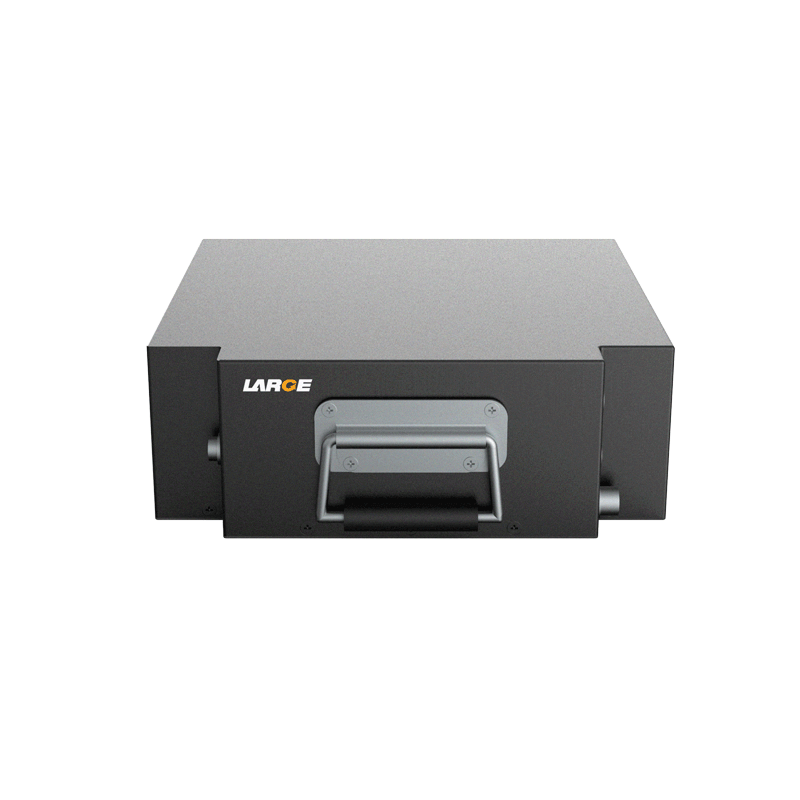

26650 25.6V 31Ah LiFePO4 Battery for Guiding Robot

Product Detail

Product number: 04EQ029-17

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650/8S9P/25.6V/31Ah

Nominal voltage:25.6V

Nominal capacity:31Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 30A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 10kg

Product dimension: 280×275×100(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~40℃

Temperature protection: yes

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection and equilibrium.

Application field: AGV, robot, guiding robot


Product features

1. Dustproof and shockproof: make housing by bending cold rolling steel plate and fill in the shockproof structure inside the housing to satisfy the requirements of dustproof and shockproof.

2. Waterproof aviation connector: adopt waterproof aviation connector, which is safe and reliable.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. Super low temperature working: it can discharge at -20℃.


*
*
*
