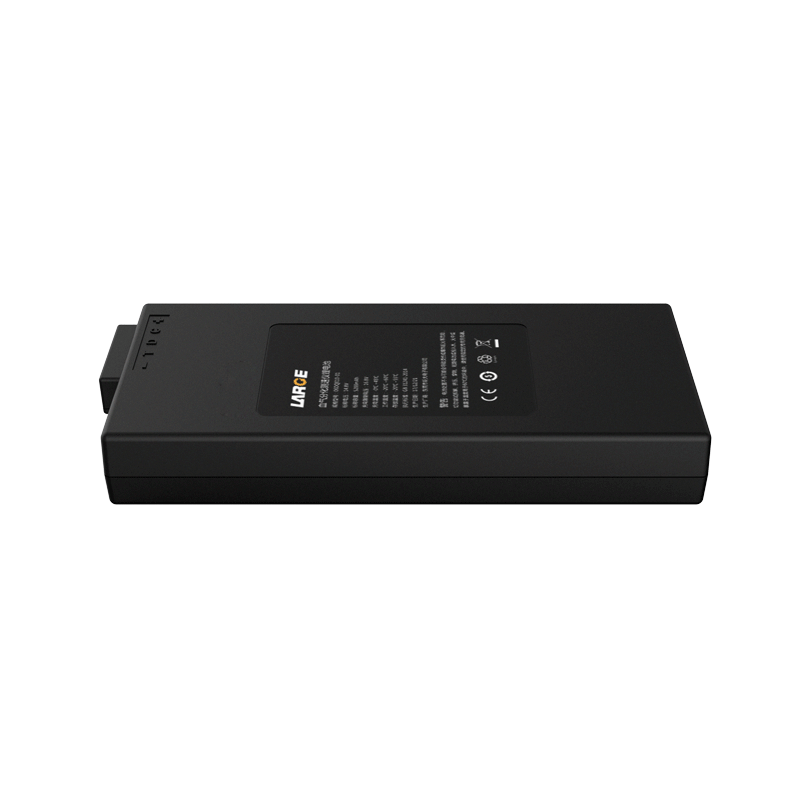

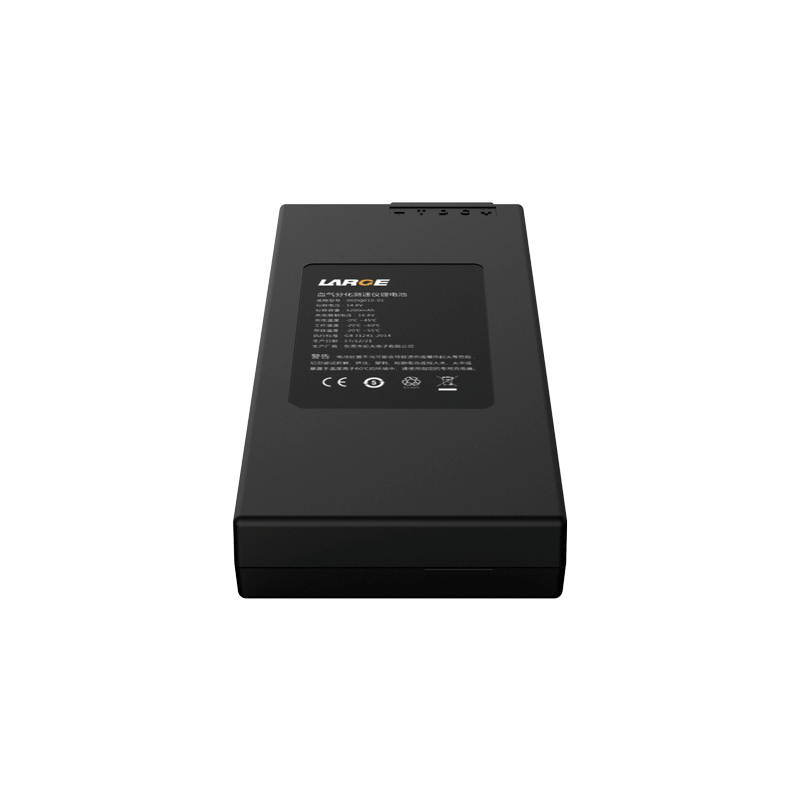

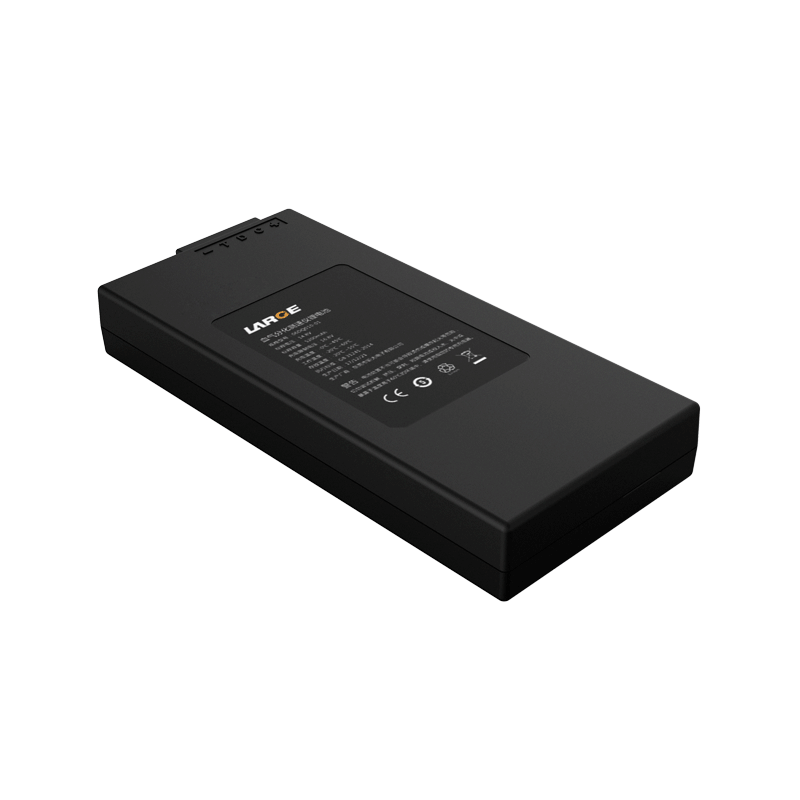

18650 14.8V 5200mAh Lithium Ion Battery Samsung Battery for Blood Gas Analysis Tester

Product number: 06DQ010-01

Cell model：18650/3.6V/2600mAh

Battery specification: 18650-4S2P/14.8V/5200mAh

Nominal voltage：14.8V

Nominal capacity：5200mAh

Charging voltage: 16.8V

Charging current: ≤2.5A

Discharging current: 2.5A

Instant discharging current: 5A

End-off voltage: 5.4V

Internal resistance: ≤350mΩ

Battery weight: 420g

Product dimension: 166.5*74.5*23mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35℃

Battery case: ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, power communication function, etc.

Application field: blood gas analysis tester/monitor/medical

Product features

Hardware output terminal: adopts gold-plated shrapnel output mode to increase conductive reliability.

Battery interface adopts 7PIN tsa0-03007-12t2 connector for easy disassembly and assembly.

Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack has good security, nice performance and long cycle life with Samsung cells.

The battery pack has high cycle retention rate, which conforms to the principle of low carbon, energy conservation and environmental protection.
