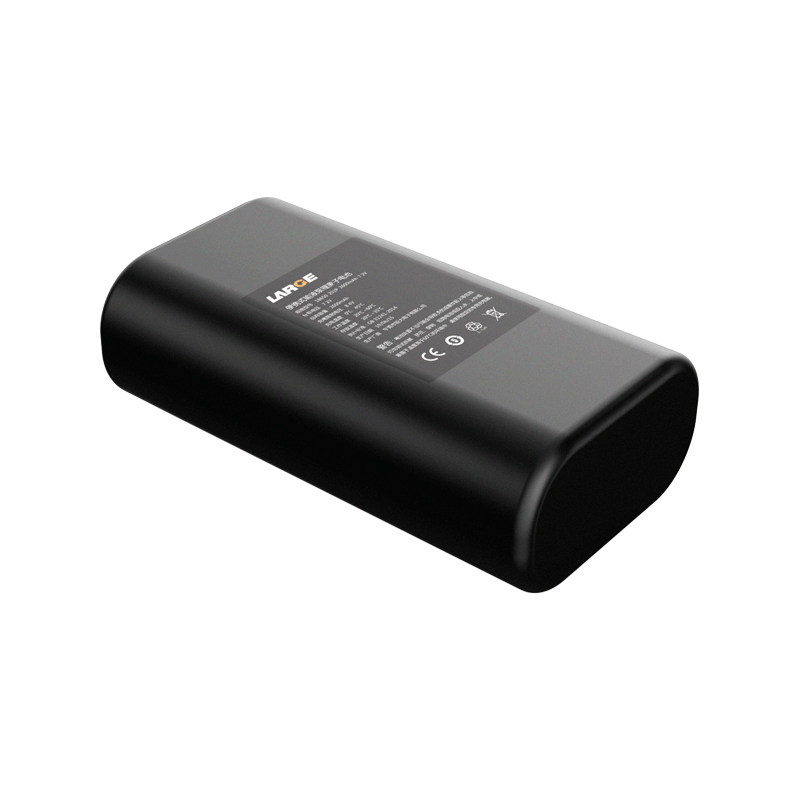

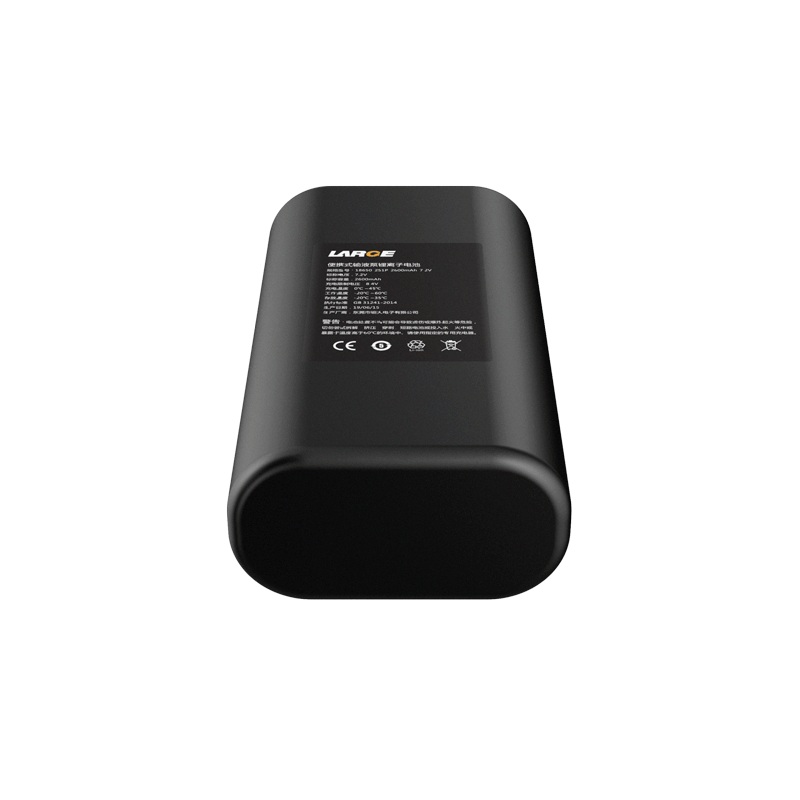

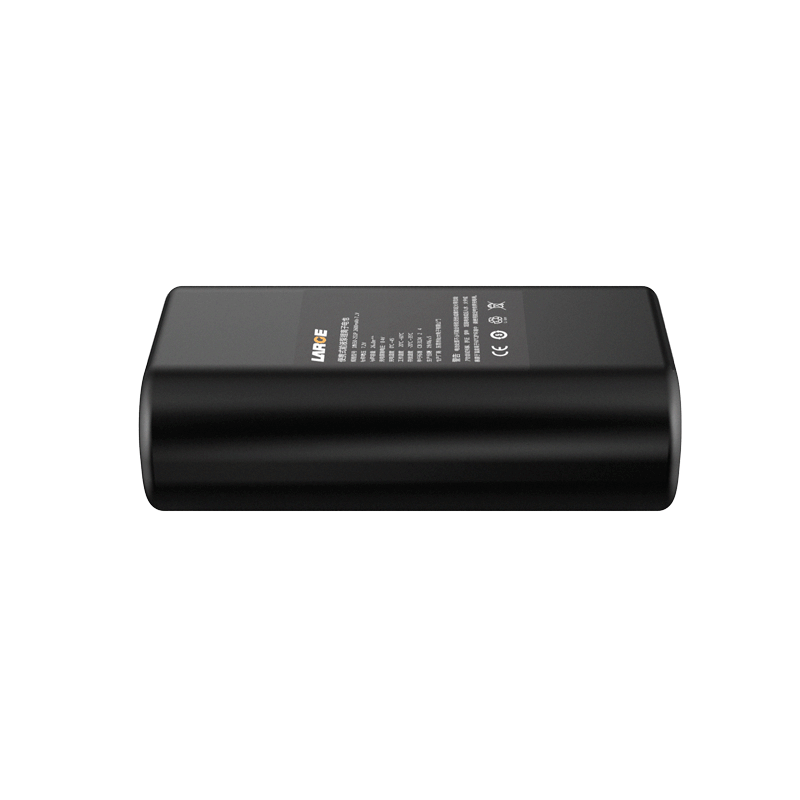

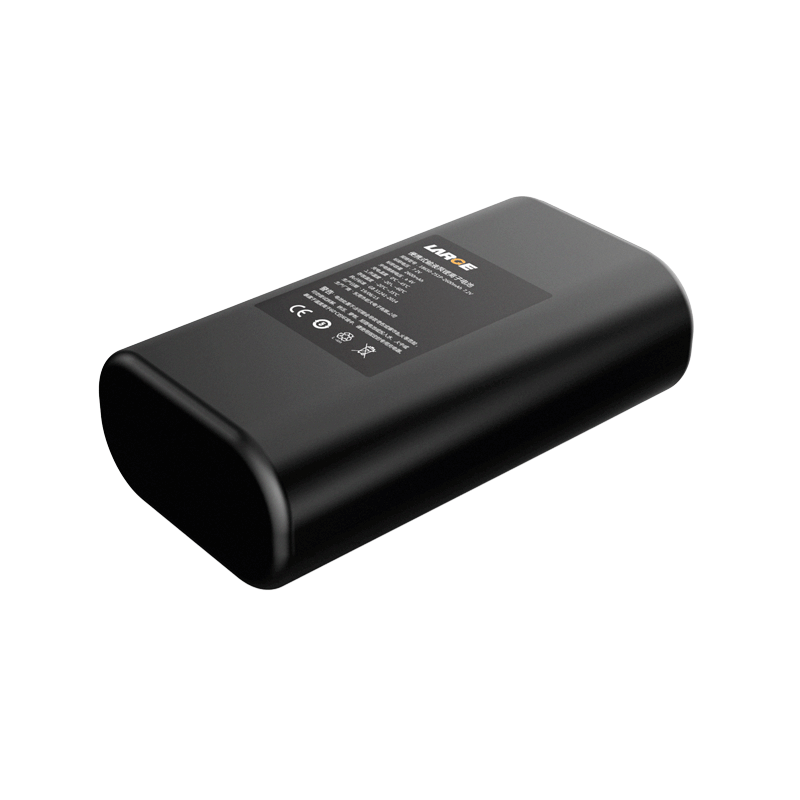

18650 7.2V 2600mAh Lithium Ion Battery for Portable Infusion Pump

Product Detail

Product number: 01WQ0030-03T

Cell model:18650-2600mAh-3.6V

Battery specification: 18650-2S1P-2600mAh-7.2V

Nominal voltage:7.2V

Nominal capacity:2600mAh

Charging voltage: 8.4V

Charging current: ≤1.2A

Discharging current: 0.5A

Instant discharging current: 2.5A

End-off voltage: 6.0V

Internal resistance: ≤230mΩ

Battery weight: 100g

Product dimension: 67.5*37.5*19.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: no shell, PVC heat shrinkable film package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable infusion pump

Product features

1. It has blue PVC heat-shrinkable film package, which is simple and reliable, and it is easy to install.

2. Connector plug outlet: SMR plug output mode is adopted to increase the conductive reliability of the plug.

3. Battery protection chip: adopt Japanese precise management chip with high stability, high precision, accurate voltage control, precise current monitoring and control. It has maximum elimination of safety risks.

4. The battery pack has good security, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
