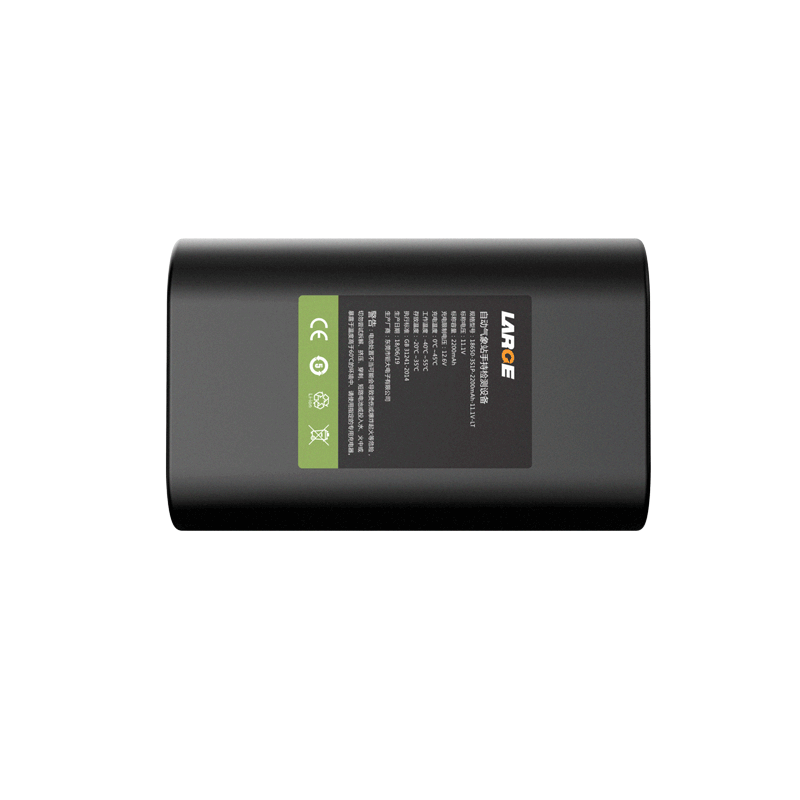

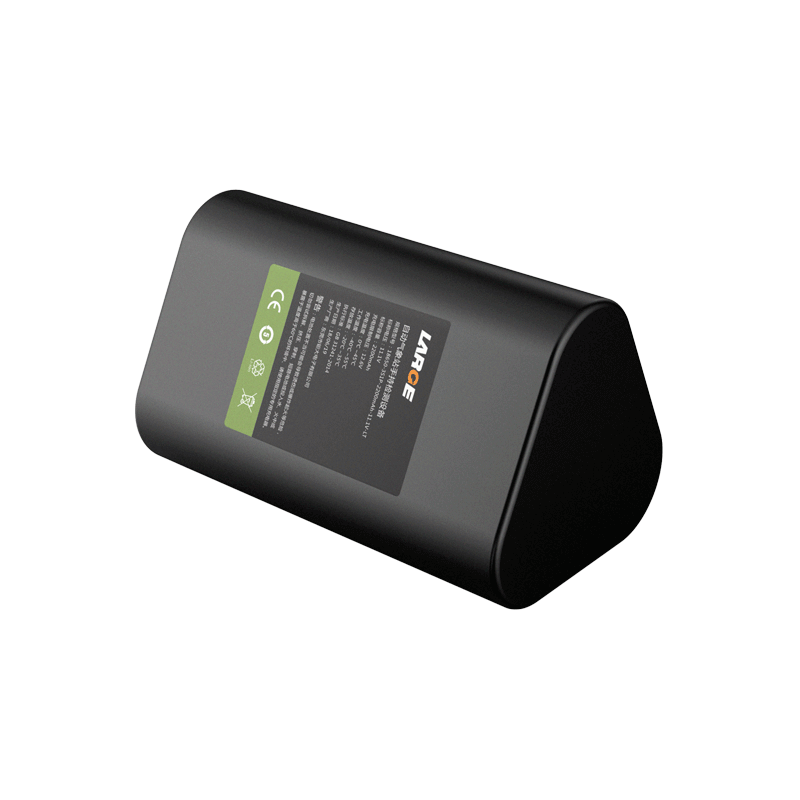

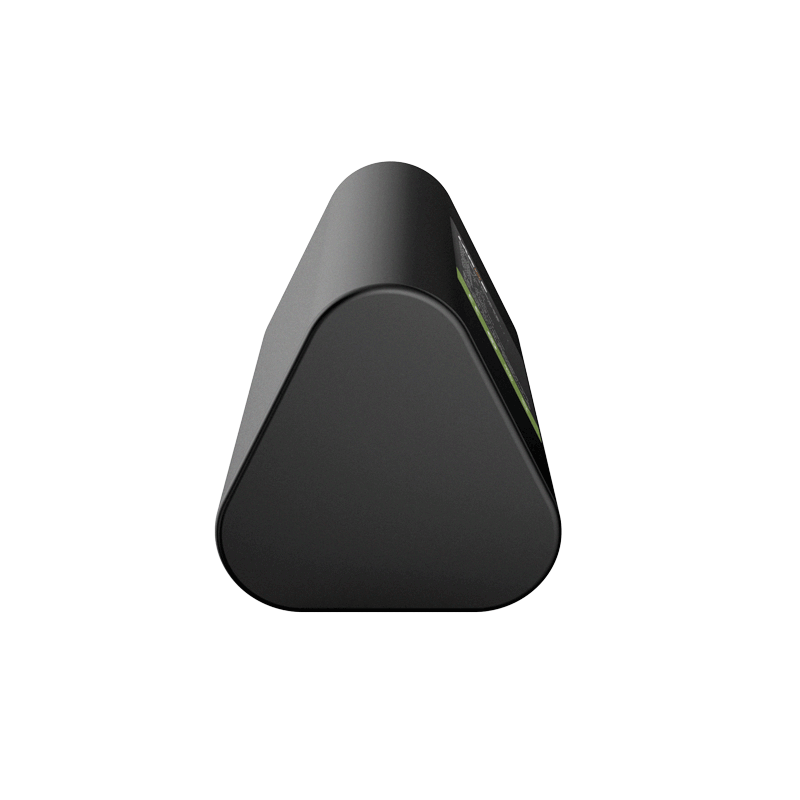

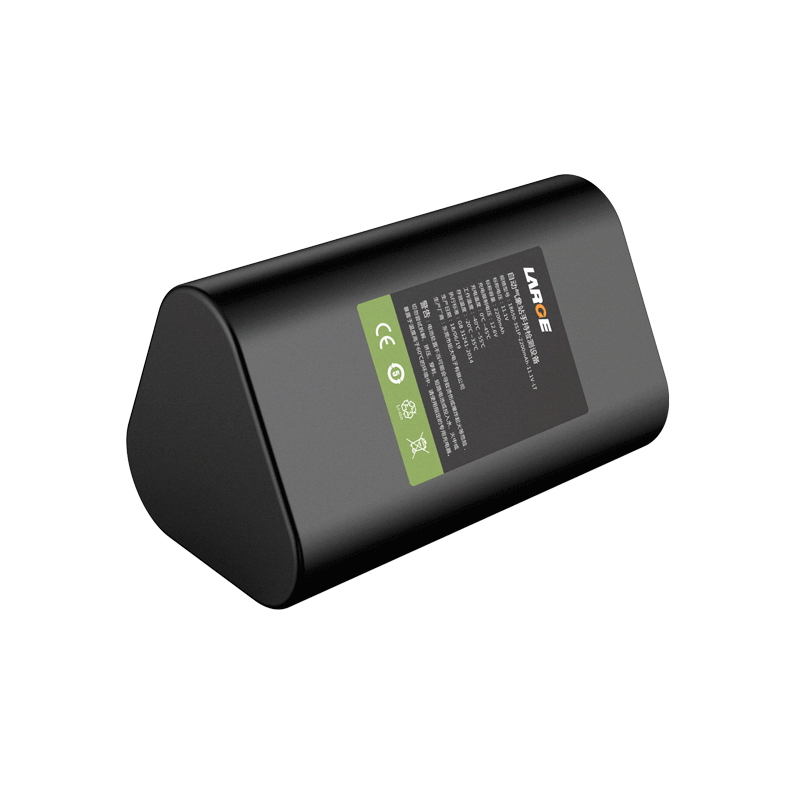

18650 11.1V 2200mAh Lithium Battery for Handheld Testing Equipment of Automatic Meteorological Station
Product Number:
05DQ0035-01
Nominal voltage:
11.1V
Nominal capacity:
2200mAh
Battery Configuration:
18650-3S1P
Dimension:
67.5 × 37.5 × 37mm (MAX)
Application:
handheld testing equipment used in automatic meteorological stations
Low Temperature Performance, Compact PVC Design, Multi Protection System
Product Overview
This battery is designed for handheld testing equipment used in automatic meteorological stations, supporting outdoor monitoring and continuous data collection applications. With stable output, compact structure, and low-temperature discharge performance, it ensures reliable operation in harsh environmental conditions.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 05DQ0035-01 |
| Cell Model | 18650-2200mAh-3.7V |
| Battery Configuration | 18650-3S1P |
| Nominal Voltage | 11.1V |
| Nominal Capacity | 2200mAh |
| Rated Energy | 24.42Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 7.5V |
| Standard Charging Current | ≤1100mA |
| Standard Discharge Current | ≤2200mA |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -40 ~ 55℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 67.5 × 37.5 × 37mm (MAX) |
| Weight | About 149g |
| Battery Case | PVC |
| Protection System | Overcharge Protection, Over-Discharge Protection, Discharge Overcurrent Protection, Discharge Short Circuit Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
