Custom Lithium ion Battery Pack

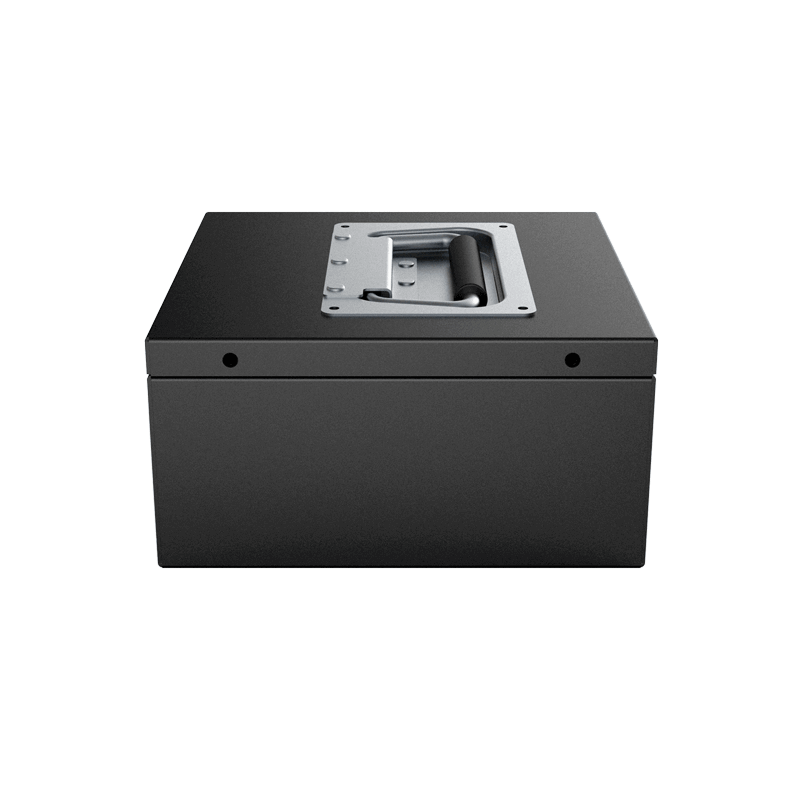

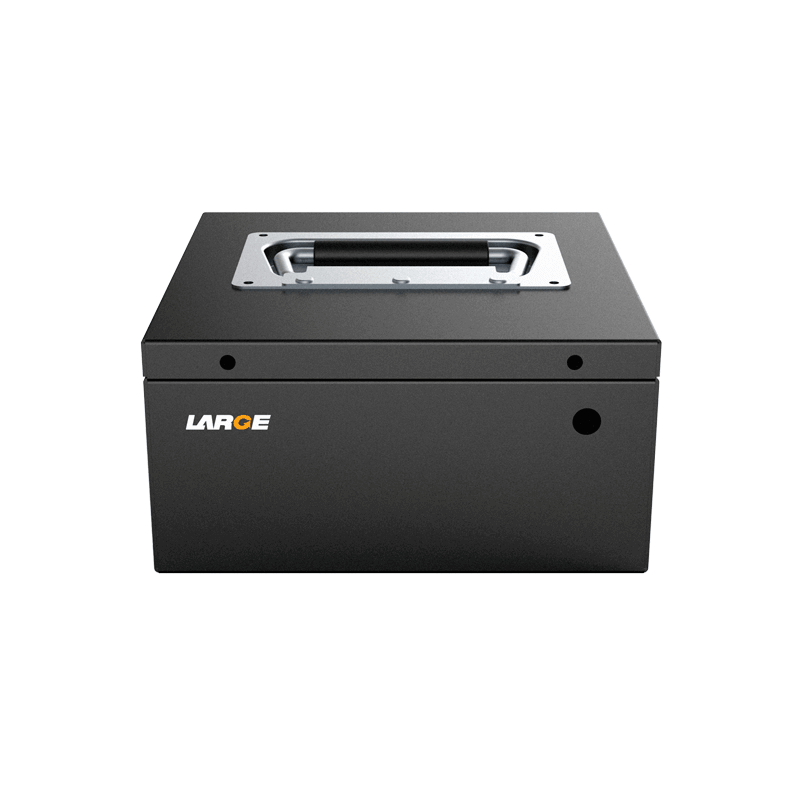

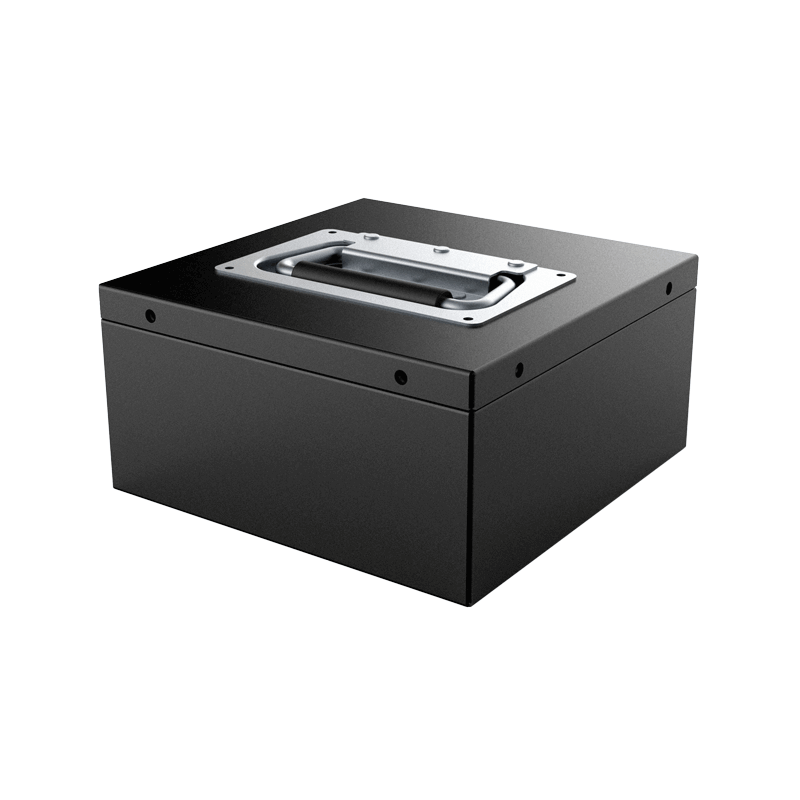

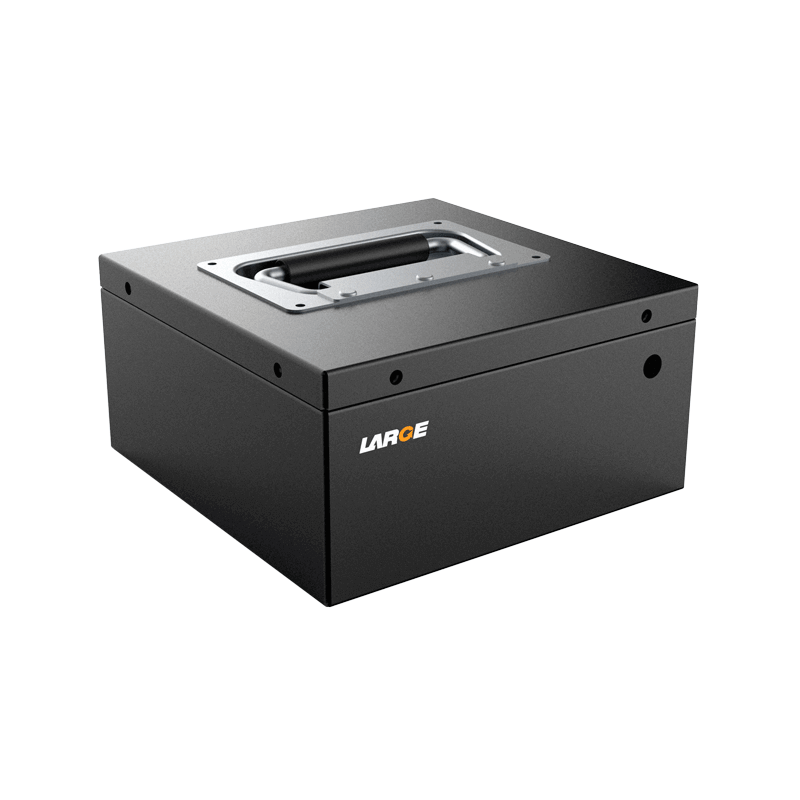

25.2V 19250mAh 18650 Battery Samsung Battery for Robot with 485 Communication

Product Detail

Product number: 06DQ030-11

Cell model:18650/3.65V/2750mAh

Battery specification: 18650-7S7P/25.55V/19250mAh

Nominal voltage:25.55V

Nominal capacity:19250mAh

Charging voltage: 29.4V

Charging current: ≤9.6A

Discharging current: 5A

Instant discharging current: 9.6A

End-off voltage: 19.6A

Internal resistance: ≤150mΩ

Battery weight: 4.7Kg

Product dimension: 181*181*91mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: portable devices

Product features

1. Data communication management: adopt 485 communication, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. The battery has good security, nice performance and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
