Custom Lithium ion Battery Pack

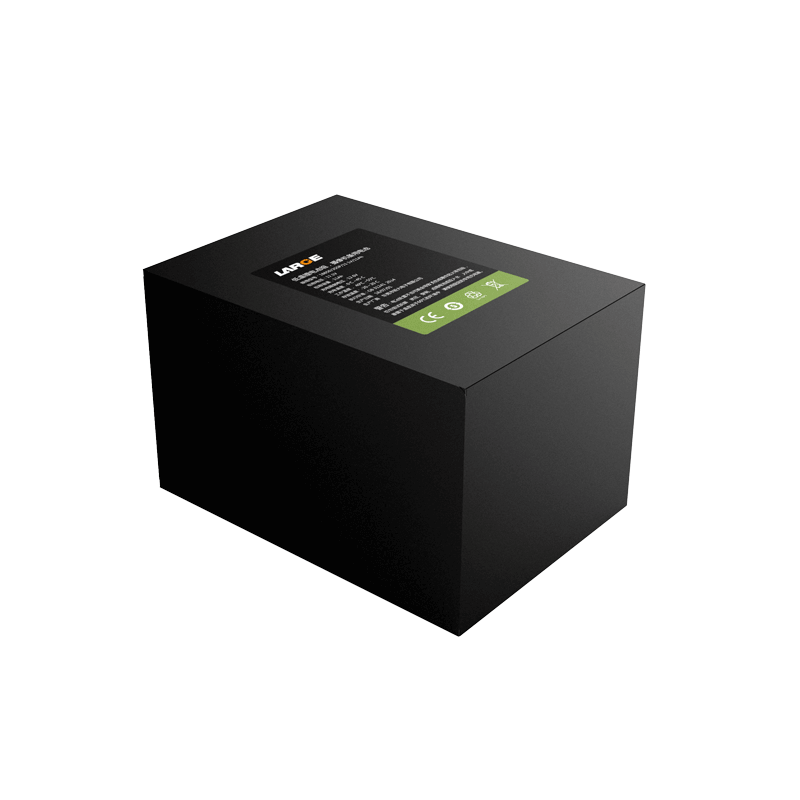

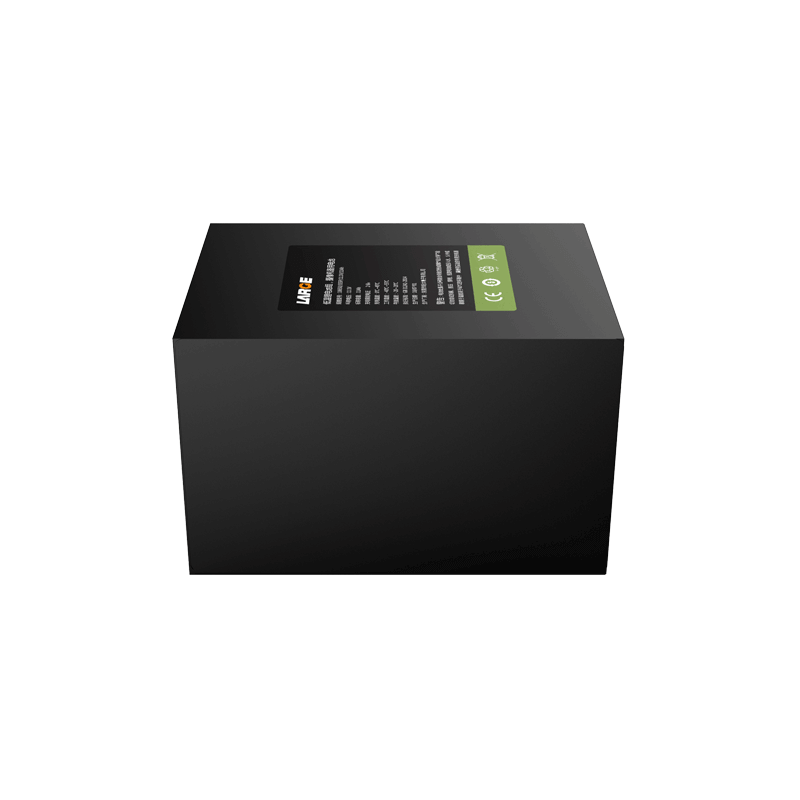

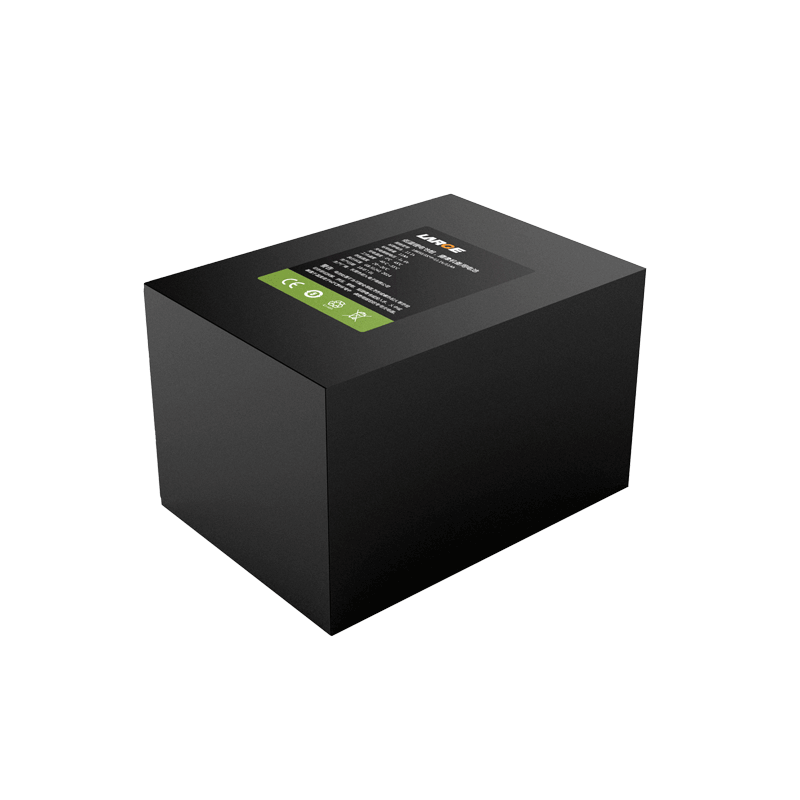

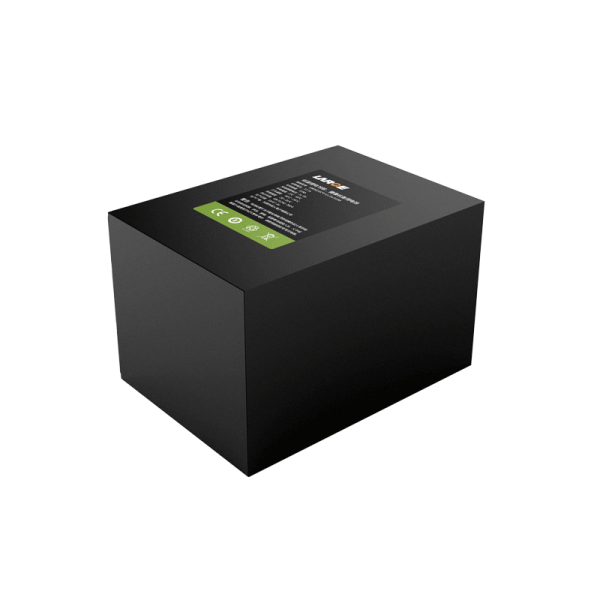

18650 11.1V 11Ah Ternary Battery for Backup Battery of Vidicon

Product Detail

Product number: 37AQ055-01

Cell model:LA18650CL/3.7V/2.2Ah

Battery specification: 18650/3S5P/11.1V/11Ah

Nominal voltage:11.1V

Nominal capacity:11Ah

Charging voltage: 12.6V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 10A

End-off voltage: 7.5V

Internal resistance: ≤150mΩ

Battery weight: 300g

Product dimension: 105×64×78mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55℃

Storage temperature: -20~20 ℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: low temperature backup battery of vidicon

Product features

1. Low self-discharge.

2. The battery pack has good security and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. It has holder, epoxy plate and safety protection circuit.
