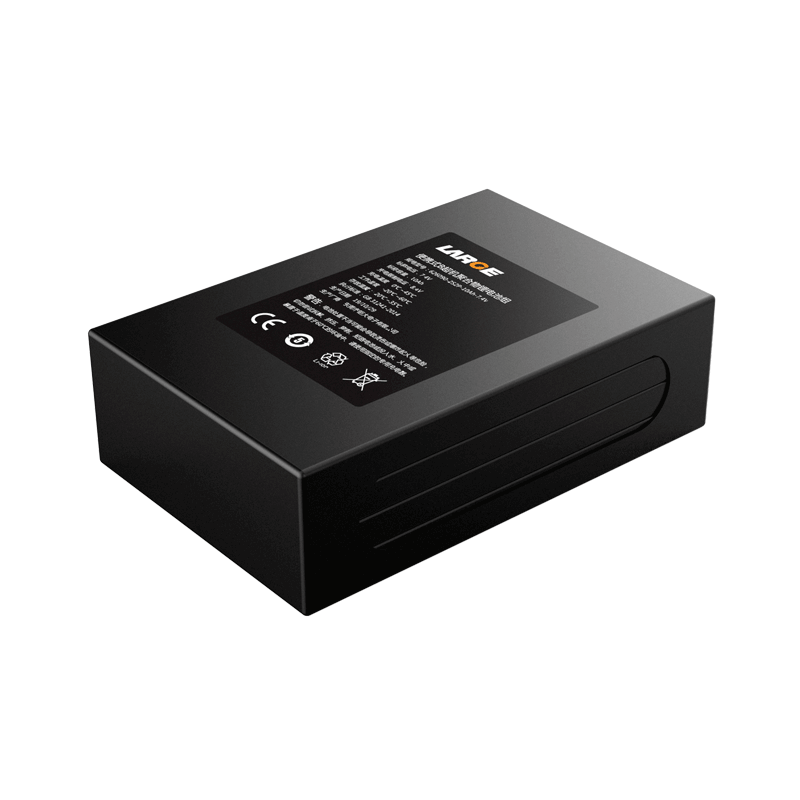

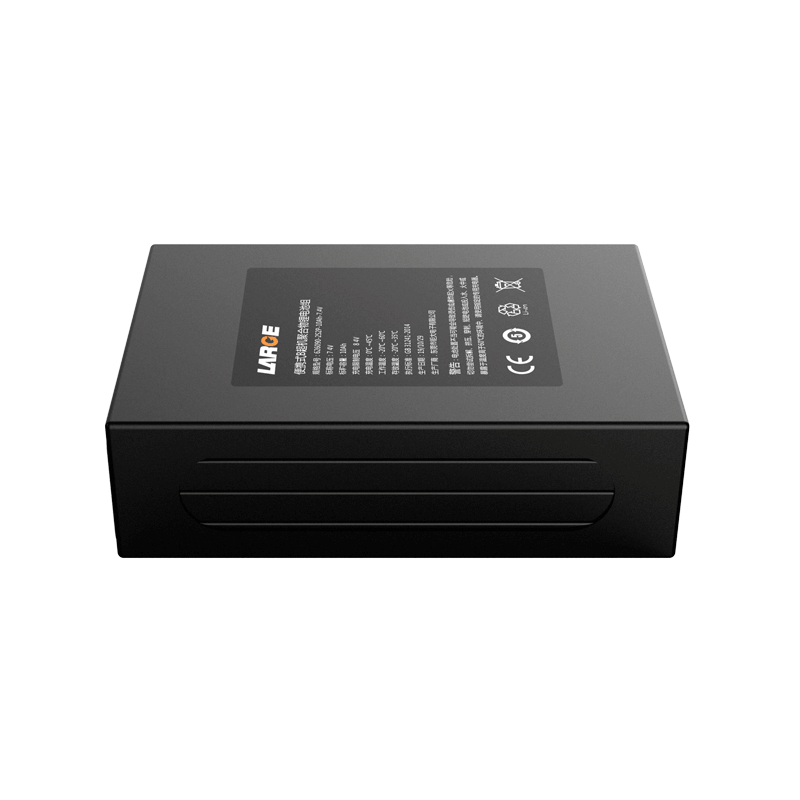

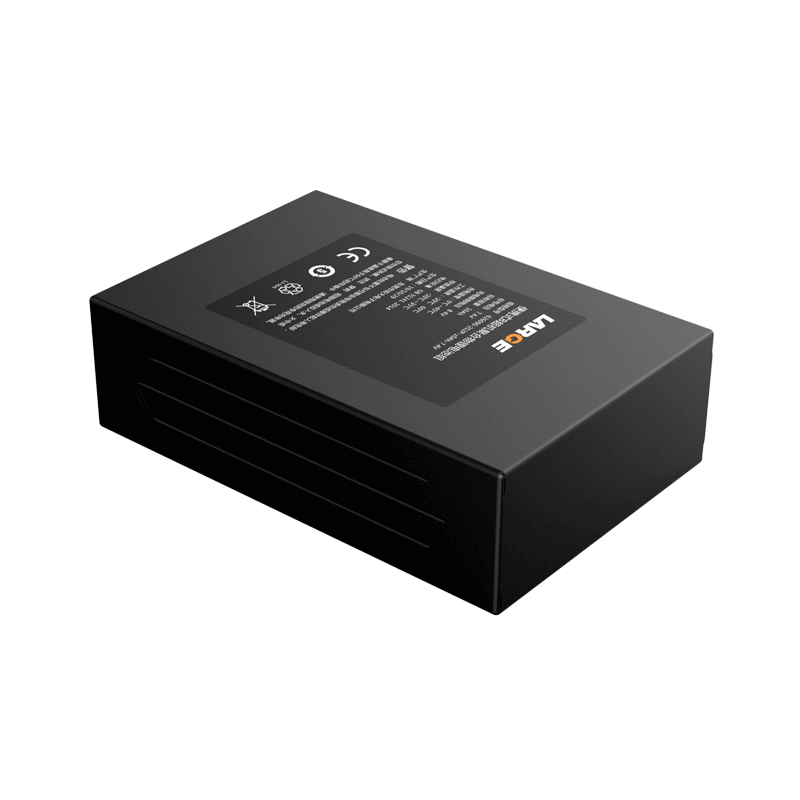

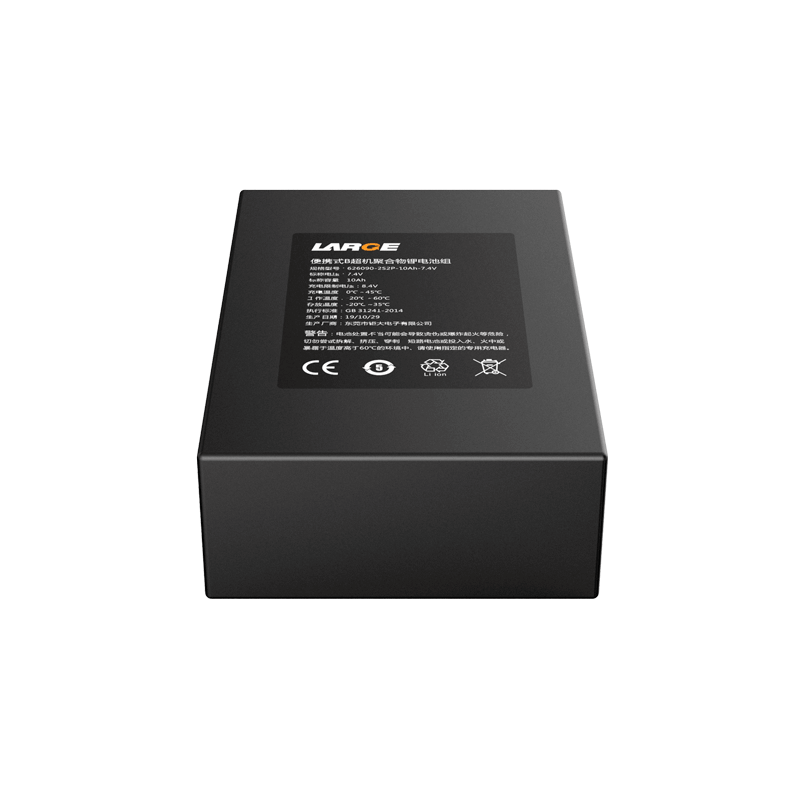

626090 7.4V 10Ah Lithium Polymer Battery Pack
Product Number:
08AQ543-19
Nominal voltage:
7.4V
Nominal capacity:
10Ah
Battery Configuration:
626090-2S2P
Dimension:
26 × 61 × 96 mm
Application:
Portable Ultrasound scanner
Lightweight PVC Encapsulation, Medical Grade Reliability, Stable Low Noise Output
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 08AQ543-19 |
| Cell Model | 626090 / 5000mAh / 3.7V |
| Battery Configuration | 626090-2S2P |
| Nominal Voltage | 7.4V |
| Nominal Capacity | 10Ah |
| Rated Energy | 74Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6.0V |
| Standard Charging Current | ≤5.0A |
| Standard Discharge Current | 2.0A |
| Max Continuous Discharge Current | 2.0A |
| Internal Resistance | ≤350mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 26 × 61 × 96 mm |
| Weight | 320 g |
| Battery Case | PVC encapsulation (no rigid housing) |
| Output Type | Solder wire / tin-solder connection |
| Protection System | Short circuit, overcharge, over-discharge, overcurrent protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
