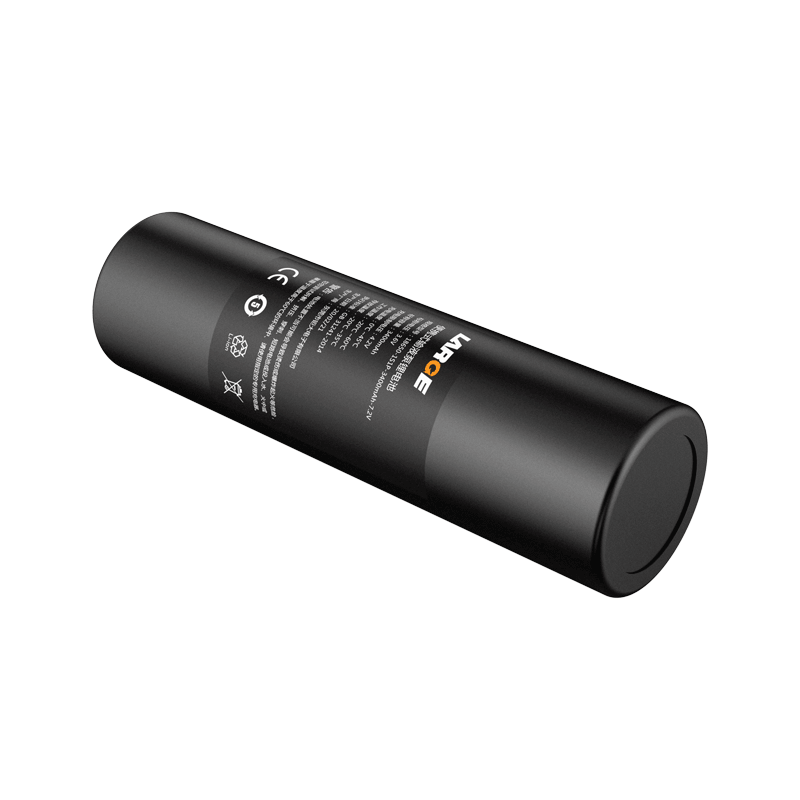

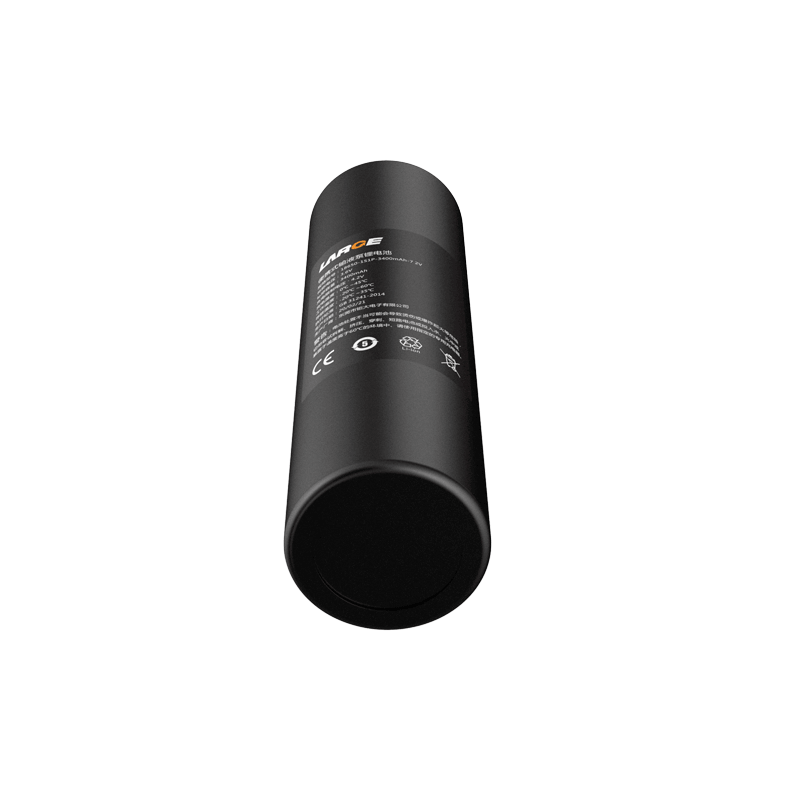

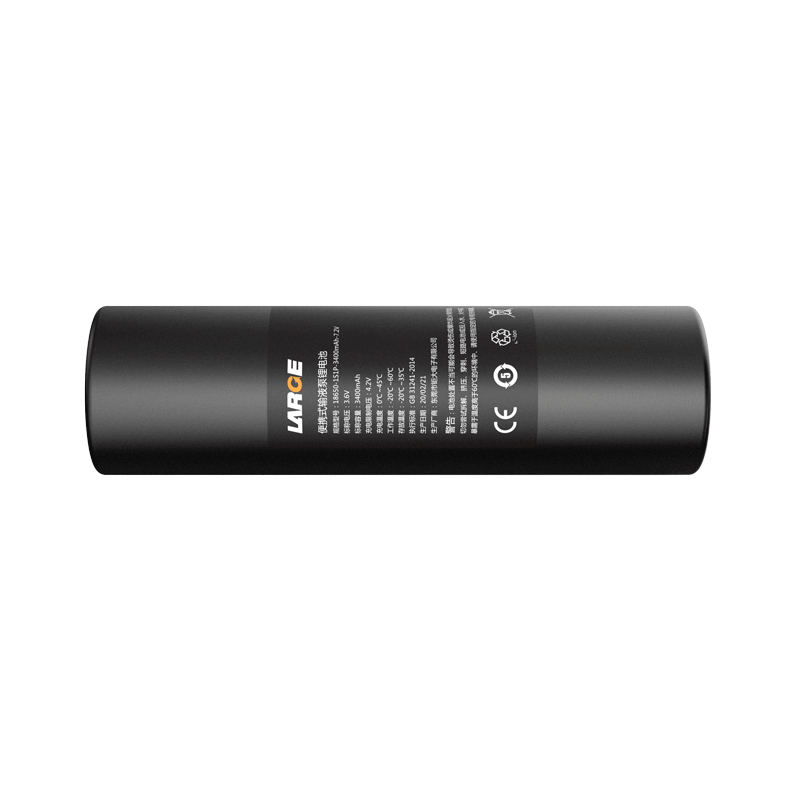

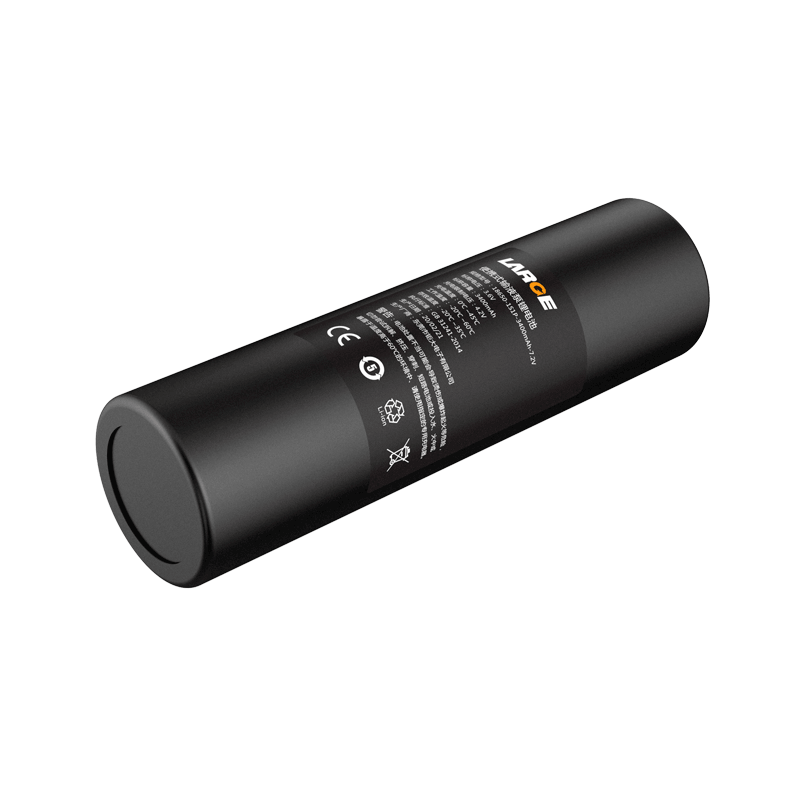

3.6V 3400mAh Samsung Battery 18650 Battery for Portable Infusion Pump

Product Detail

Product number: 01WQ0030-04T

Cell model:18650-3400mAh-3.6V

Battery specification: 18650-1S1P-3400mAh-7.2V

Nominal voltage:3.6V

Nominal capacity:3400mAh

Charging voltage: 4.2V

Charging current: ≤1.7A

Discharging current: 0.68A

Instantaneous discharge current: 1.7A

End-off voltage: 2.65V

Internal resistance: ≤120mΩ

Battery weight: 50g

Product dimension: 70*φ19mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery package: no housing, PVC shrink film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: portable infusion pump, portable medical device


Product features

Blue PVC heat shrink film package is simple and reliable, and is easy to install.

Connector plug outlet: MOLEX plug output mode is adopted to increase conductive reliability.

Battery protective chip: adopt NSK management chip, which has good stability, high precision, accurate voltage control and advanced current monitoring control, so as to eliminate the security risks.

The battery pack has good security, nice discharge performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
