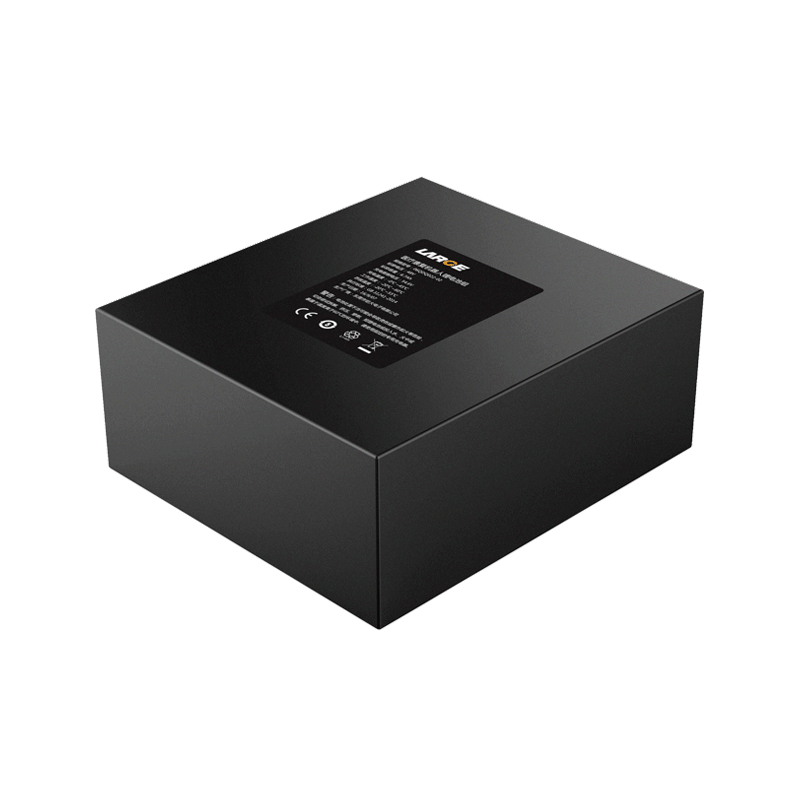

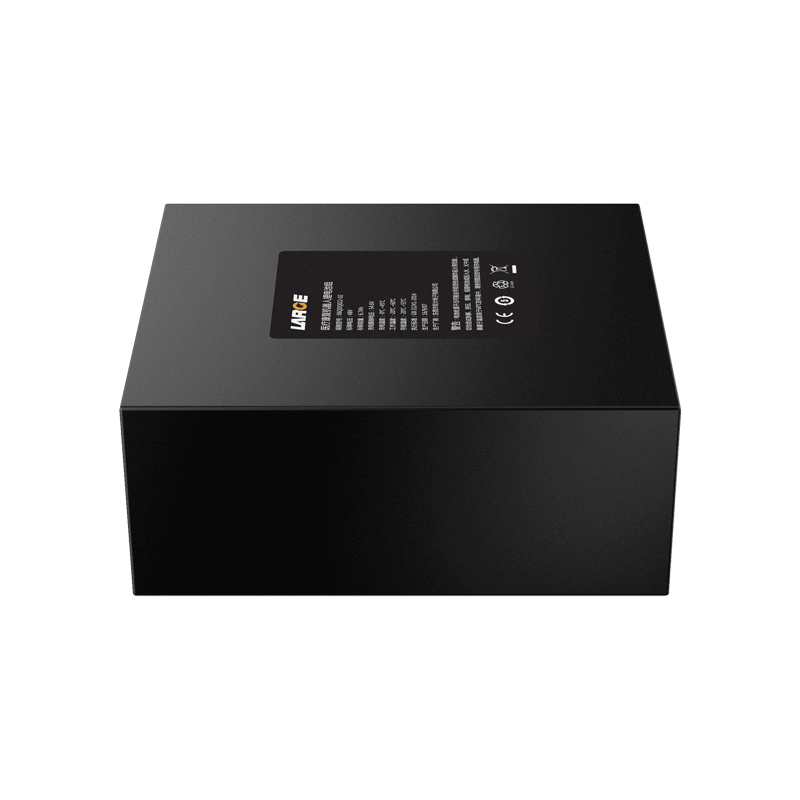

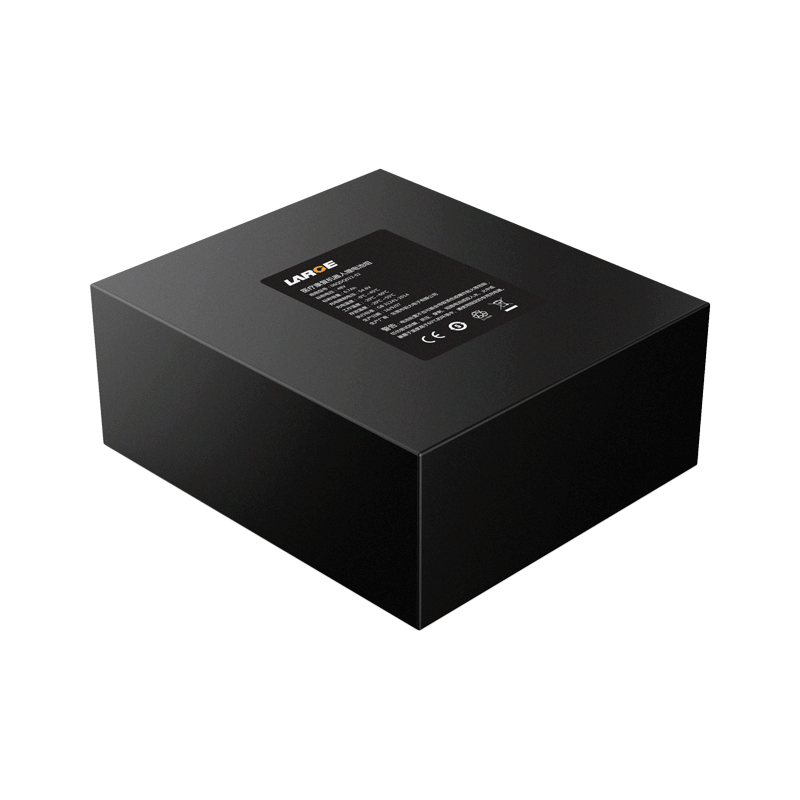

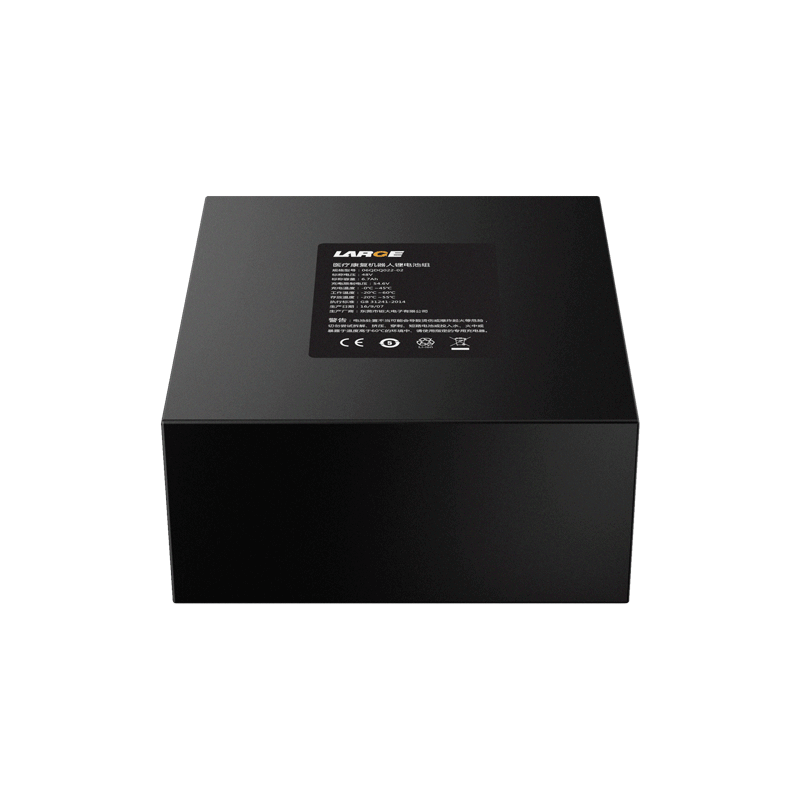

48V 6.7Ah 18650 Panasonic Battery Ternary Battery for Medical Rehabilitation Robots

48V 6.7Ah 18650 Panasonic Battery Ternary Battery for Medical Rehabilitation Robots
48V 6.7Ah 18650 Panasonic Battery Ternary Battery for Medical Rehabilitation Robots
48V 6.7Ah 18650 Panasonic Battery Ternary Battery for Medical Rehabilitation Robots
48V 6.7Ah 18650 Panasonic Battery Ternary Battery for Medical Rehabilitation Robots

Product Detail

Product number: 06DQ022-02

Battery specification: 18650-13S2P/48V/6.7Ah

Nominal voltage:48V

Nominal capacity:6.7Ah

Charging voltage: 54.6V

Charging current: ≤5A

Discharging current: 10A

Instant discharging current: 15A

End-off voltage: 36.4V

Product dimension: 160*140*65mm(max)

Battery weight: about 1.5KG

Output line: 3135 AWG 18# line, exposed length 200+/-20mm

Operating temperature: 0~+45℃ (charging), -10~+60℃ (discharging)

*
*
*
