Custom Lithium ion Battery Pack

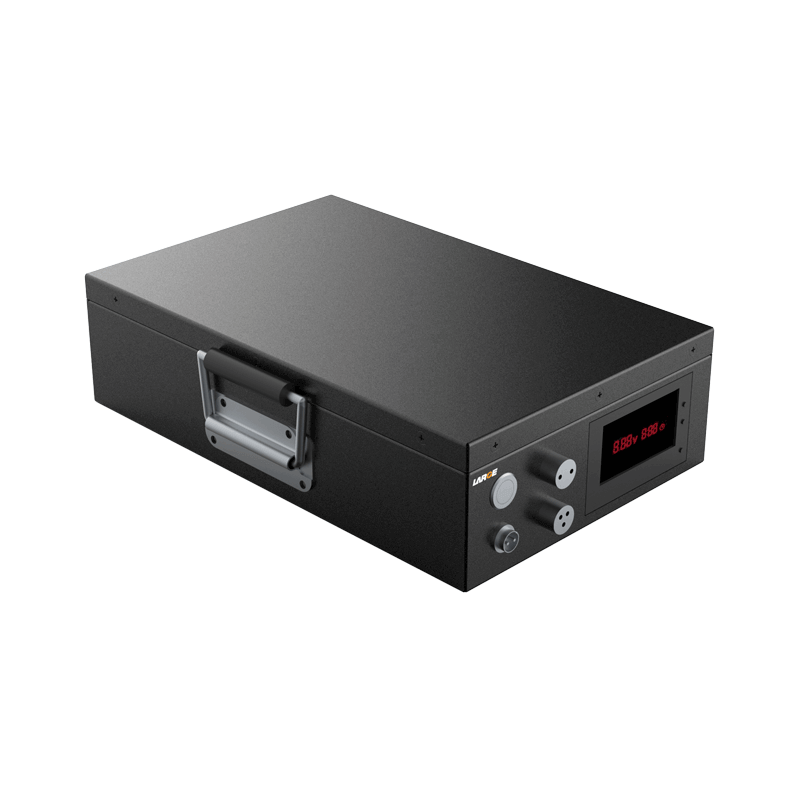

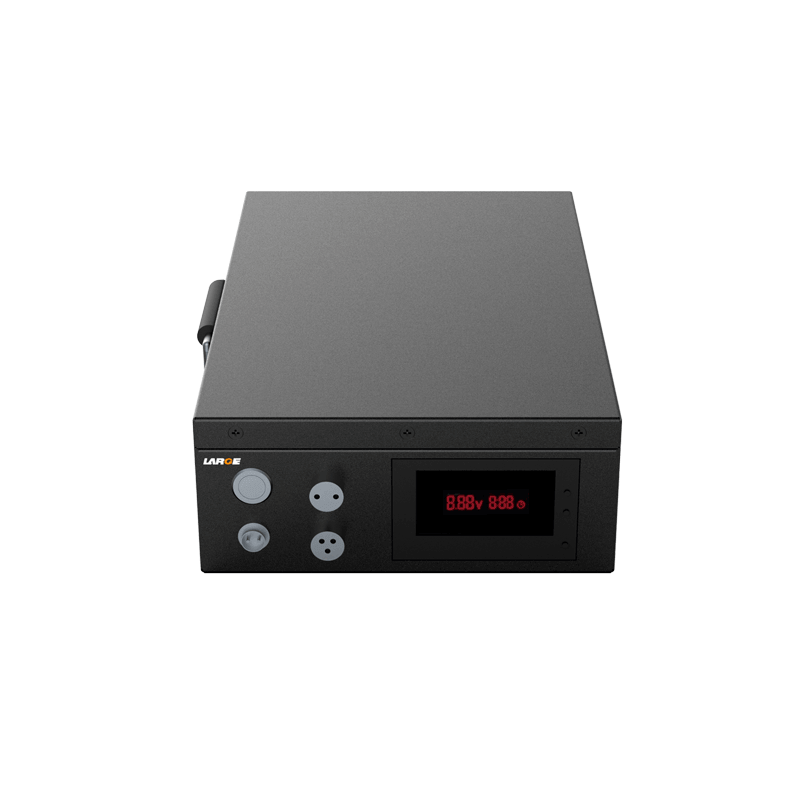

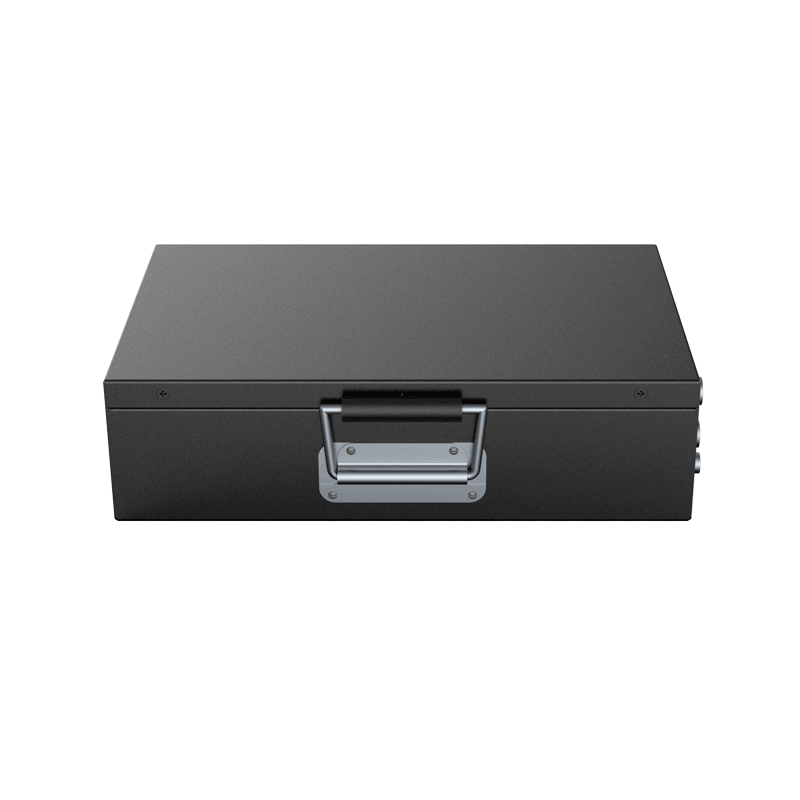

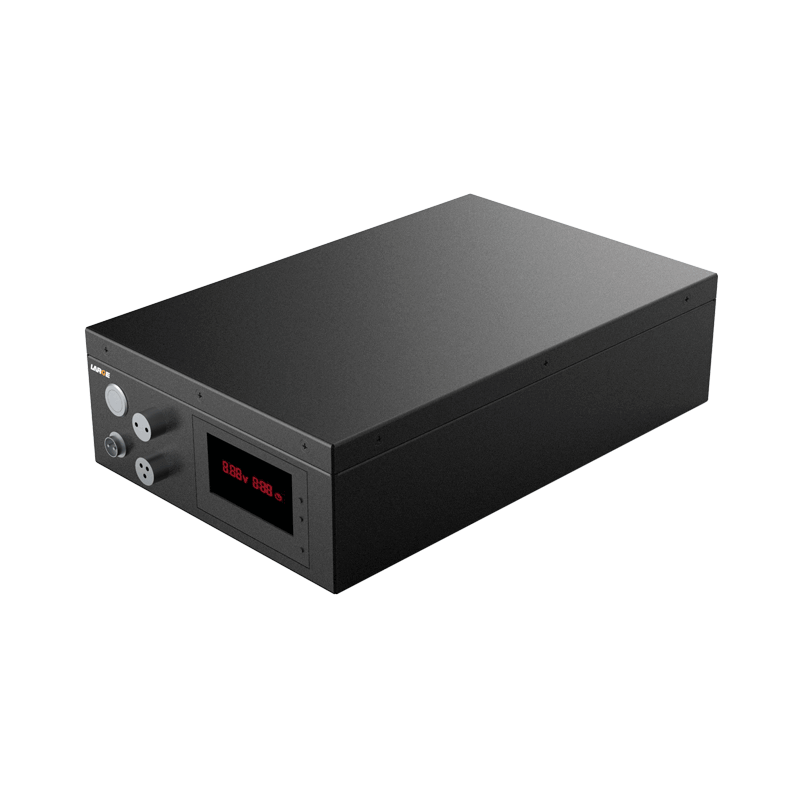

12.8V 60AH LiFePO4 Battery for Monitoring Equipment With 485 Communication

Product Detail

Product number: 37DZ070-01

Cell model:32700/3.2V/5.7Ah

Battery specification:32700-4S11P/12.8V/60Ah

Nominal voltage:12.8V

Nominal capacity:60Ah

Charging voltage: 14.6V

Charging current: ≤15A

Discharging current: 10A

Instant discharging current: 40A

End-off voltage: 10V

Internal resistance: ≤200mΩ

Battery weight: 12Kg

Product dimension: 350*225*95mm(+/-2mm)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Temperature protection: 70℃±5℃

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: electronic exploder

Product features

1. Small self-discharge

2. Temperature protection

3. The battery pack has good security and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

5. The battery has LCD power display screen.

6. 485 communication management :SOC management and fault alert
