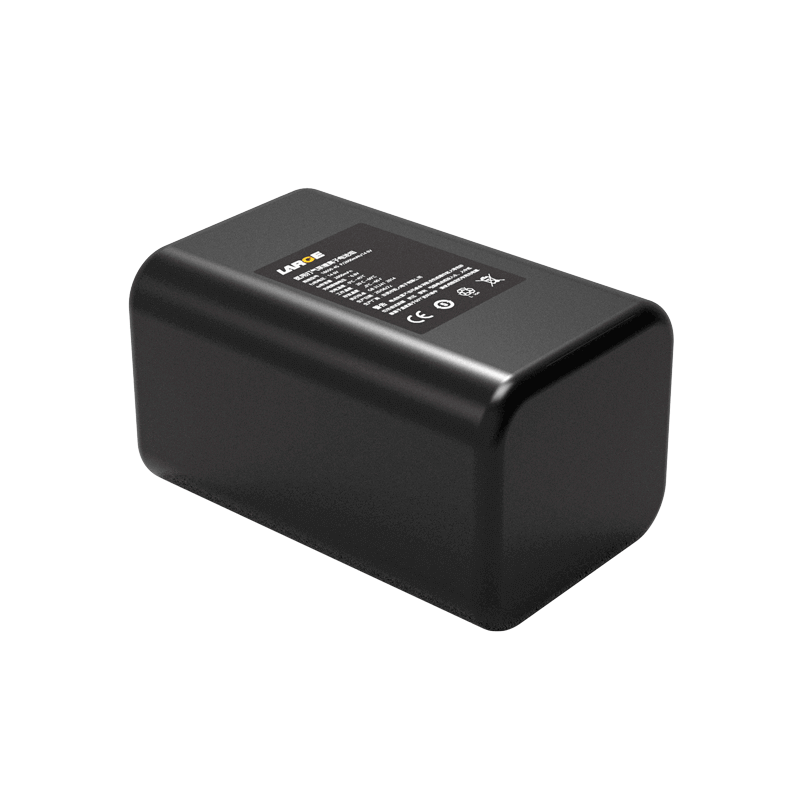

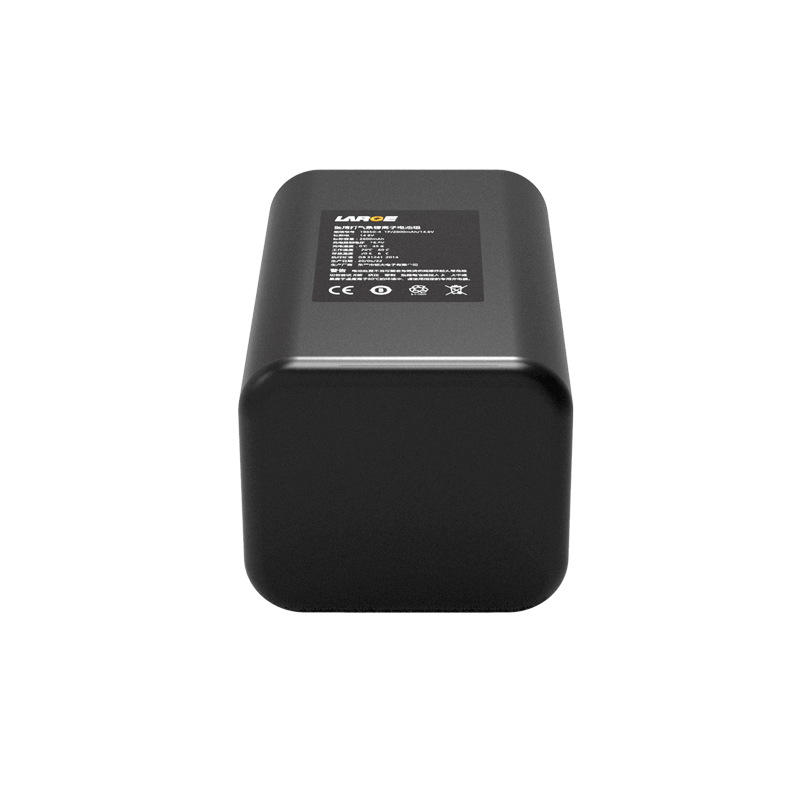

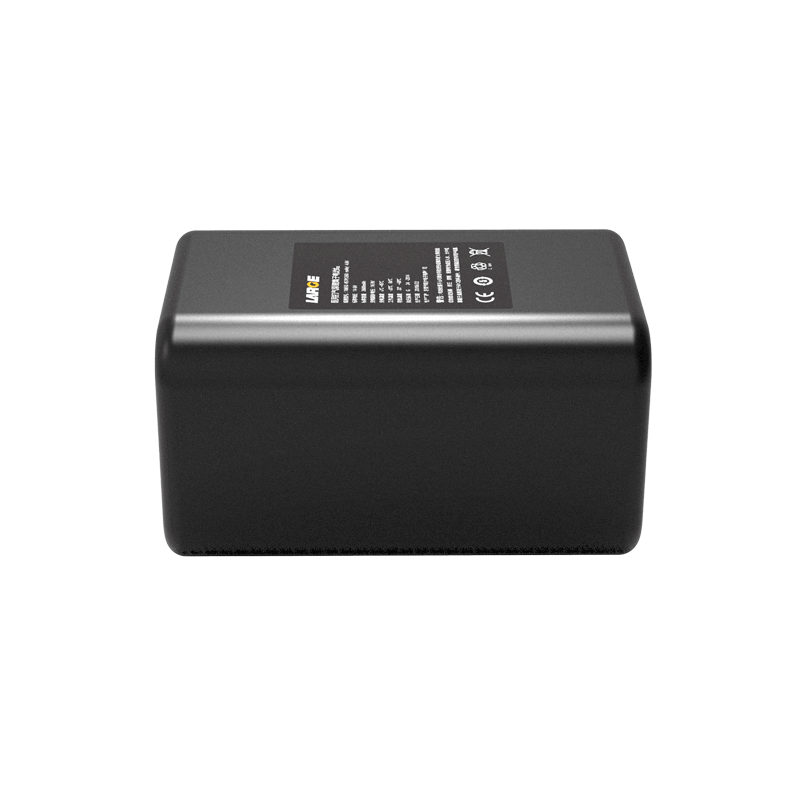

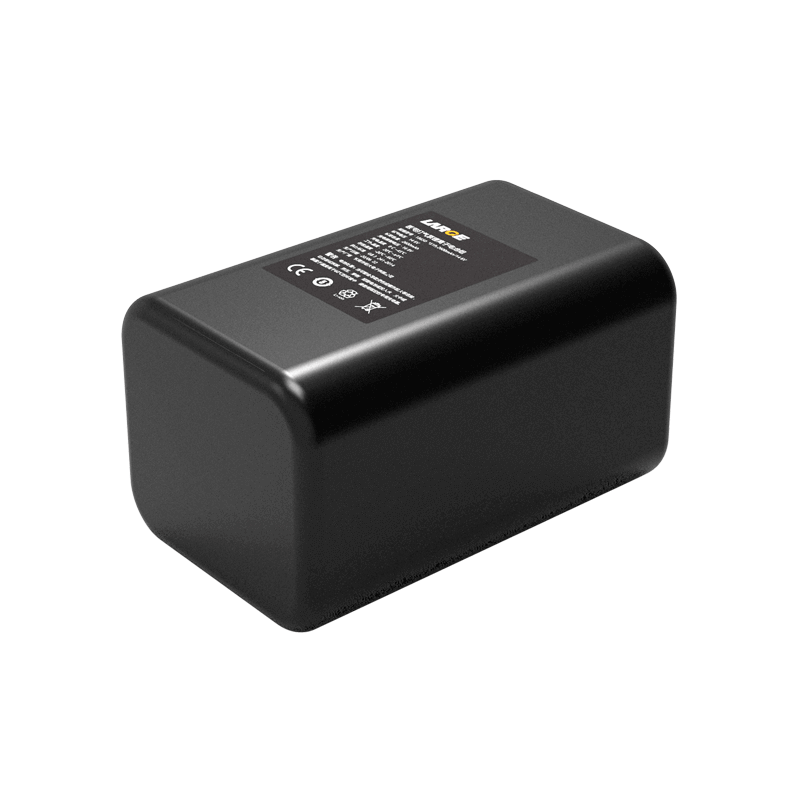

Product number: 16AQ369-20
Battery specification: 18650-4S1P/2600mAh/14.6V
Charging voltage: 16.8V
Charging current: 520mA
Discharging current: 520mA
Maximum discharging current: 2600mA
End-off voltage: 12V
Internal resistance: ≤350mΩ
Battery weight: 210G
Product dimension: 73*38*47.5mm（Max
Discharging temperature: -20～60℃
Storage temperature: -20～60℃(less than a month)
Battery case: blue PVC
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection ,over current protection, etc.
Application field: Medical air pump
1.Battery management: using TI charging management chip with high stability, high precision monitoring, precise control, temperature protection and other functions, which can eliminate the potential safety hazard to the maximum extent.
2.Data communication management: It has communication transmission, accurate data transmission, precise temperature control, real-time battery condition monitoring and control.
3.Blue PVC heat shrinkable film package is simple and reliable, and is easy to install.
4.The battery pack has good security and nice performance.
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
