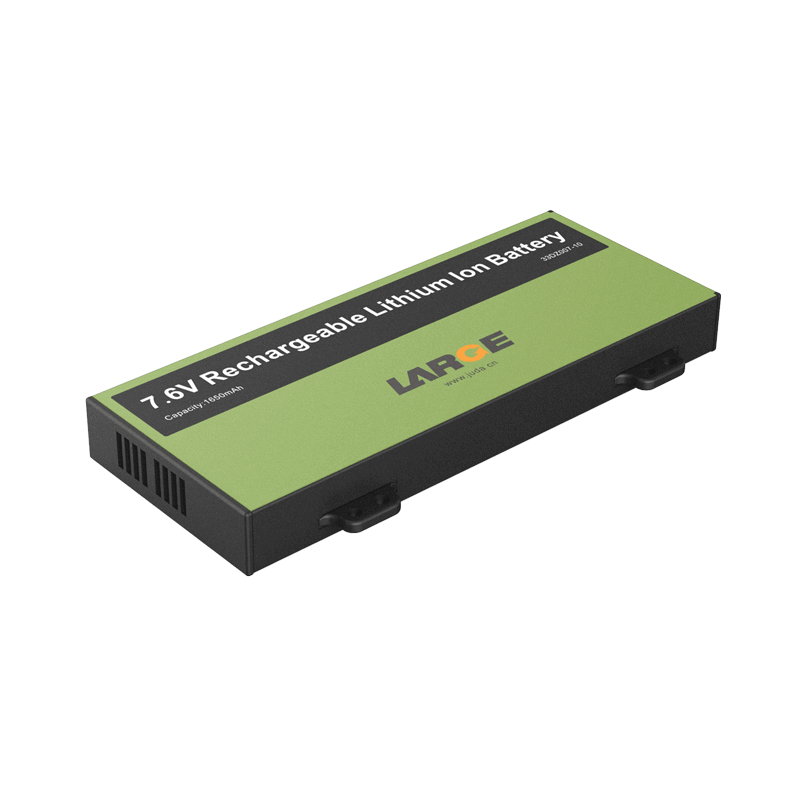

7.6V 1650mAh Low Temperature -40℃ Lithium Polymer Battery Pack For Hand-held Tablet With IIC Communication Protocol

Product number: 33DZ007-10

Cell model：LA483685/1650mAh/3.70V

Nominal voltage：7.4V

Nominal capacity：1650mAh

Charging voltage: 8.4V

Charging current: ≤800mA

Discharging current:1.65A

Instant discharging current: 1.65A

End-off voltage: 5V

Internal resistance: ≤150mΩ

Battery weight: 100g

Product dimension: L*W*H 94.2*38.5*10.5mm

Charging temperature：0～45℃

Discharging temperature: -40～55℃

Storage temperature: -20～45℃

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, equalization, IIC communication protocol, etc.

Application field: hand-held tablet

Product features

1.The maximum sustainable discharge of the battery is 1.65A.

2.Data communication management: the imported software management chip and IIC communication function are adopted to realize accurate data transmission and precise temperature control, so as to eliminate potential safety hazards to the maximum extent.

3.Cell characteristics: self-developed ultra-low temperature polymer battery can discharge more than 80% capacity at - 40 ℃.

4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
