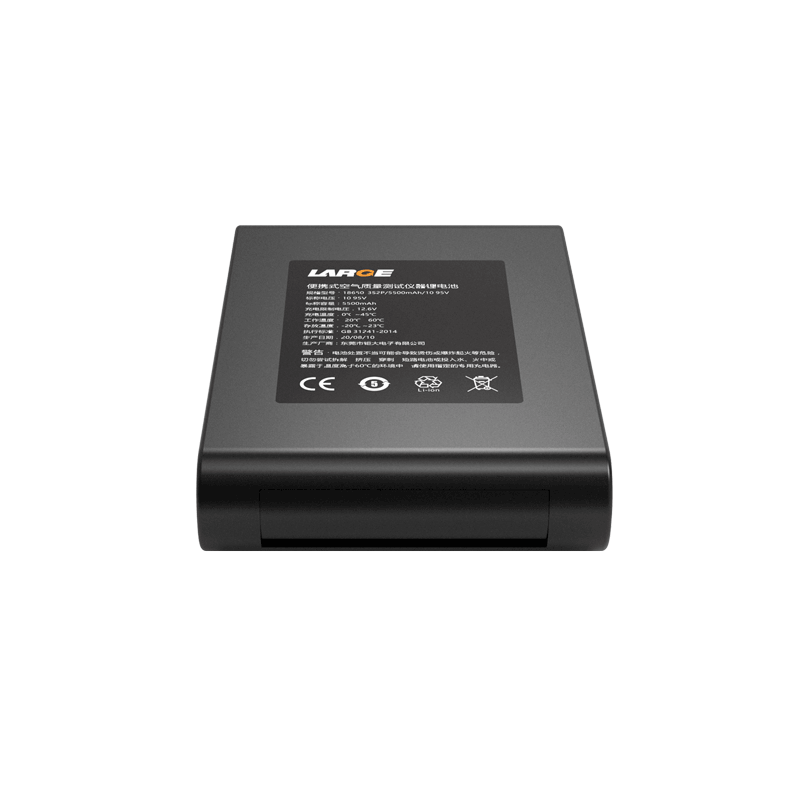

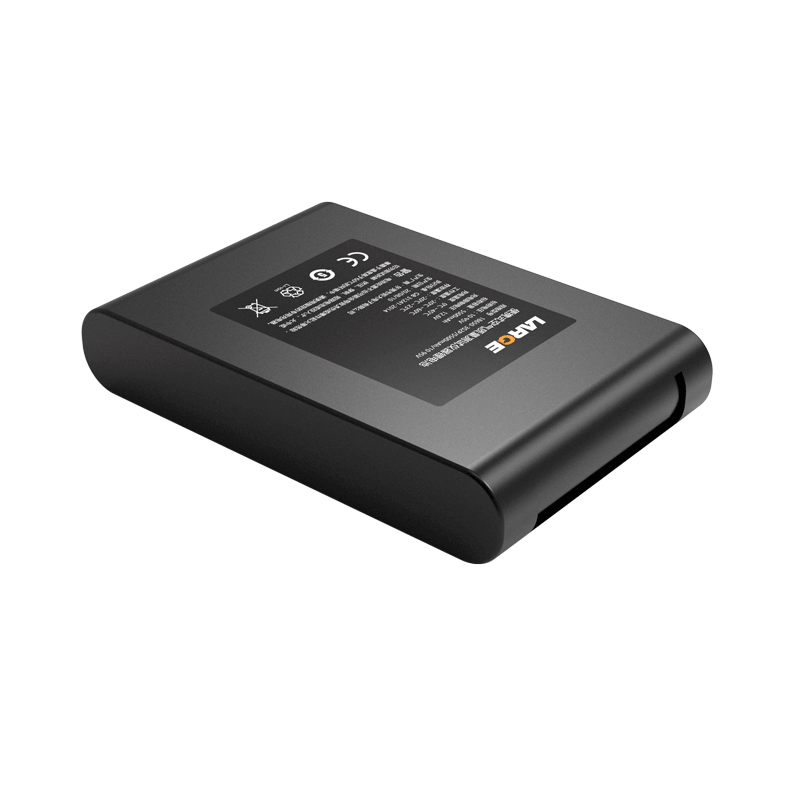

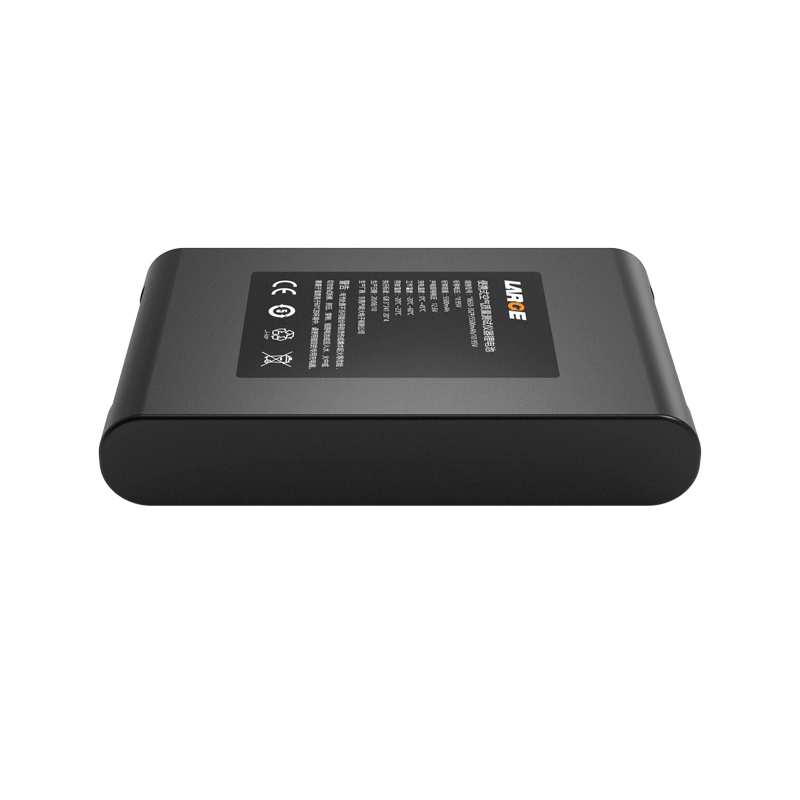

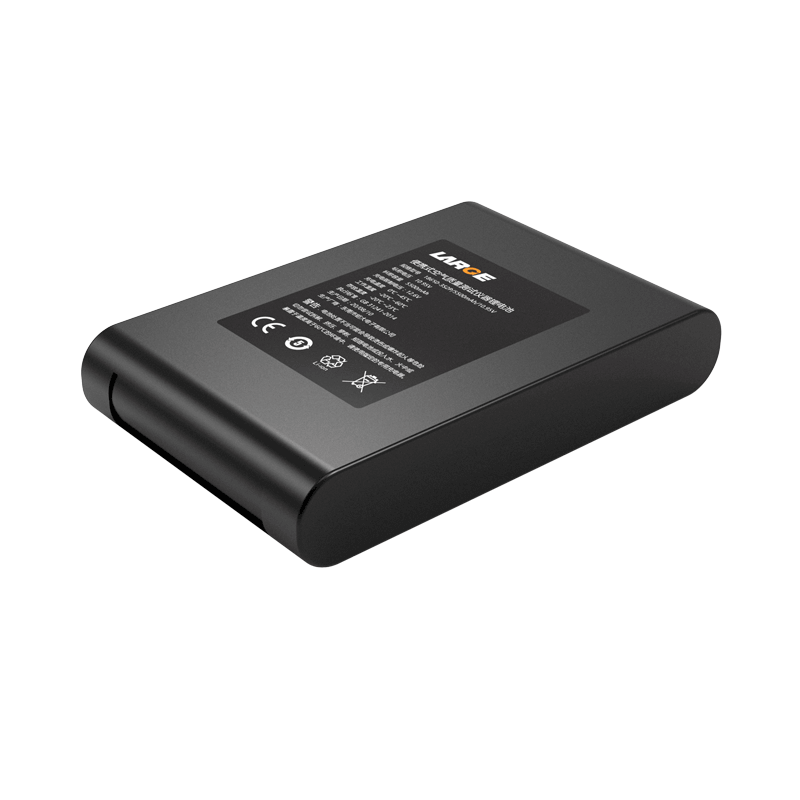

Product number: 01WQ0020-01
Battery specification: 18650-3S2P-5500mAh-10.95V
Product dimension: 115*72*20mm（Max）
Charging voltage: 12.6V
Charging current: ≤2.7A
Discharging current: ≤12A
End-off voltage: 8.1V
Internal resistance: ≤180mΩ
Battery weight: 400g
Discharging temperature: -20～60℃
Storage temperature: -20～35℃
Battery case: blue PVC heat shrink film
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.
Application field: portable air quality tester and other portable test equipment
1.PVC heat shrinkable film package is simple and reliable, and is easy to install.
2.Outlet of connector plug: DC5521 plug output mode is adopted to increase the conductive reliability.
3.Battery management: The battery adopts special battery protection chip with high stability, high precision monitoring, precise controlling, ESD protection, and temperature protection, which can eliminate the potential safety hazard to the maximum extent.
4.The battery pack has good security, nice discharge performance and long cycle life.
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
