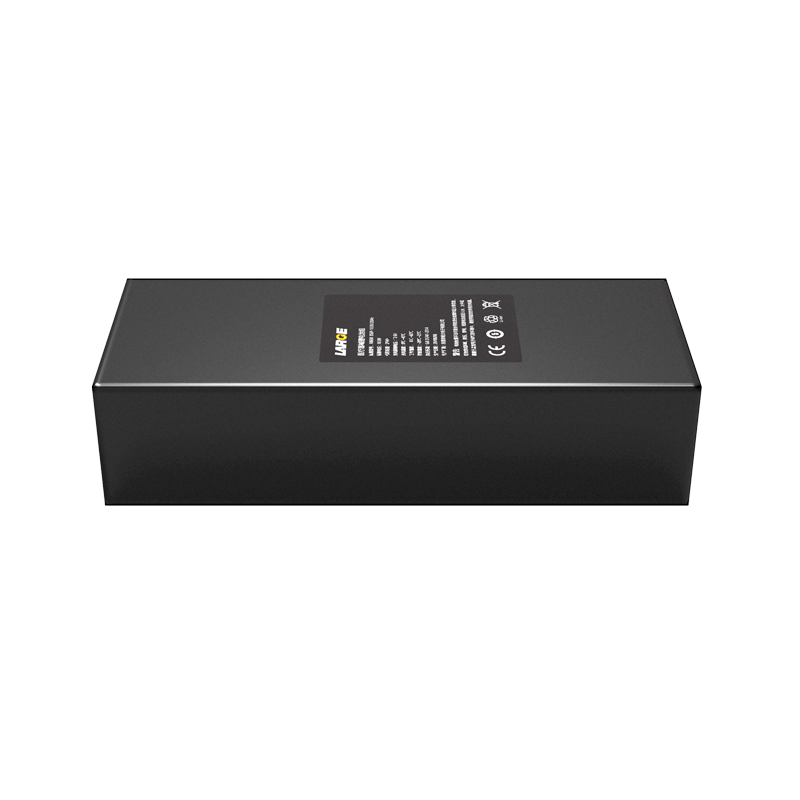

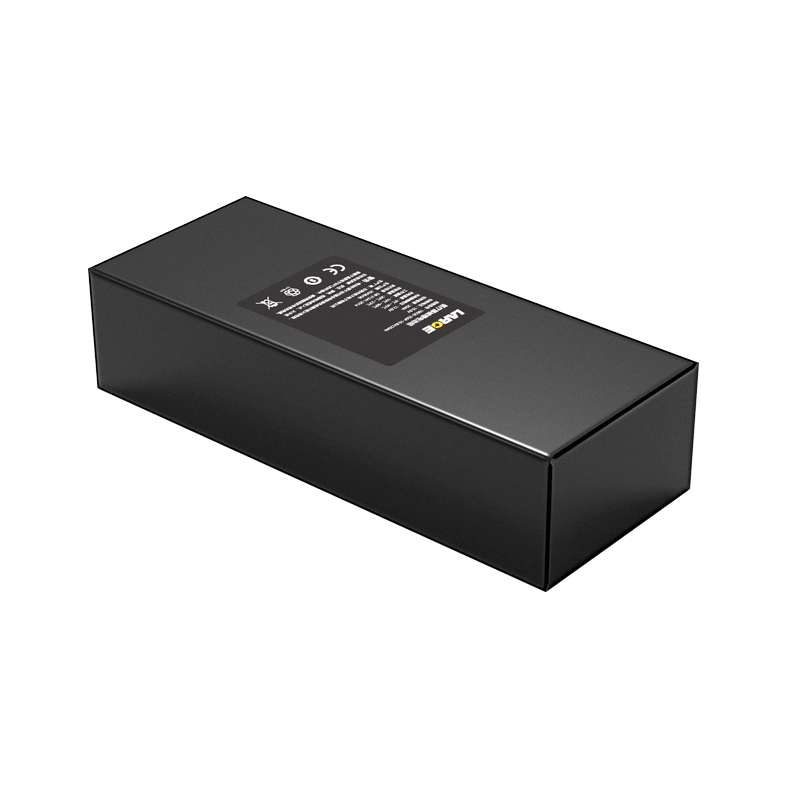

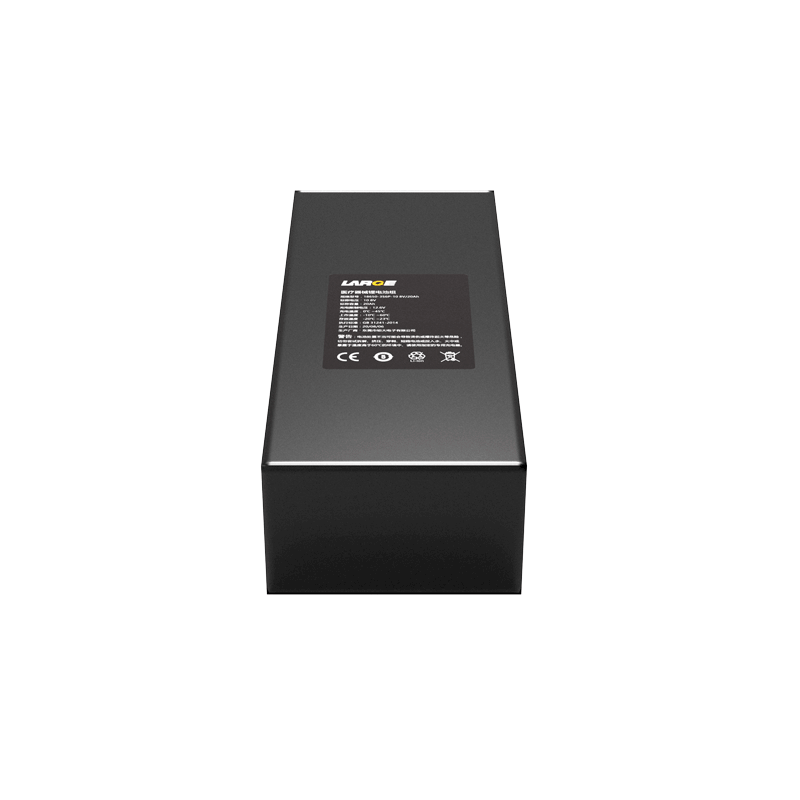

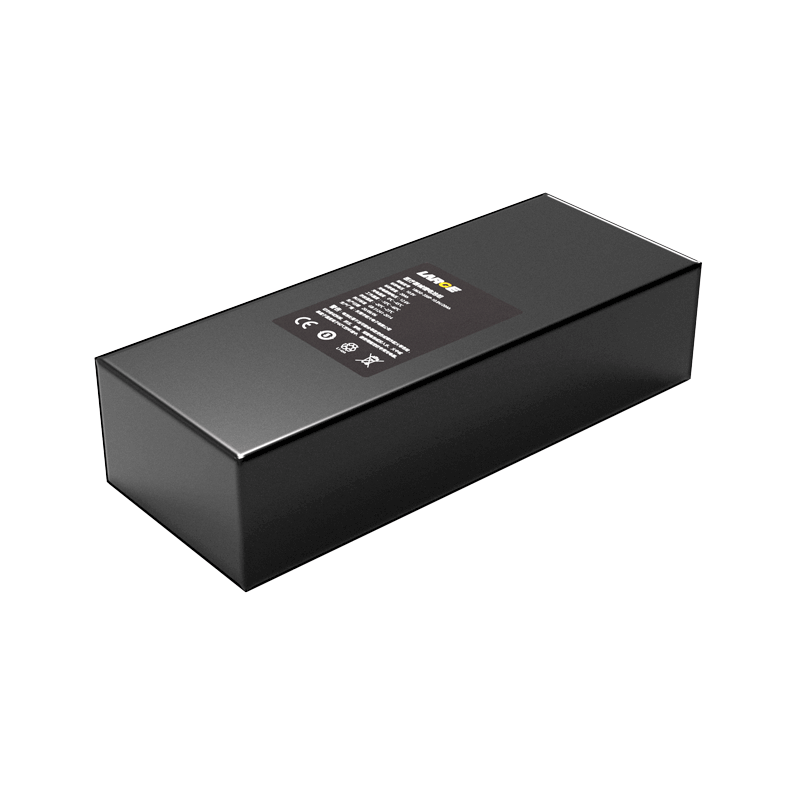

18650 10.8V 20Ah Lithium Battery Pack For Medical Instrument With SMBUS Communication Protocol

Product Detail

Product number: 36AQ288-01
Cell model:18650-3.6V/3.35Ah(35E)
Battery specification: 18650-3S6P-10.8V/20Ah
Nominal voltage:10.8V
Nominal capacity:20Ah
Charging voltage: 12.6V
Charging current: ≤5A
Discharging current: 4A
Instant discharging current: 10A,3~4S
End-off voltage: 9V
Internal resistance: ≤330mΩ
Battery weight: 950g
Product dimension: 188*75*45(mm)
Charging temperature:0~45℃
Discharging temperature: -10~60℃
Storage temperature: -20~23℃ (less than 12 month)
Battery case: PVC
Lithium ion battery protection: normal protection + SMBUS communication protocol


Product features
1. Imported cell: The battery pack has good security and long cycle life.
2. The battery is intelligent with SMBUS communication protocol, the protection parameters can be adjusted by software.
3. The shape of battery pack can be customized according to customers' requirements.
4. The battery is isolated by bracket, which has stable structure, good heat insulation and good anti drop performance.

*
*
*
