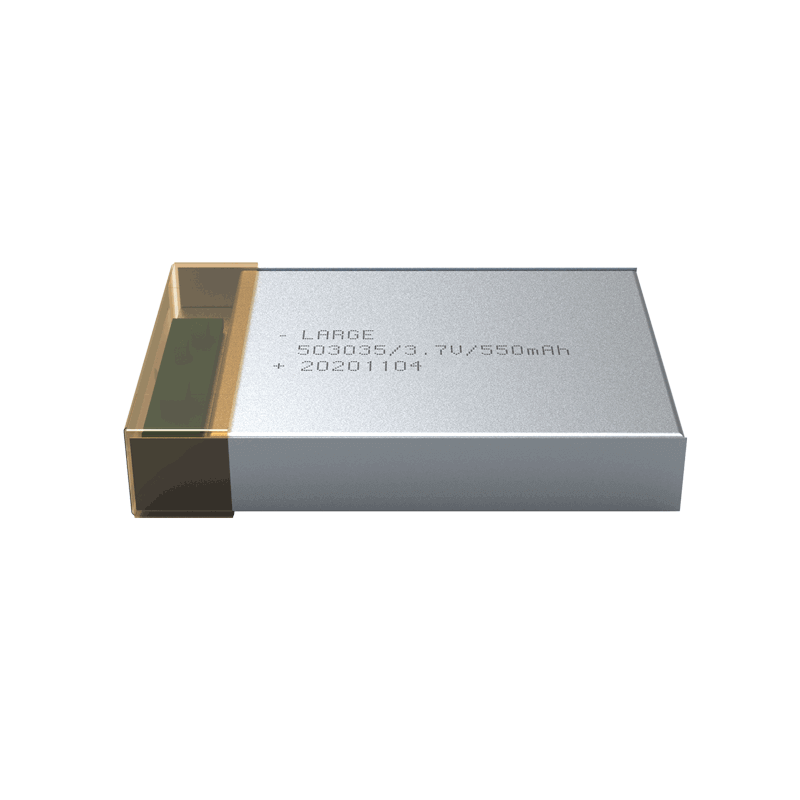

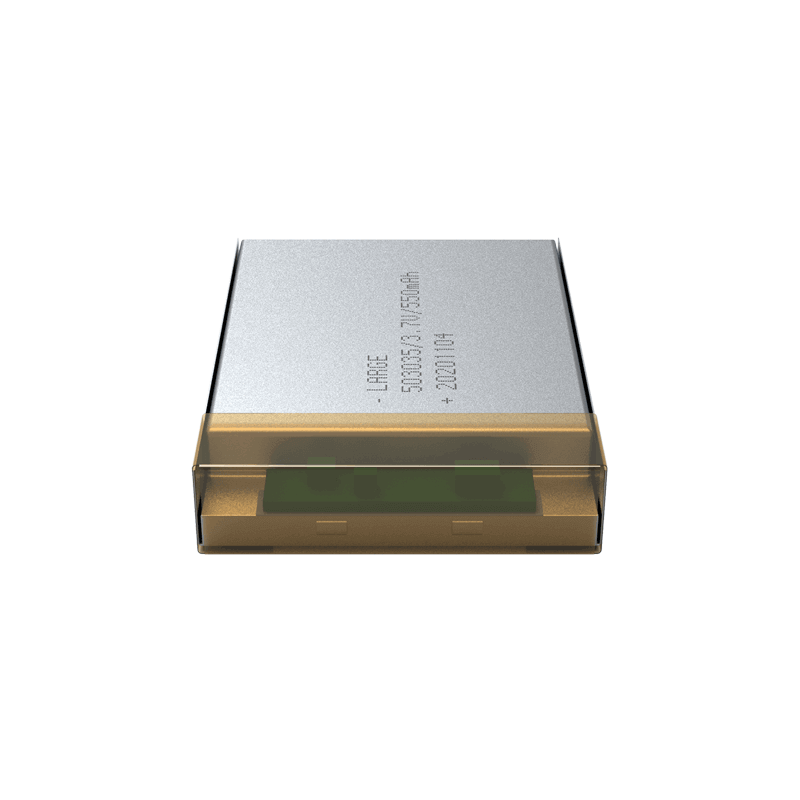

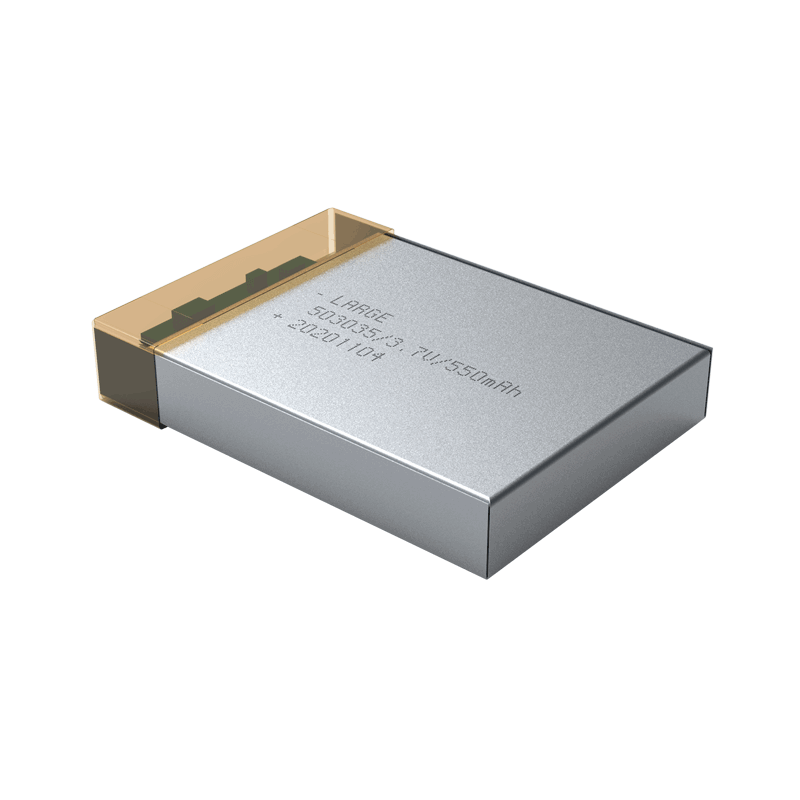

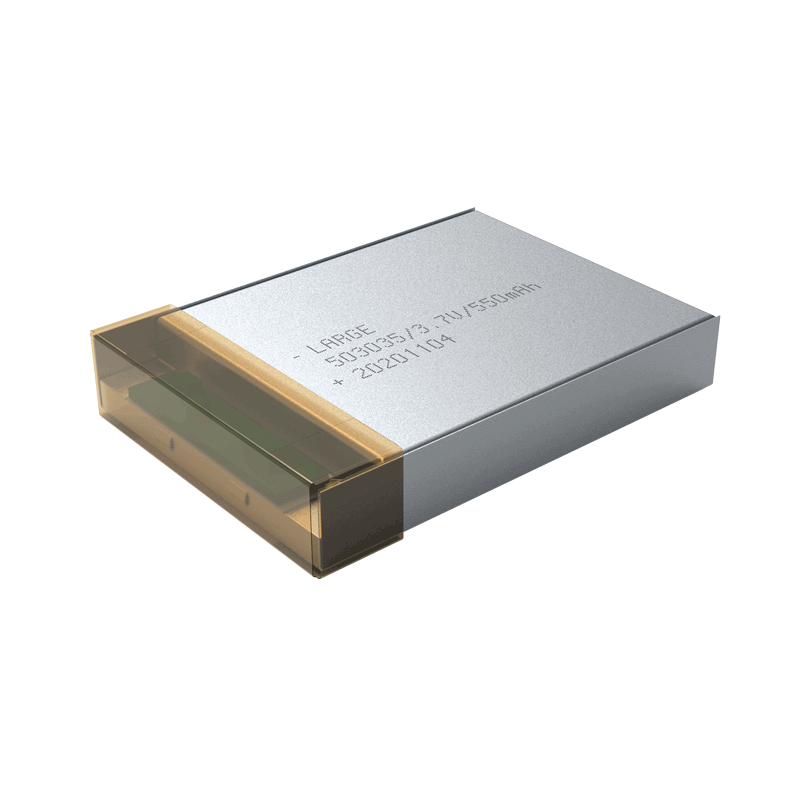

3.7V 550mAh Lithium Polymer Battery for Medical Assistance Module

Product number: 06DQ054-03

Cell model：503035-550mAh-3.7V

Battery specification: 503035-1S1P/550mAh/3.7V

Product dimension: 38×30.5×5.5mm（Max）

Nominal voltage：3.7V

Nominal capacity：550mAh

Charging voltage: 4.2V

Charging current: ≤250mA

Discharging current:≤500mA

End-off voltage: 3.0V

Internal resistance: ≤260mΩ

Battery weight: 16g

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: simple package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over current protection and ESD protection

Application field: handheld device, power module, portable device

Product features

1. Simple package is good for installing.

2. Connector plug outlet: Adopt MOLEX plug output mode to increase conductive reliability.

3. Battery protection management: Adopt imported Seiko protection chip with good stability, high precision monitoring, precise control so as to try our best to eliminate the security risks.

4. The battery has good security, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
