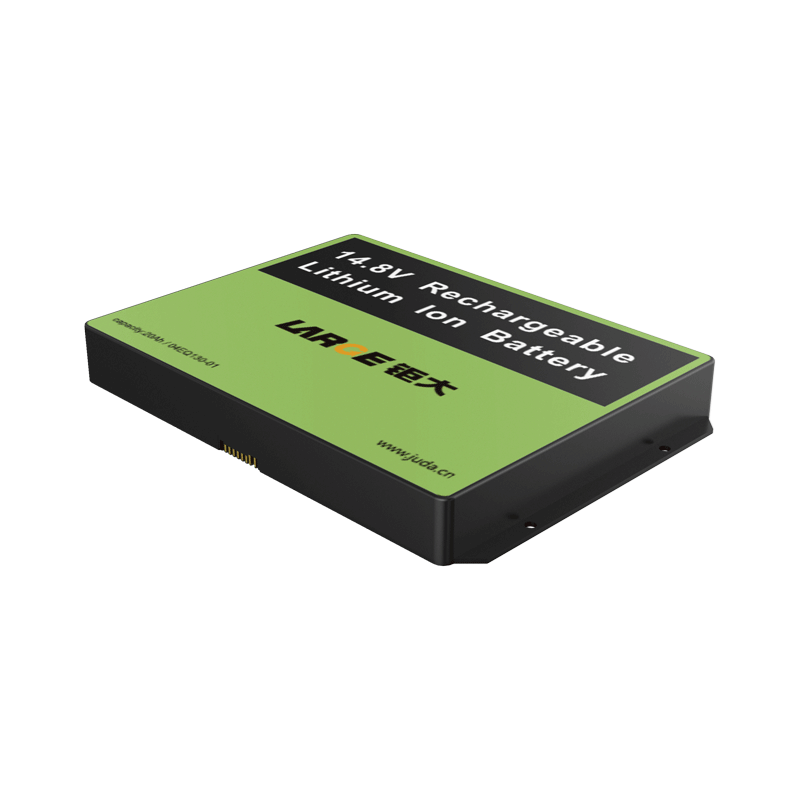

Custom Lithium ion Battery Pack

14.8V 11Ah 18650 low temperature battery for laser guidance equipment with SMBUS communication

  • Model number:04EQ062-01

  • Nominal voltage:14.8V

  • Nominal capacity:11000mAh

  • Battery cell:18650/3.7V/2.2Ah

  • Dimension:220×160×22(Max)

  • Application:laser guidance, guided missile, aerospace

Product Detail

Product number: 04EQ062-01

Cell model:18650/3.7V/2.2Ah

Battery specification: 18650-4S5P/14.8V/11Ah

Nominal voltage:14.8V

Nominal capacity:11Ah

Charging voltage: 16.8V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 5A

End-off voltage: 10V

Internal resistance: ≤200mΩ

Battery weight: 1200g

Product dimension: 220×160×22(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~20 ℃

Battery protection: PC/CNC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, etc.

Application field: laser guidance, guided missile, aerospace



Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside with CNC housing of PC material to satisfy the requirements of good security and nice reliability.

2. Working at low temperature: adopt military low temperature cell to make sure to work at -40℃.

3. Reliable connection: adopt square aviation connector, which is fast, safe and reliable.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
