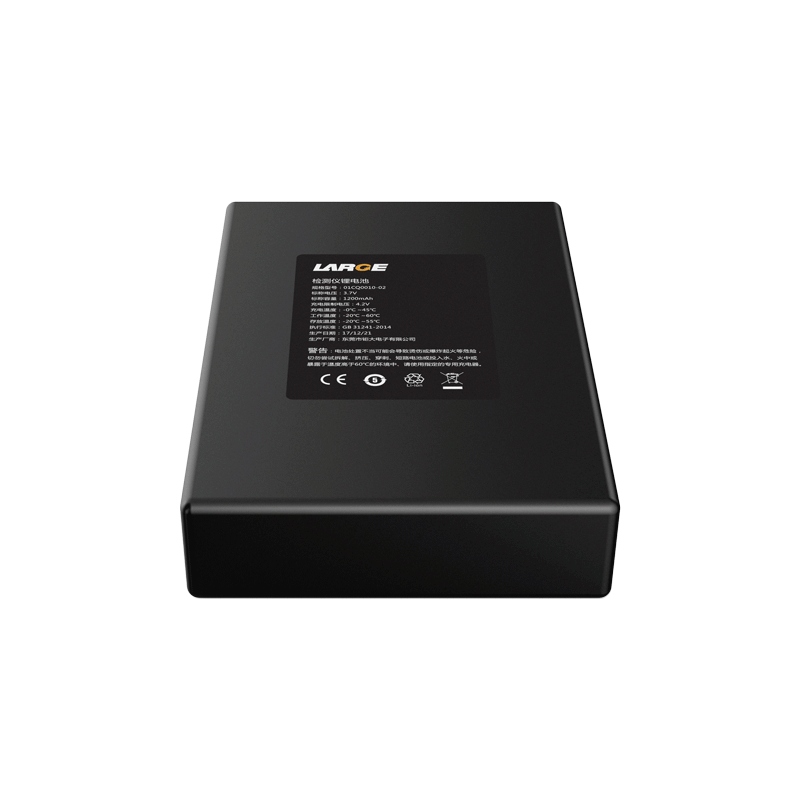

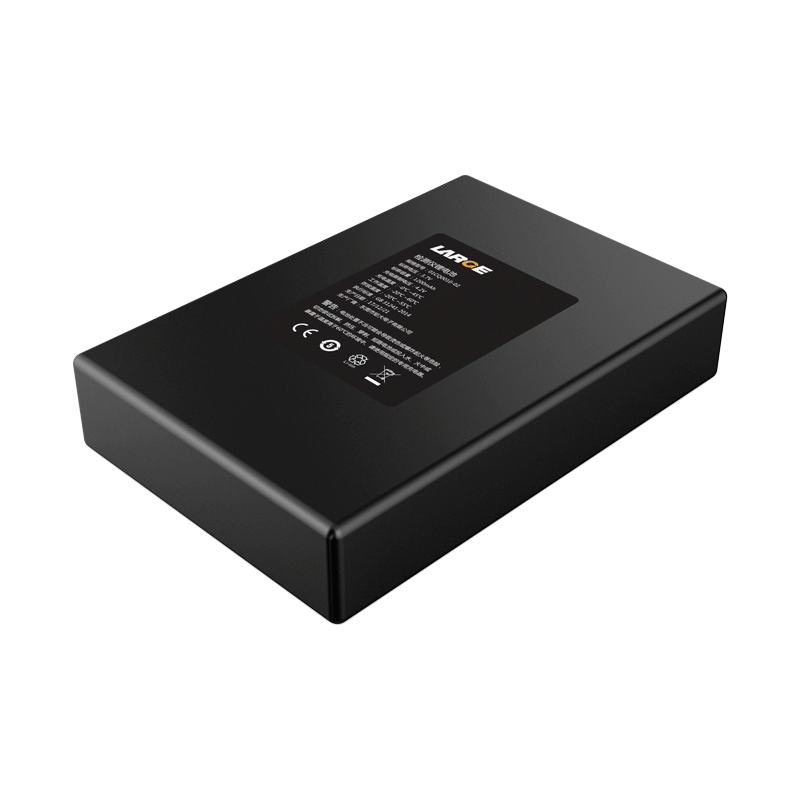

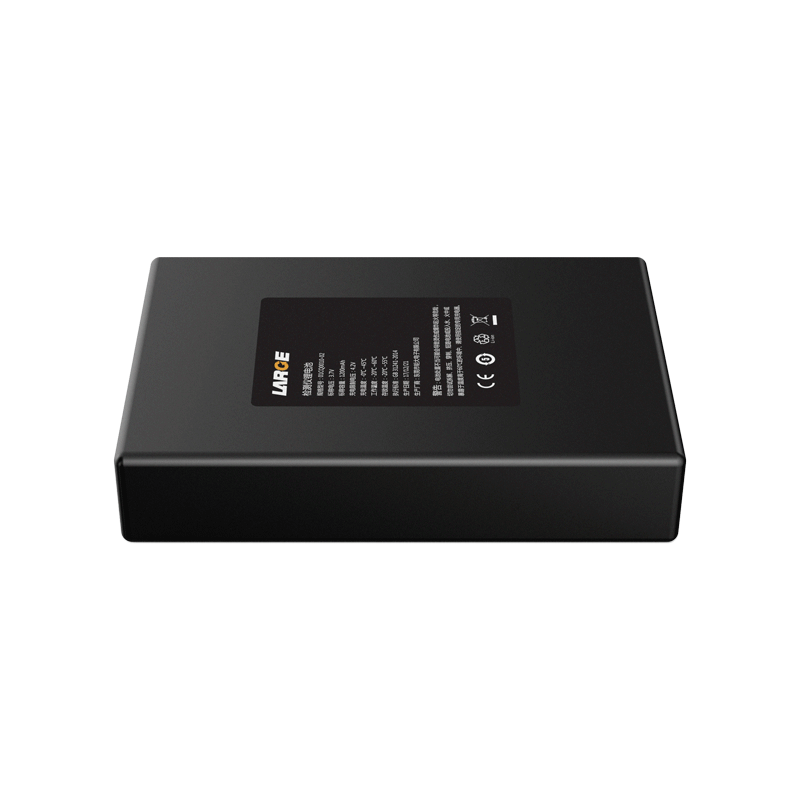

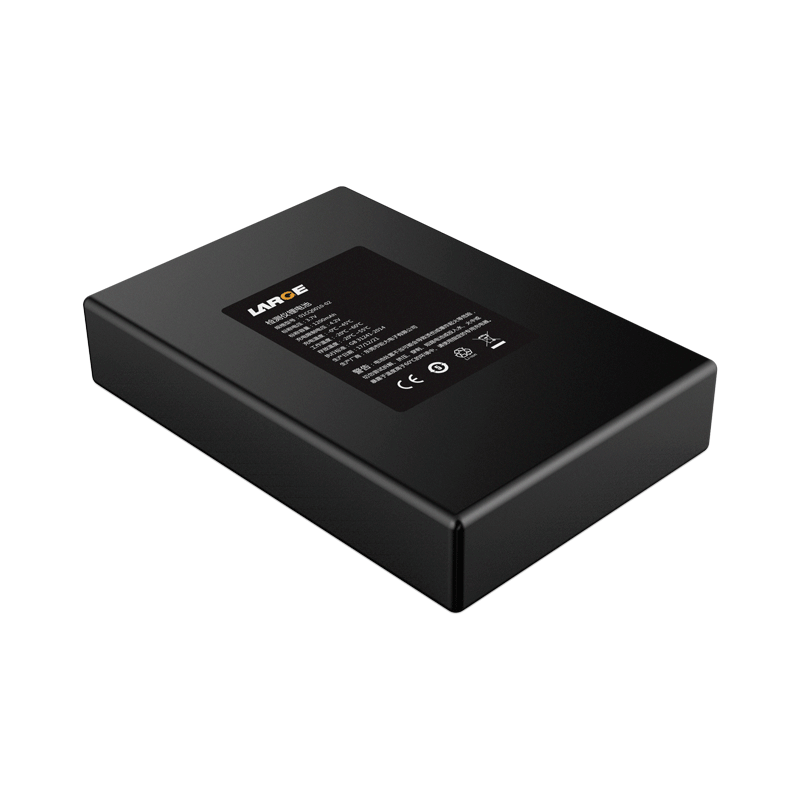

3.7V 1200mAh Lithium Ion Battery for Detector

Product Detail

Product number: 01CQ0010-02

Cell model:063450/3.7V/1200mAh

Battery specification: 063450-1S1P/3.7V/1200mAh

Nominal voltage:3.7V

Nominal capacity:1200mAh

Charging voltage: 4.2V

Charging current: ≤500mA

Discharging current: 500mA

Instant discharging current: 1.0A

End-off voltage: 3.0V

Internal resistance: ≤350mΩ

Battery weight: 25g

Product dimension: 53*34.5*7.0mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.

Application field: monitor, testing equipment

*
*
*
