Custom Lithium Ion Battery Pack

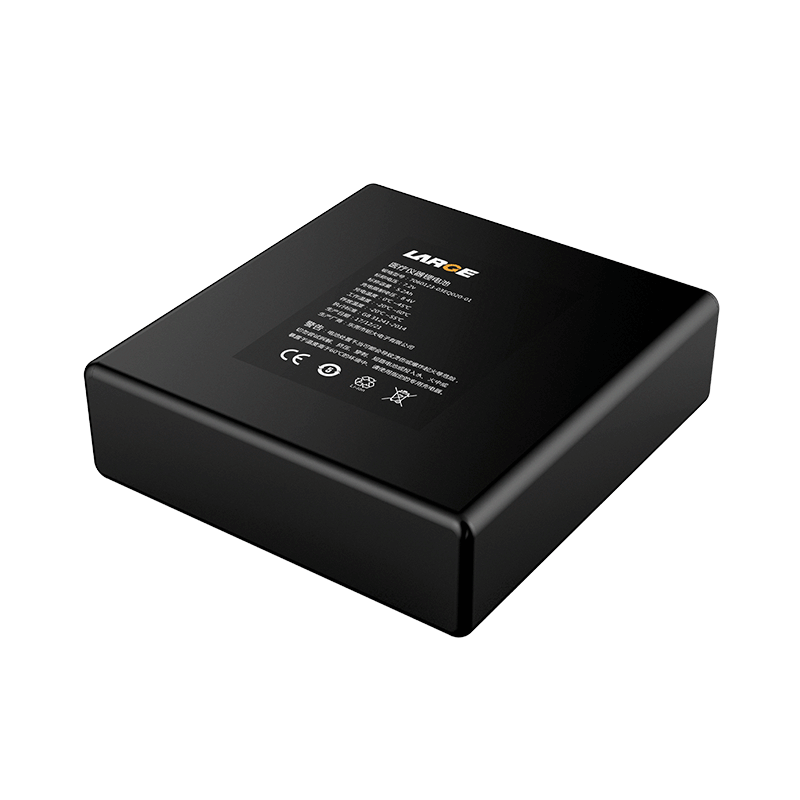

18650 7.2V 5200mAh Lithium Ion Battery Lishen Battery Medical Device Battery

  • Model number:03EQ020-01

  • Nominal voltage:7.2V

  • Nominal capacity:5200mAh

  • Battery cell:18650/3.6V/2600mAh

  • Dimension:74*72*22mm(Max)

  • Application:wide application, capacity display, industrial battery, all kinds of portable medical equipment, etc.

Product Detail

Product number: 03EQ020-01

Cell model:18650/3.6V/2600mAh

Battery specification: 18650-2S3P/7.2V/5200mAh

Nominal voltage:7.2V

Nominal capacity:5.2Ah

Charging voltage: 8.4V

Charging current: ≤1A

Discharging current: 1.0A

Instant discharging current: 3A

End-off voltage: 6V

Internal resistance: ≤100mΩ

Battery weight: 210g

Product dimension: 74*72*22mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~55 ℃

Temperature protection: 60℃±5℃

Battery case: outsourcing PVC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: wide application, capacity display, industrial battery, all kinds of portable medical equipment, etc.

*
*
*
