Custom Lithium ion Battery Pack

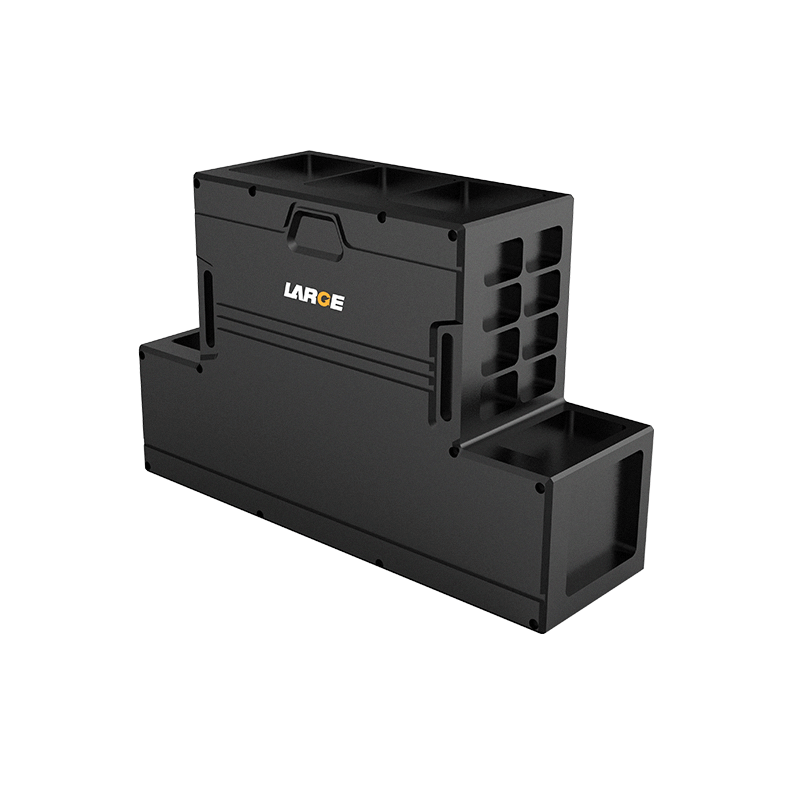

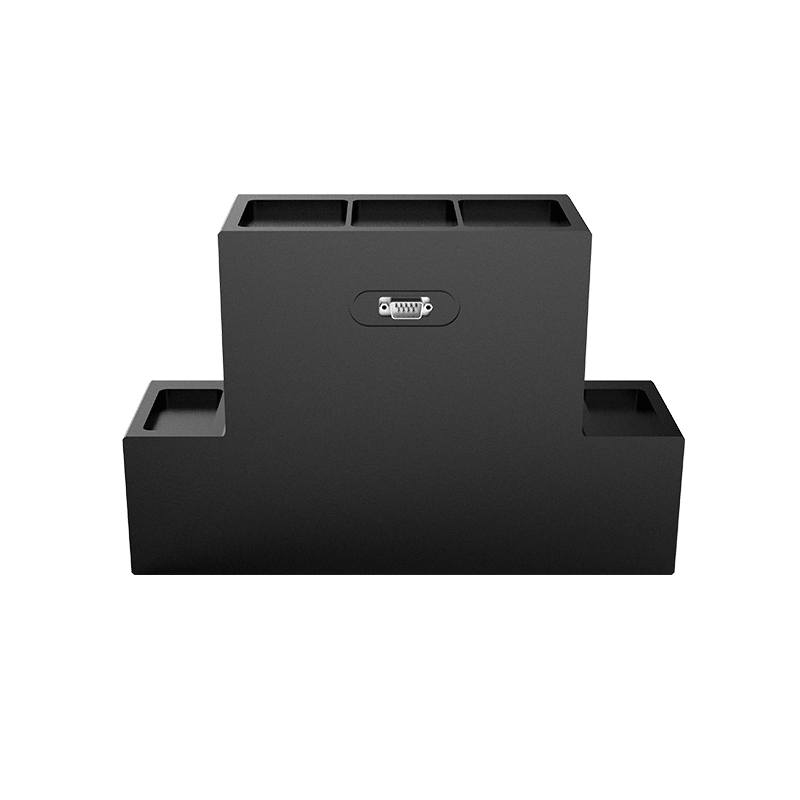

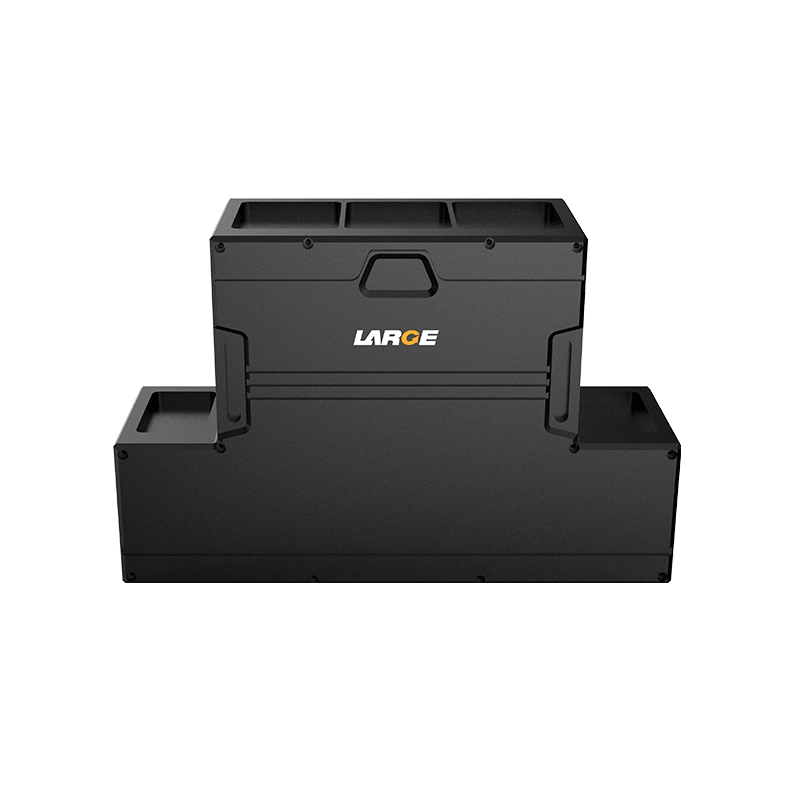

18650 48V 20Ah Energy Storage Battery Sanyo Battery for Special Purpose Robot with Can Communication

  • Model number:32AQ028-01

  • Nominal voltage:48.0V

  • Nominal capacity:20000mAh

  • Battery cell:18650/3500mAh/3.6V

  • Dimension:214*180*149mm(Max)

  • Application:industrial robot

Product Detail

Product number: 32AQ028-01

Cell model:18650/3500mAh/3.6V

Battery specification: 18650-13S6P/48V/20Ah

Nominal voltage:48V

Nominal capacity:20Ah

Charging voltage: 54.6V

Charging current: ≤10A

Discharging current: 20A

Instant discharging current: 40A

End-off voltage: 32.5V

Internal resistance: ≤200mΩ

Battery weight: 4Kg

Product dimension: 214*180*149mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~45 ℃

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, Can communication, etc.

Application field: industrial robot


Product features

1. Current: maximum continuous discharge 60A

2. Data communication management: adopt imported software management chip with CAN communication function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. Battery characteristics: adopt single battery with 3500mAh large capacity, which is safe and reliable.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
