Custom Lithium Ion Battery Pack

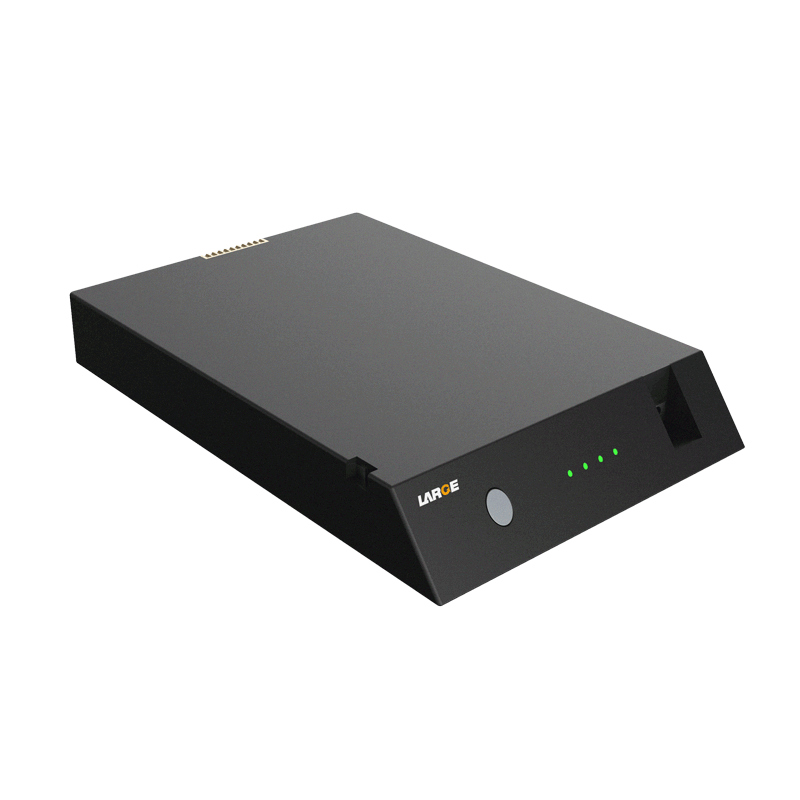

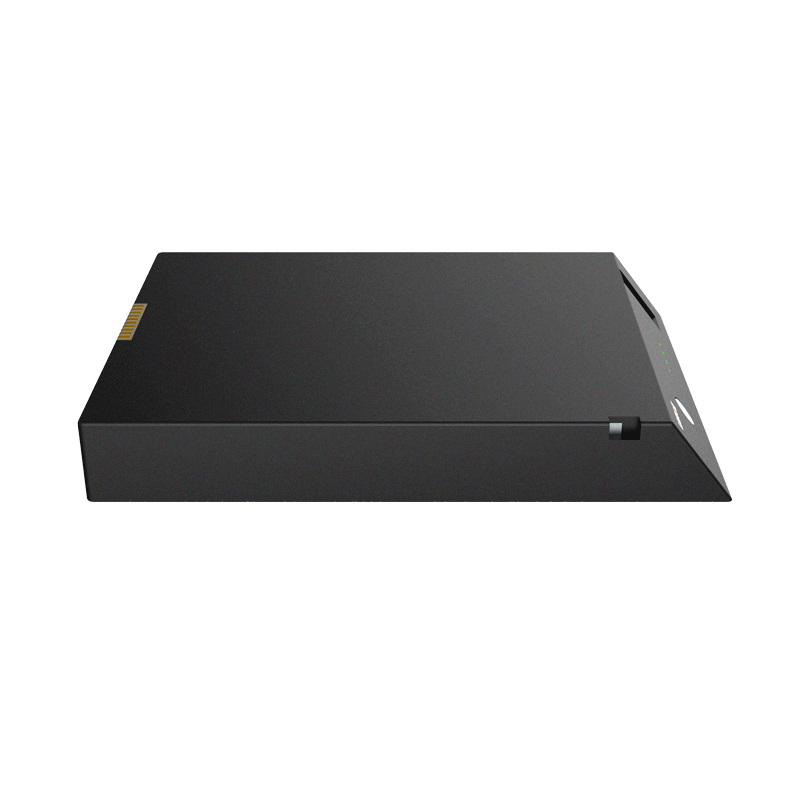

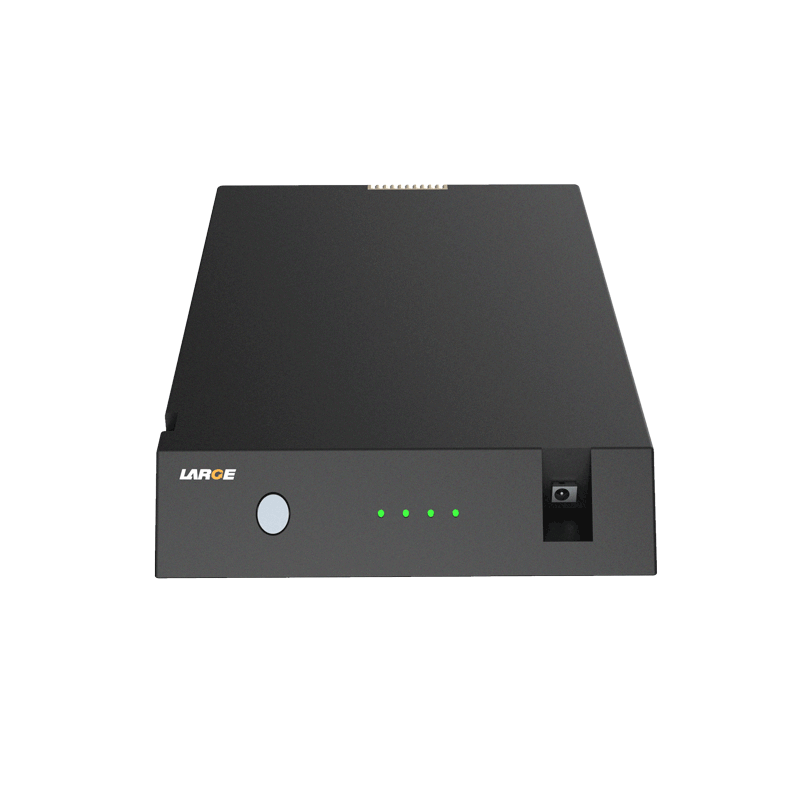

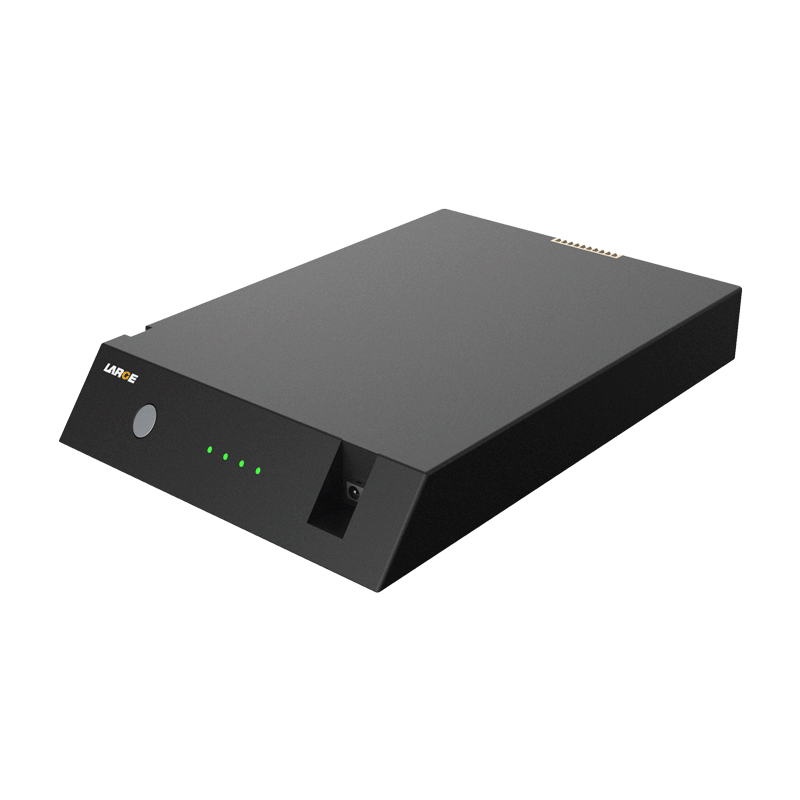

10.8V 13.4Ah 18650 Lithium Battery for Educational Robotics

  • Model number:04EQ210-01

  • Nominal voltage:10.8V

  • Nominal capacity:13400mAh

  • Battery cell:18650/3.6V/3.35Ah

  • Dimension:158×121×25(Max)

  • Application:robot, AGV, RGV

Product Detail

Product number: 04EQ210-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650/3S4P/10.8V/13.4Ah

Nominal voltage:10.8V

Nominal capacity:13.4Ah

Charging voltage: 12.8V

Charging current: ≤6A

Discharging current: 10A

Instant discharging current: 15A

End-off voltage: 9V

Internal resistance: ≤200mΩ

Battery weight: 1Kg

Product dimension: 158×121×25(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~40℃

Temperature protection: 65℃±5℃

Battery case: aluminium alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection and equilibrium.

Application field: robot, AGV, RGV


Product features

1. Power display: check the battery status directly by LED.

2. Waterproof aviation connector: adopt waterproof aviation connector, which is safe and reliable.

3. Communication interface: adopt I2C communication protocol, which can read battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
