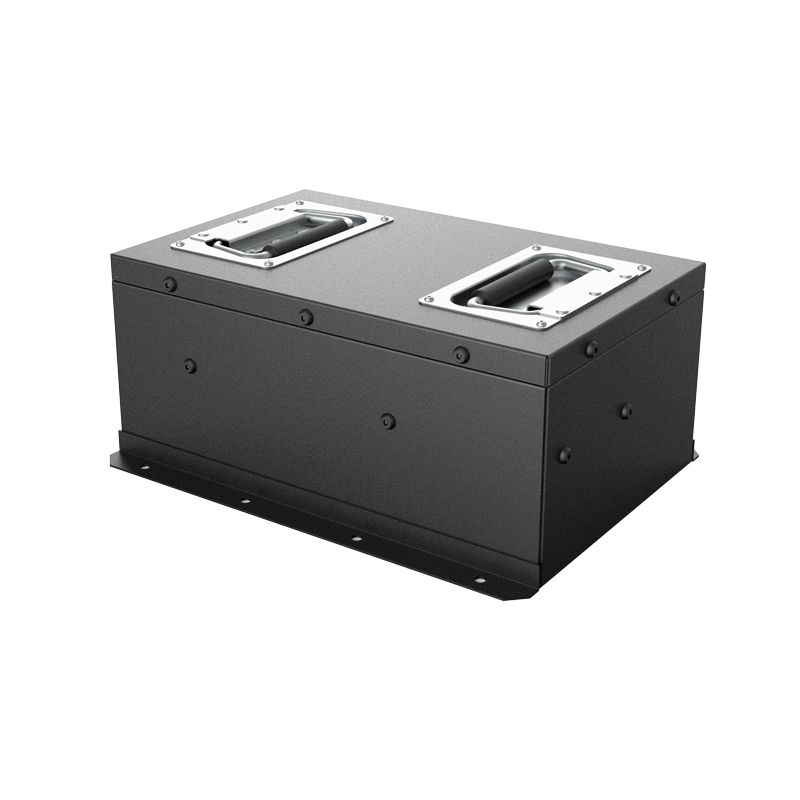

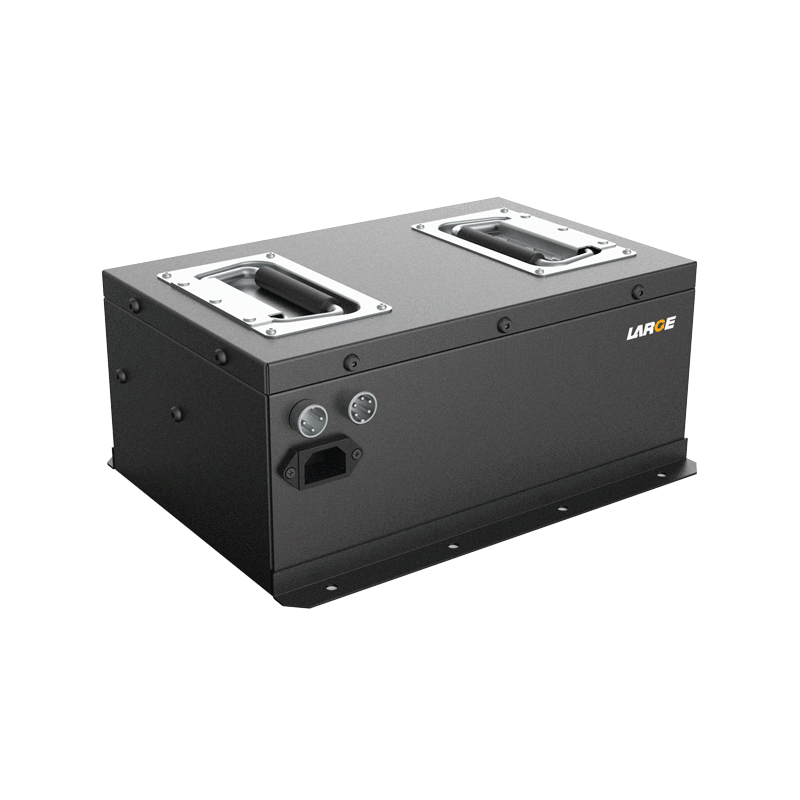

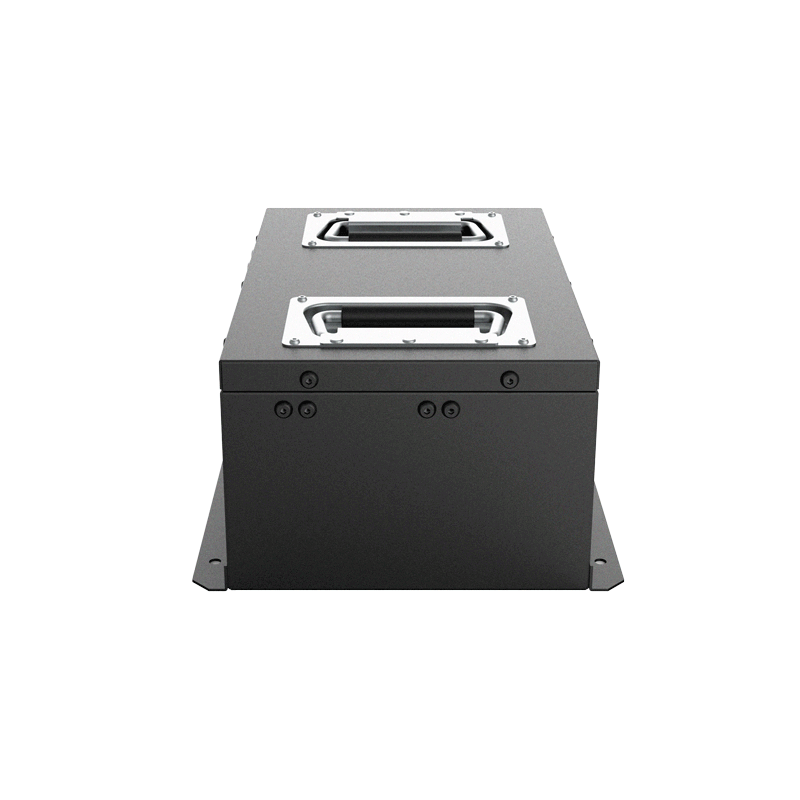

26650 25.6V 19.2Ah LiFePO4 Storage Battery for Backup Power of Medical Device
Product Number:
40DZ002-01A
Nominal voltage:
25.6V
Nominal capacity:
19.2Ah
Battery Configuration:
26650-8S6P
Dimension:
300 × 190 × 130 mm (Max)
Application:
medical devices
IP65 Waterproof Protection, 485 Communication Support, Reverse Connection Protection
Product Overview
This battery is designed for medical devices, supporting continuous operation and reliable power delivery in demanding healthcare environments. Featuring IP65 waterproof protection, 485 communication, and stable high-current output, it ensures safe and long-lasting performance for critical medical applications.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 40DZ002-01A |
| Cell Model | 26650/3.2V/3.2Ah |
| Battery Configuration | 26650-8S6P |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 19.2Ah |
| Rated Energy | 491.52Wh |
| Charging Voltage | 100-245VAC 50HZ/60HZ |
| Standard Charging Current | ≤5A |
| Standard Discharge Current | 15A |
| Max Continuous discharge current | 60A |
| Discharge Cut-off Voltage | 16V |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～45℃ |
| Dimensions | 300 × 190 × 130 mm (Max) |
| Weight | 7.5kg |
| Battery Case | Metal Plate Housing |
| Communication Protocol | 485 MOSBUS Protocol |
| Protection Rating | IP65 |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Temperature Protection, Cell Balancing, Reverse Connection Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
