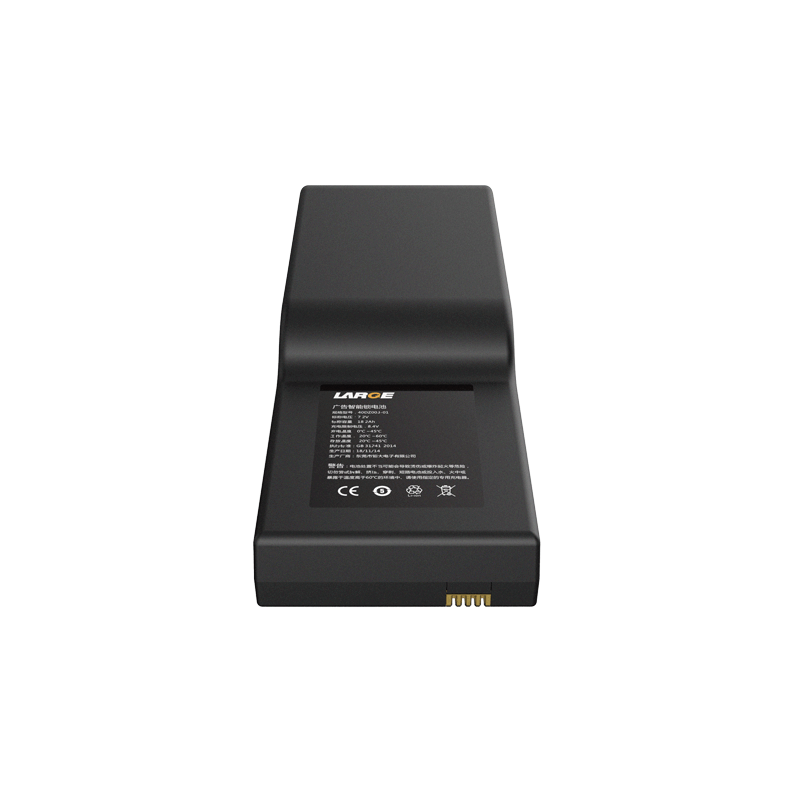

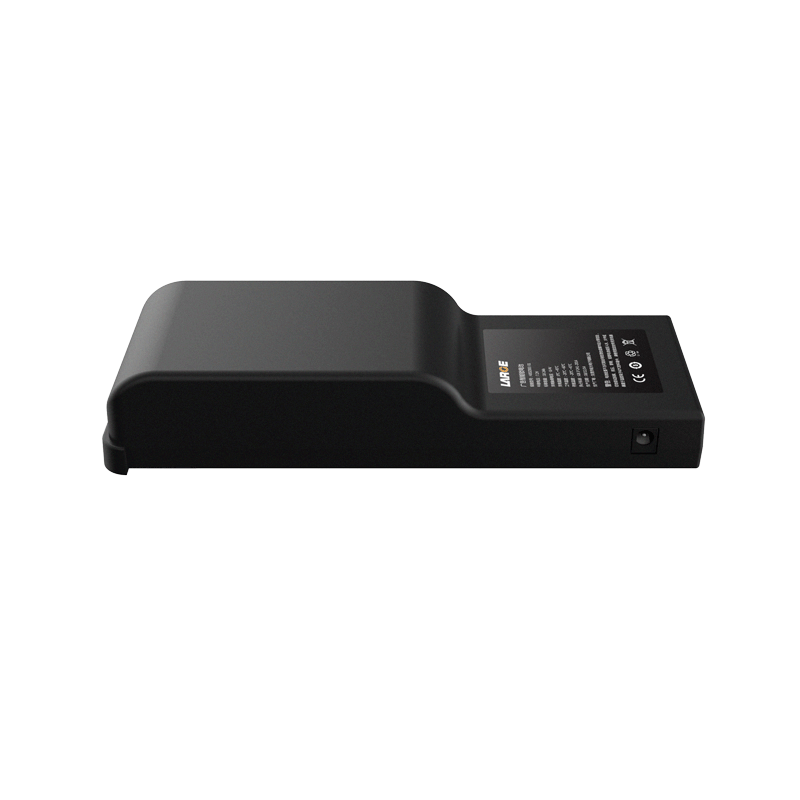

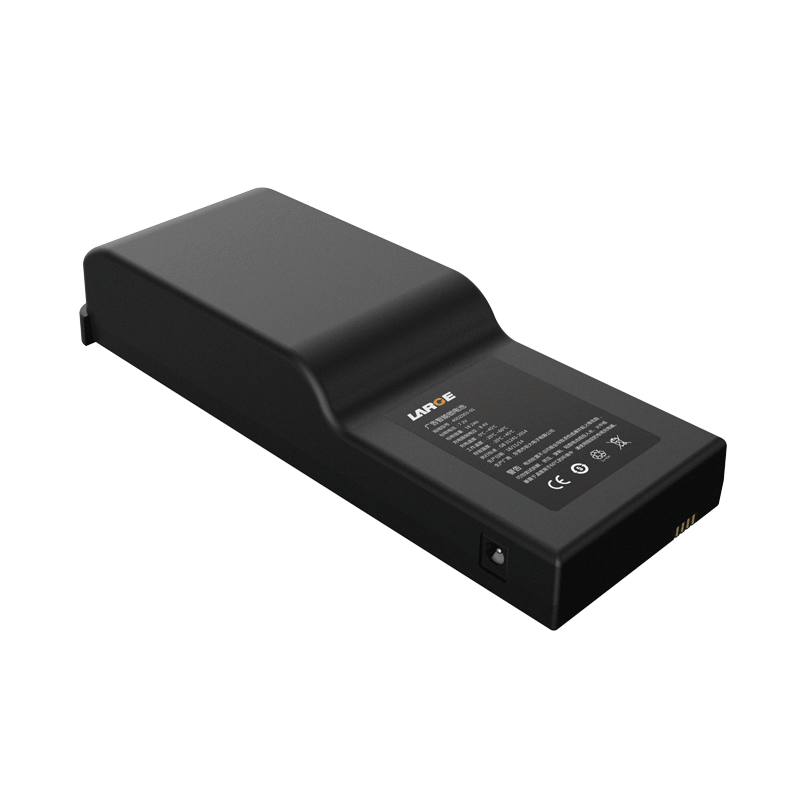

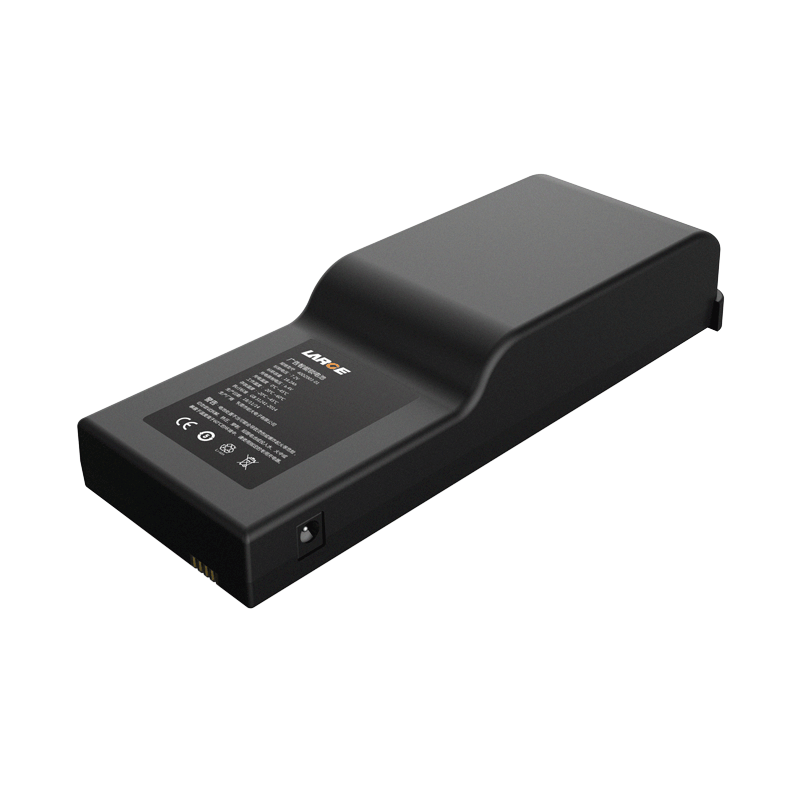

7.2V/18.2AH Lithium Battery for Advertising Electronic Lock

Product Detail

7.2V/18.2AH Lithium Battery for Advertising Electronic Lock


Product number: 40DZ003-01

Cell model:18650/3.6V/2.6Ah

Battery specification: 2S7P/7.2V/18.2Ah

Nominal voltage:7.2V

Nominal capacity:18.2Ah

Charging voltage: 8.4V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 8A

End-off voltage: 5.4V

Internal resistance: ≤150mΩ

Battery weight: 700g

Product dimension: 39*74*211.8 mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45 ℃

Battery case: plastic case

Communication: no

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: advertising electronic lock


Product features

· 1. Small self-discharge.

· 2. Charge with separator

· 3. The battery pack has good security and long cycle life.

· 4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
