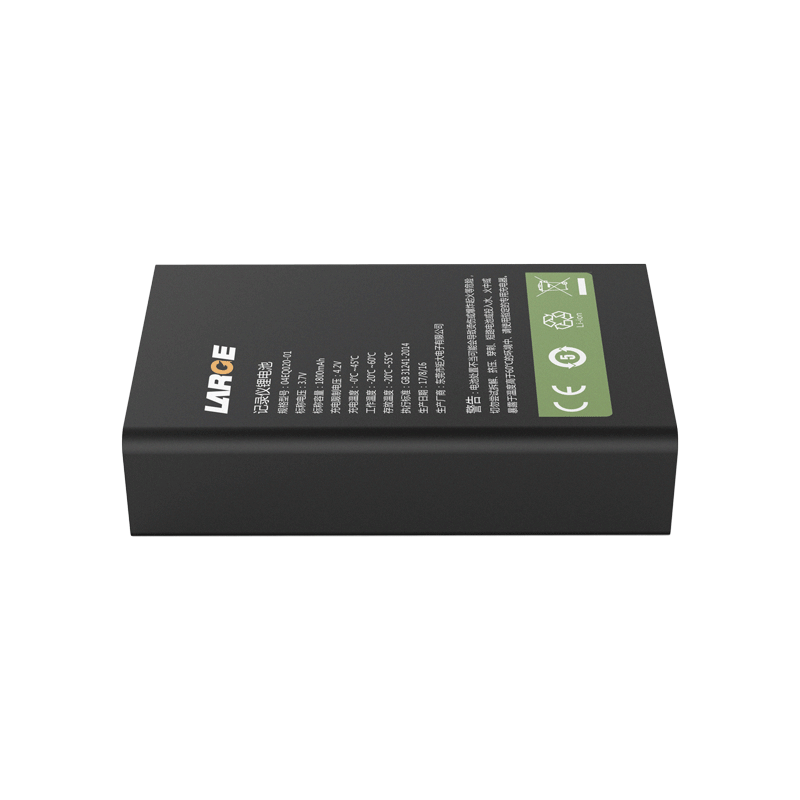

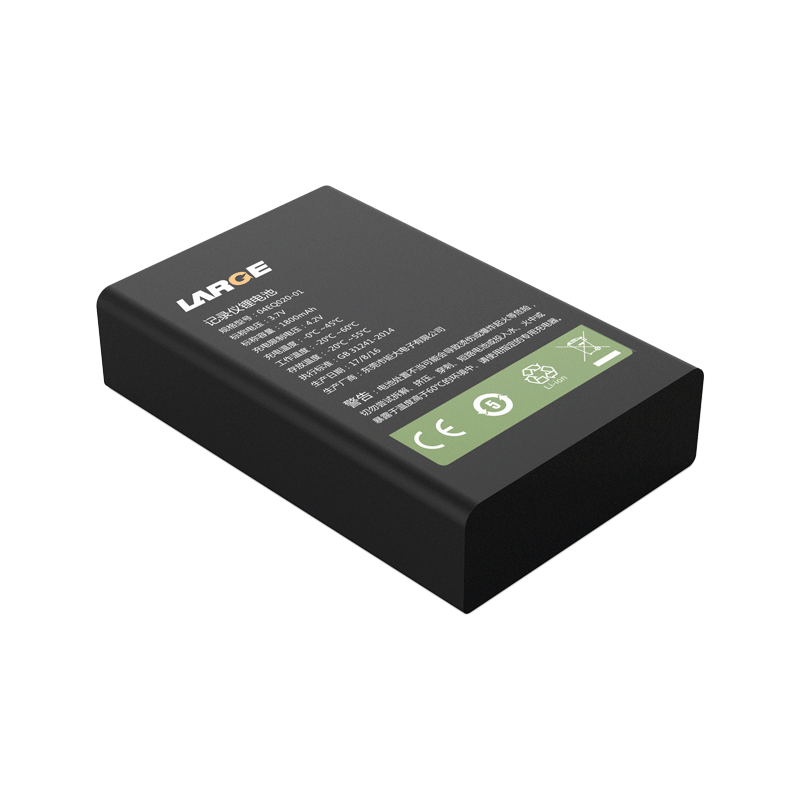

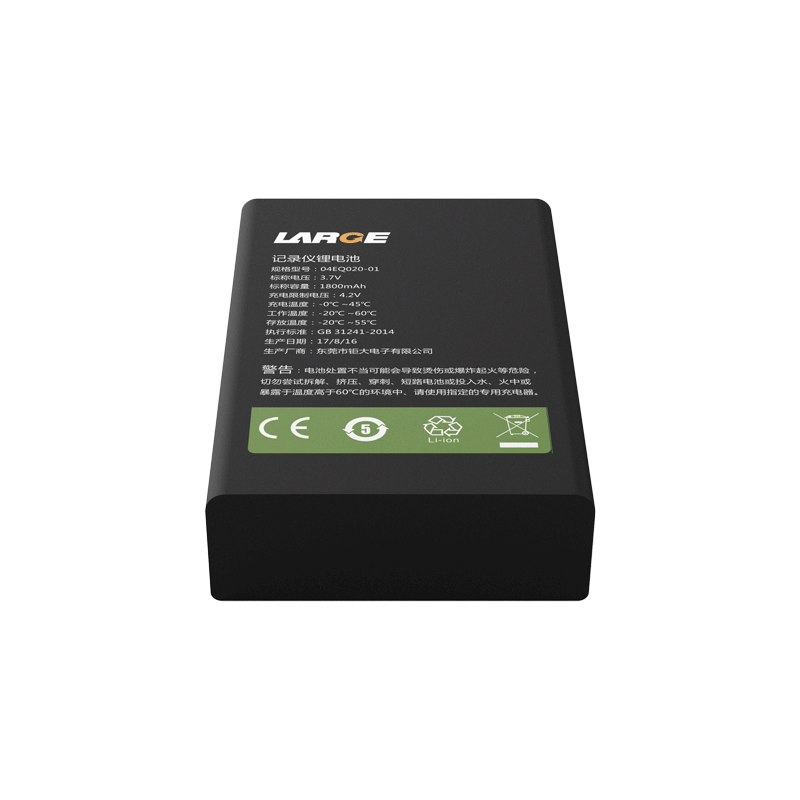

3.7V 1800mAh Lithium Ion Battery for Recorder

Product Detail

Product number: 04EQ020-01

Cell model:103450/3.7V/1800mAh

Battery specification: 103450/1S1P/3.7V/1800mAh

Nominal voltage:3.7V

Nominal capacity:1800mAh

Charging voltage: 4.2V

Charging current: ≤0.9A

Discharging current: 1A

Instant discharging current: 2A

End-off voltage: 2.5V

Internal resistance: ≤180mΩ

Battery weight: 35g

Product dimension: 54×35×12.5(Max)

Charging temperature:0~45℃

Discharging temperature: -30~60℃

Storage temperature: -20~35℃

Temperature protection:/

Battery case: /

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: recorder

*
*
*
