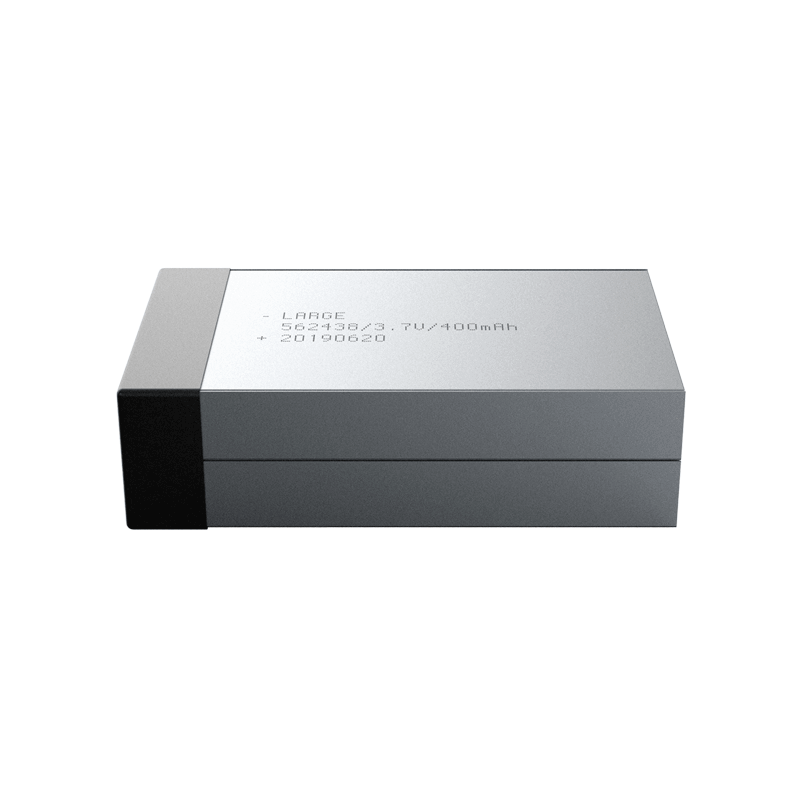

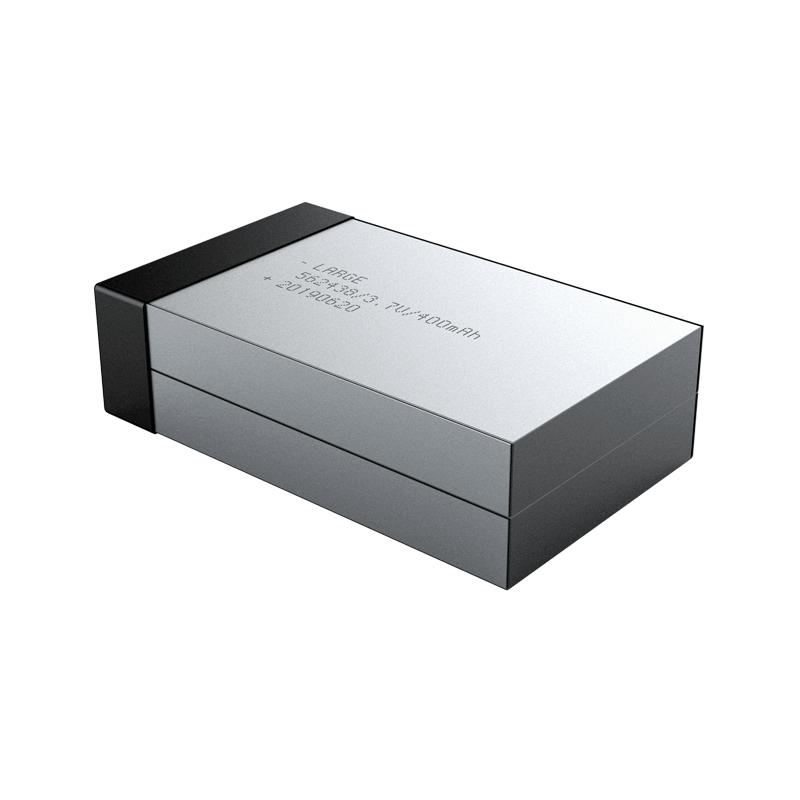

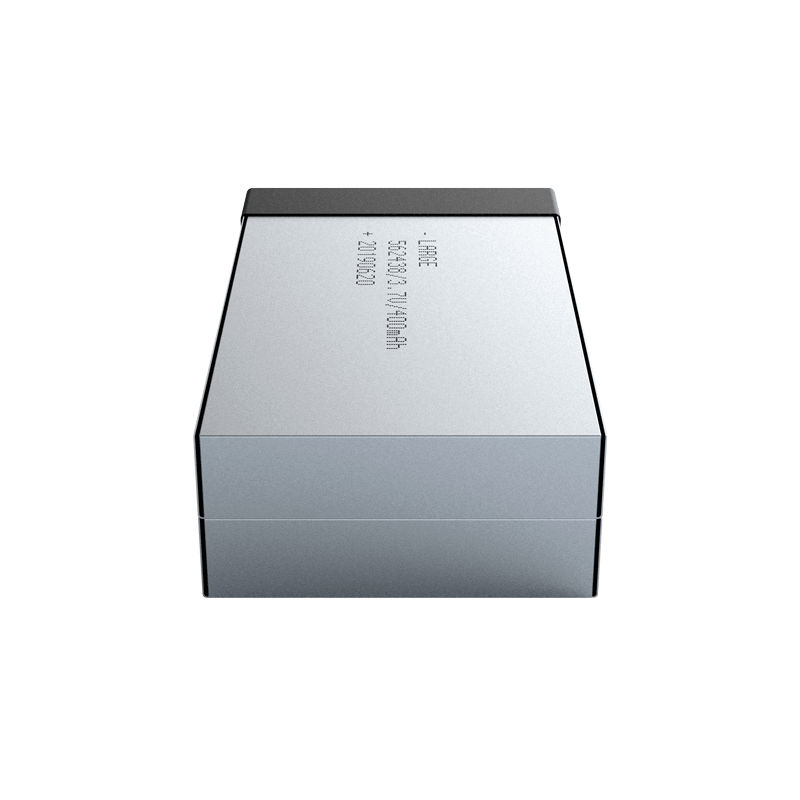

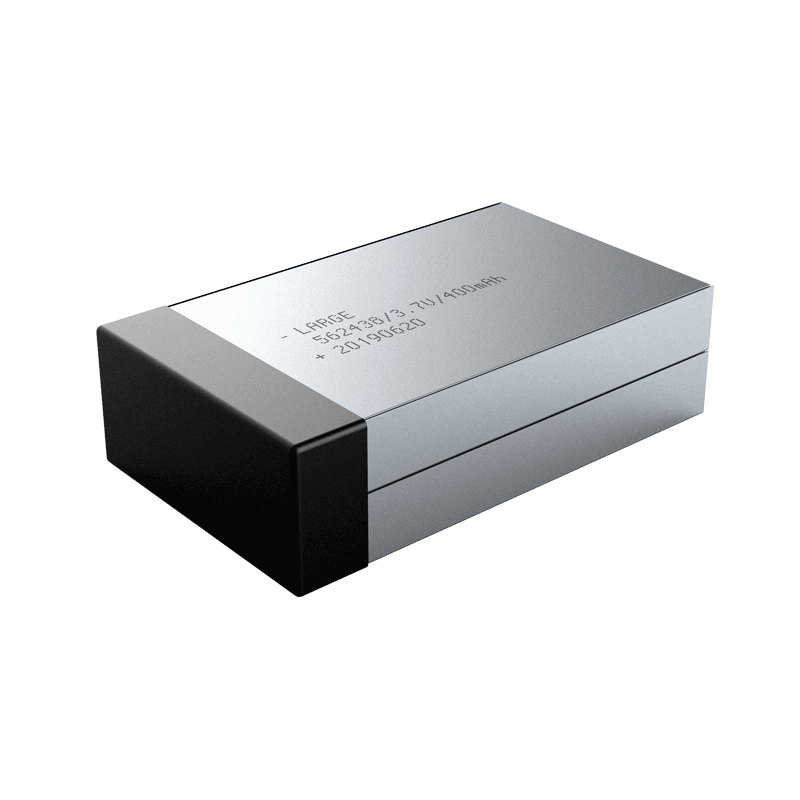

7.4V 400mAh Polymer Battery Jinsaier Battery for Acoustic Equipment

Product Detail

Product number: 08DQ0009-01

Cell model:562438/3.7V/400mAh

Battery specification: 562438-2S1P/7.4V/400mAh

Nominal voltage:7.4V

Nominal capacity:400mAh

Charging voltage: 8.4V

Charging current: ≤0.4A

Discharging current: 0.6A

Instant discharging current: 1.5A

End-off voltage: 6V

Internal resistance: ≤240mΩ

Battery weight: 0.01Kg

Product dimension: 43*26*11mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: common soft package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: acoustic equipment
