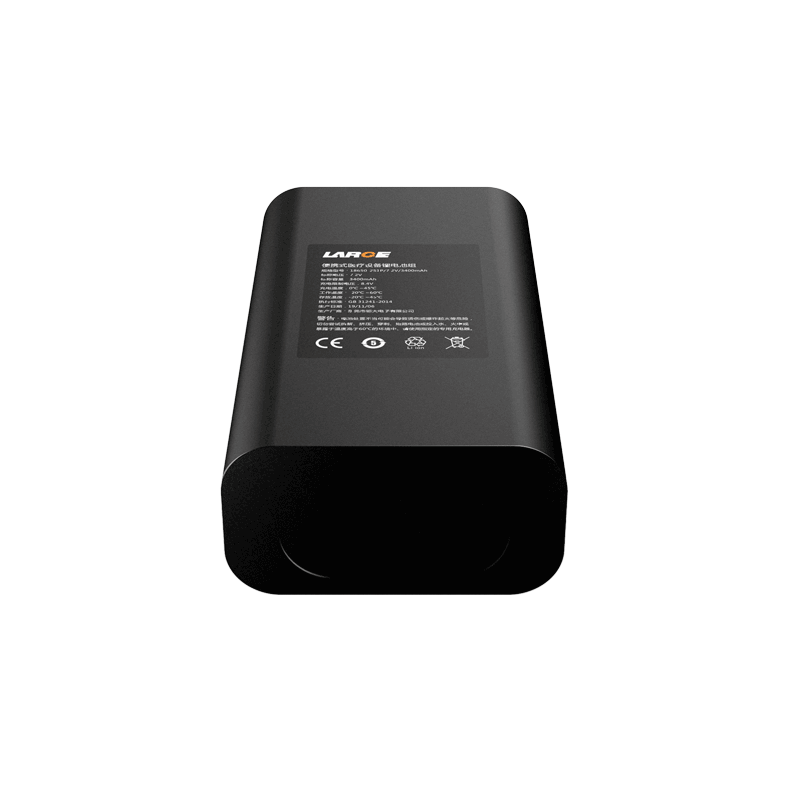

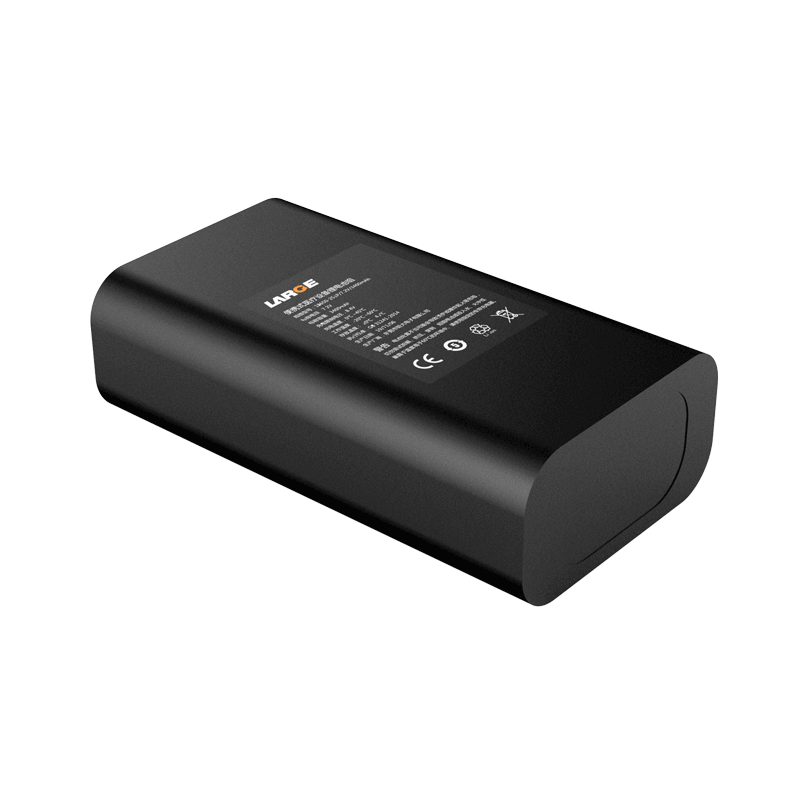

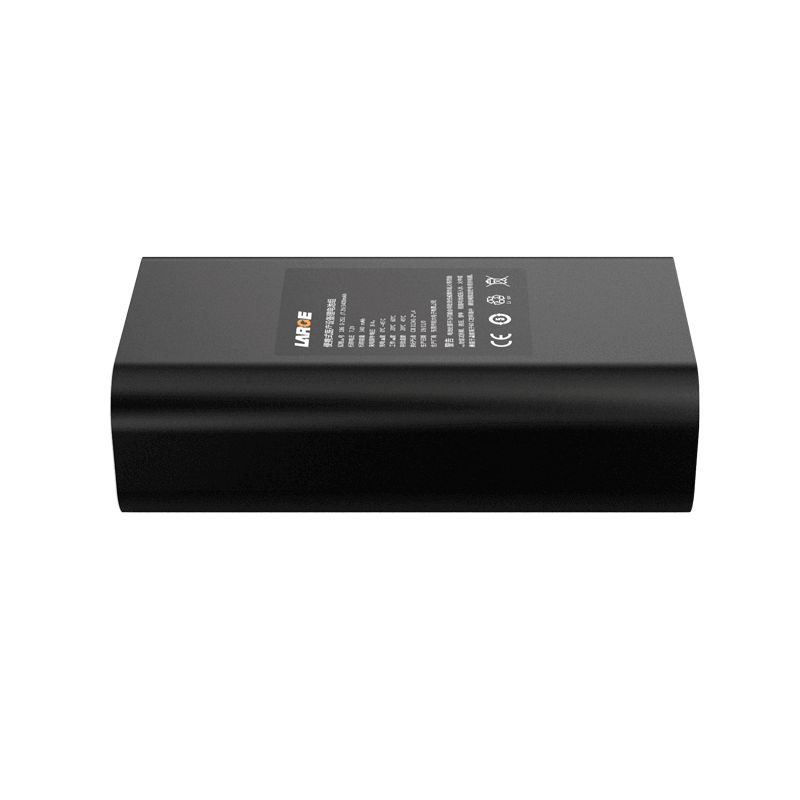

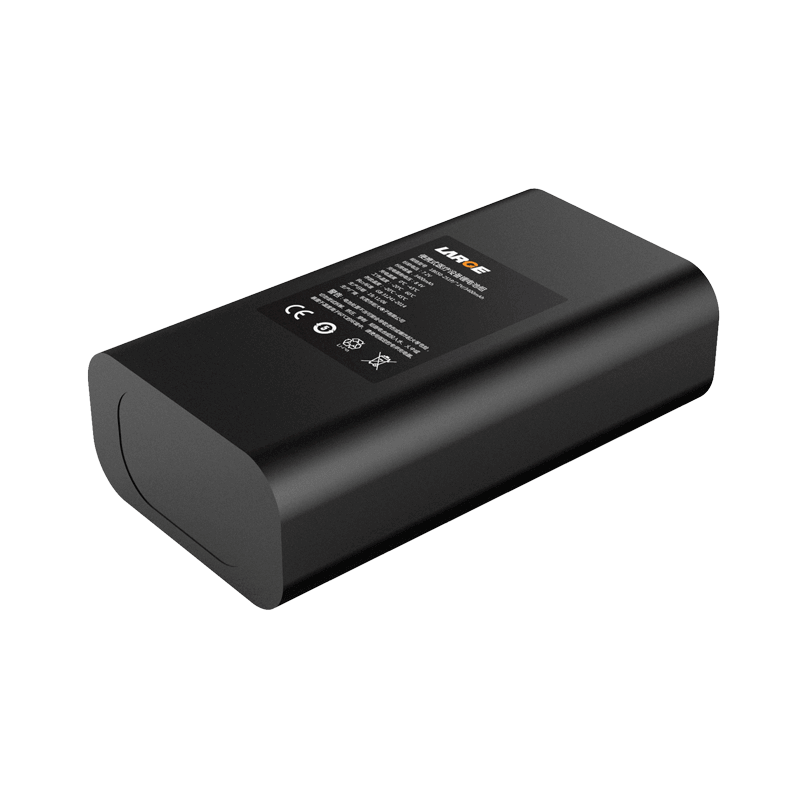

18650 7.2V 3400mAh Lithium Ion Battery Samsung Battery for Portable Medical Device

18650 7.2V 3400mAh Lithium Ion Battery Samsung Battery for Portable Medical Device
18650 7.2V 3400mAh Lithium Ion Battery Samsung Battery for Portable Medical Device
18650 7.2V 3400mAh Lithium Ion Battery Samsung Battery for Portable Medical Device
18650 7.2V 3400mAh Lithium Ion Battery Samsung Battery for Portable Medical Device

Product Detail

Product number: 40DZ008-04

Cell model:18650/3.6V/3400mAh

Battery specification: 18650-2S1P/7.2V/3400mAh

Nominal voltage:7.2V

Nominal capacity:3400mAh

Charging voltage: 8.4V

Charging current: ≤1.7A

Discharging current: 1.74A

Instant discharging current: 3-6A

End-off voltage: 6V

Internal resistance: ≤200mΩ

Battery weight: 120g

Product dimension: 68×40×22mm(max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: PVC encapsulation

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable medical device


Product features

It has small power consumption.

Seiko or Ricoh protection chip

The battery pack has good security and long cycling life.

The battery pack has long cycling life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
