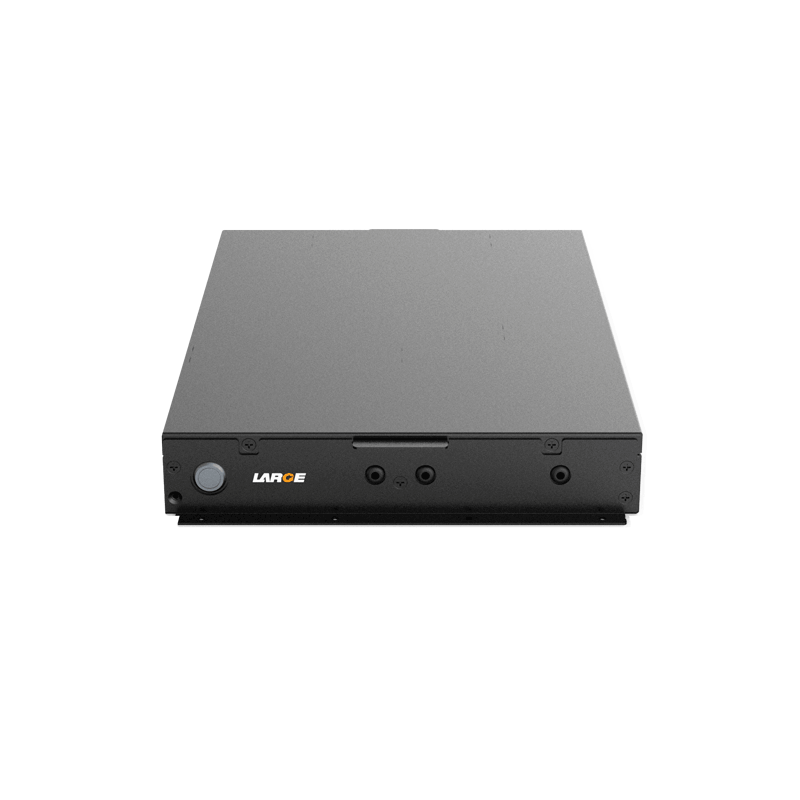

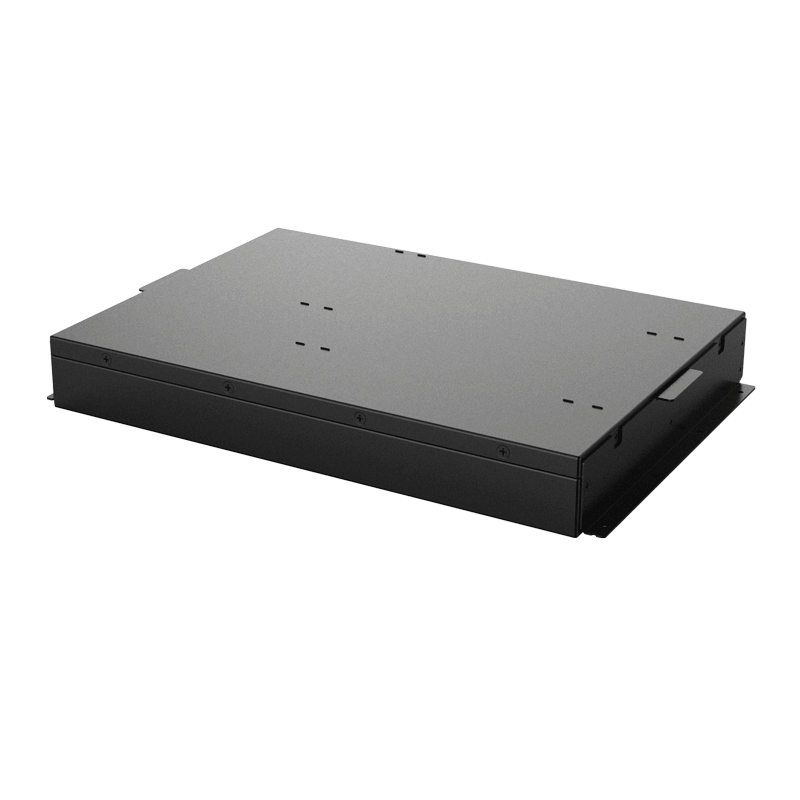

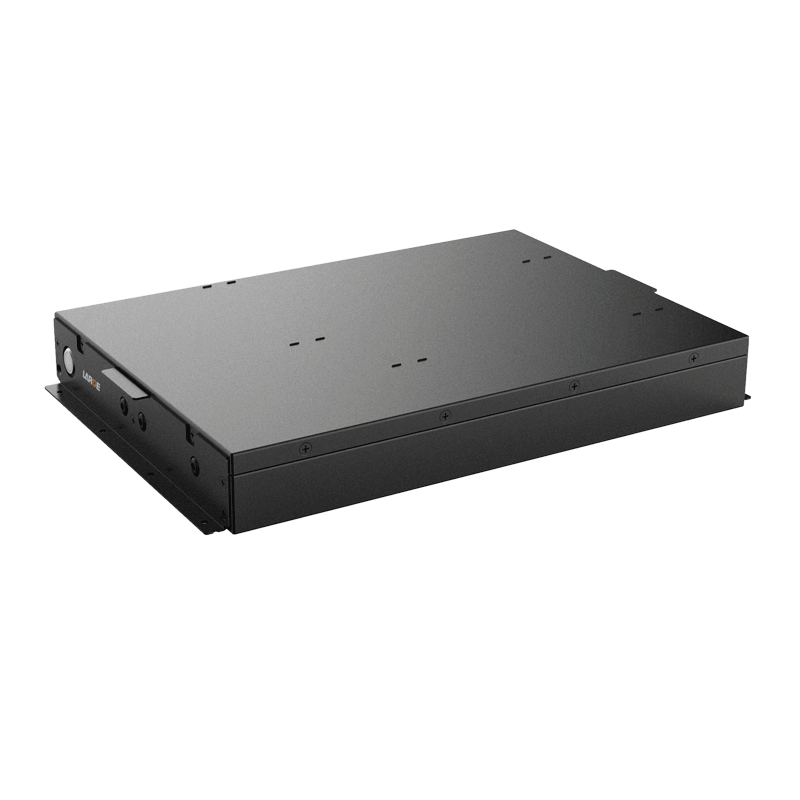

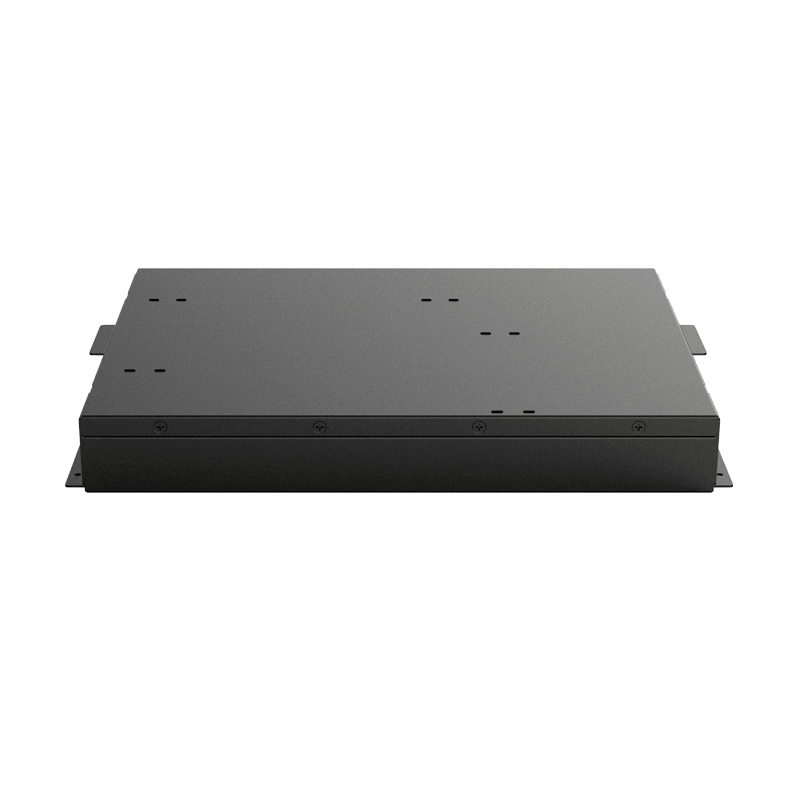

10Ah 97.2V 18650 Battery for UPS Emergency Power Supply

Product number: 03KQ100-01

Cell model：18650-2900mAh-3.6V

Battery specification: 18650-27S4P-11.6Ah-97.2V

Nominal voltage：97.2V

Nominal capacity：11.6Ah

Charging voltage: 110.7V

Charging current: ≤5A

Discharging current: 2.2A

Instantaneous discharge current: 35A

End-off voltage: 67.5V

Internal resistance: ≤350mΩ

Battery weight: 8200g

Product dimension: 431*290*56mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery package: aluminum alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature, overcurrent protection and ESD protection.

Application field: rescue start-up equipment, low temperature starting dynamo, low temperature start motor, low temperature multiplier discharge equipment

Product features

Aluminum shell increases the reliability and solidity of the battery.

Output terminal: high temperature silicone wire increases the conductive reliability and stability.

Battery management: adopt imported NSK protective chip, which has good stability, high precision monitoring, accurate control with ESD protection and temperature protection, so as to eliminate the security risks.

The battery pack has good security, nice low-temperature discharge performance and great low temperature ratio. It can discharge at -20℃ over 70%.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
