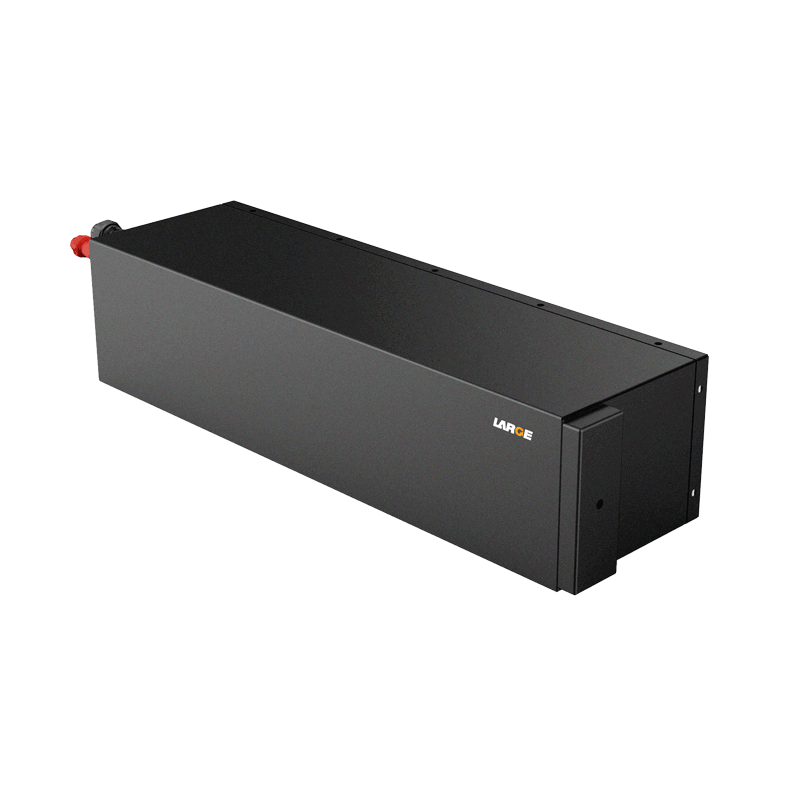

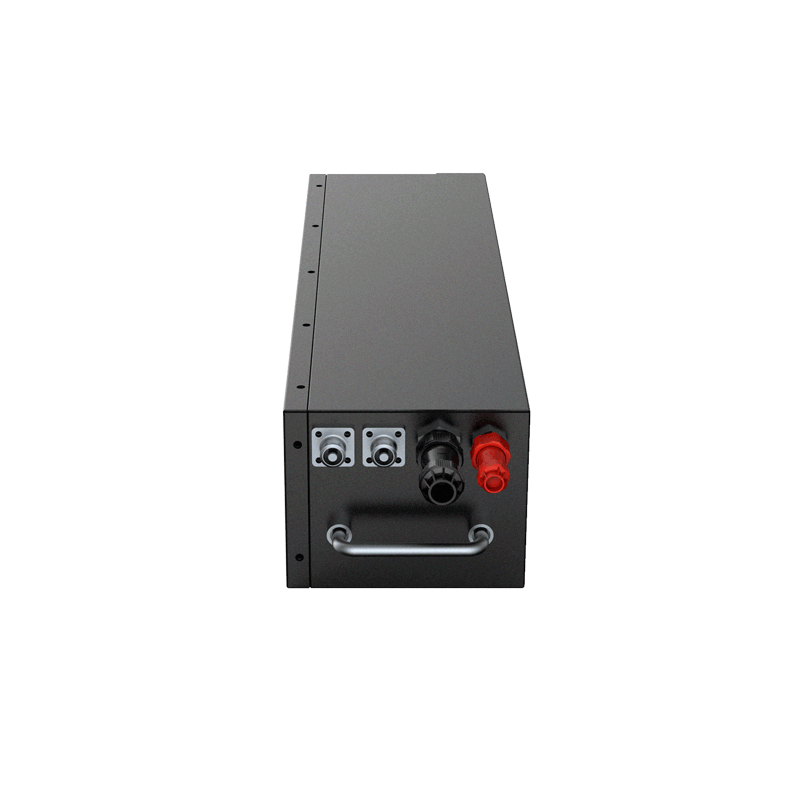

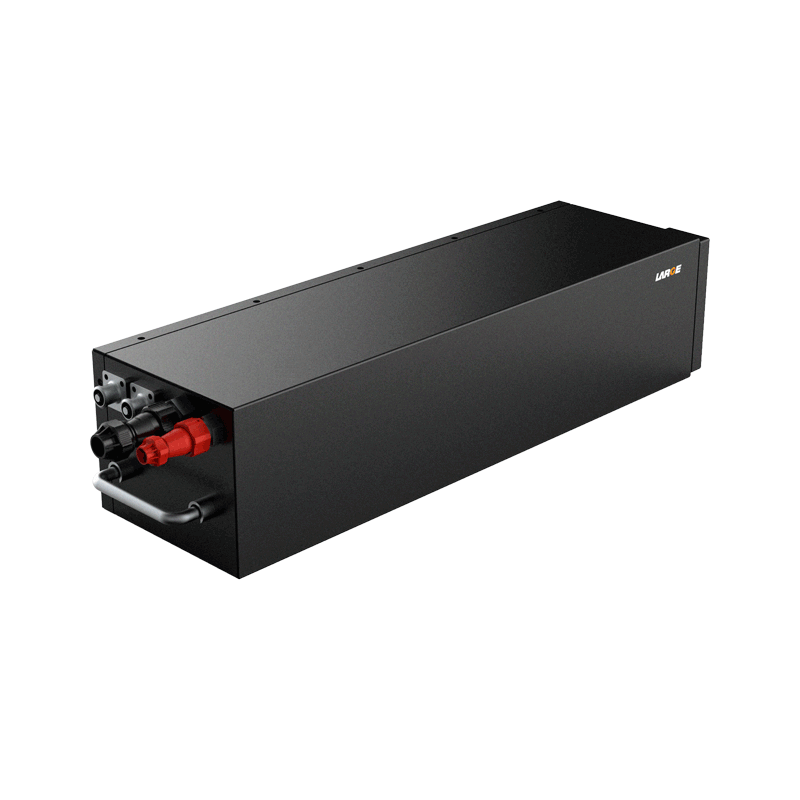

32V 35Ah LiFePO4 Battery for Industrial Robot with 485 Communication Protocol

32V 35Ah LiFePO4 Battery for Industrial Robot with 485 Communication Protocol
32V 35Ah LiFePO4 Battery for Industrial Robot with 485 Communication Protocol
32V 35Ah LiFePO4 Battery for Industrial Robot with 485 Communication Protocol
32V 35Ah LiFePO4 Battery for Industrial Robot with 485 Communication Protocol

Product Detail

Product number: 39DZ003-06

Cell model:26650-3.2V-3.5Ah

Battery specification: 26650-10S10P-35Ah-32.0V

Nominal voltage:32.0V

Nominal capacity:35.0Ah

Charging voltage: 36.0V

Charging current: ≤10A

Discharging current: 50.0A

Instant discharging current: 60.0A

End-off voltage: 20.0V

Internal resistance: ≤240mΩ

Battery weight: 16.0Kg

Product dimension: 530.0*150.0*127.0(mm)±2mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45℃

Battery case: general industrial grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: industrial robot


Product features

1. Communication protocol: 485 (standard serial port) communication protocol can transmit product data.

2. Cell characteristics: power type LiFePO4 battery pack

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. High current output ensures the safety of industrial robots in fire fighting.

*
*
*
