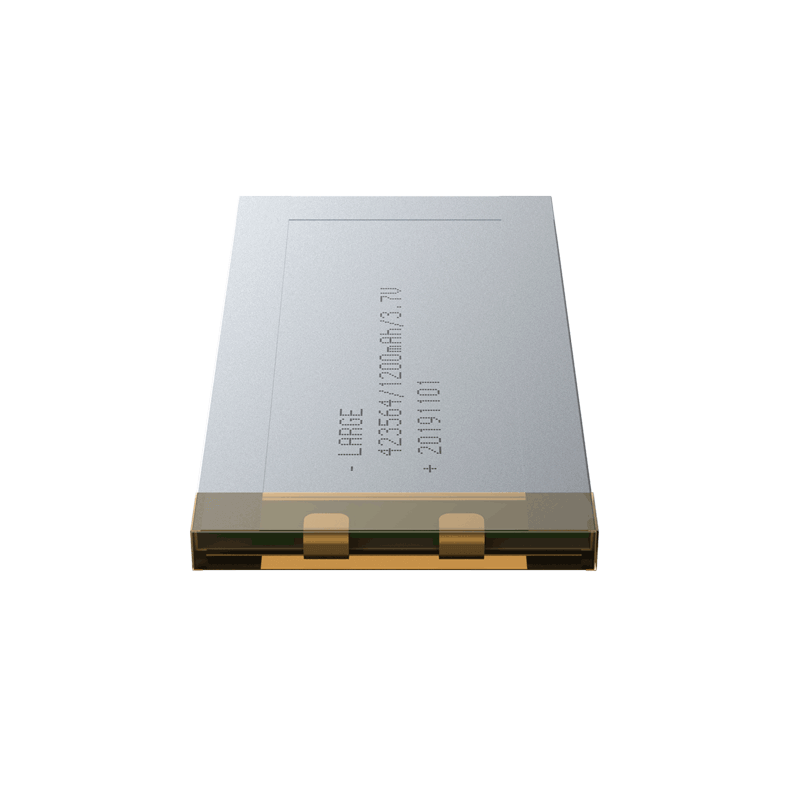

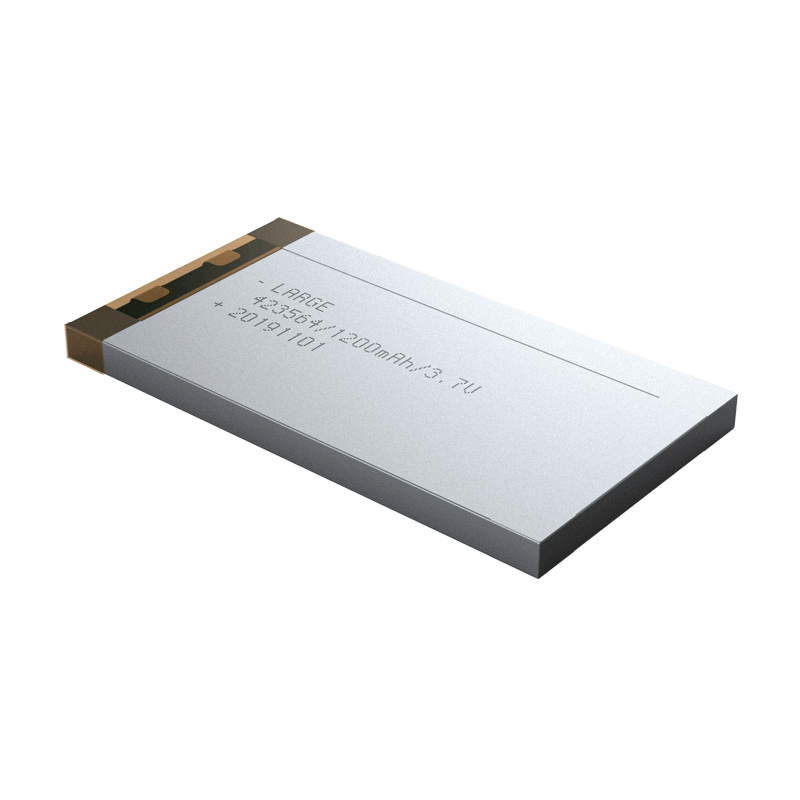

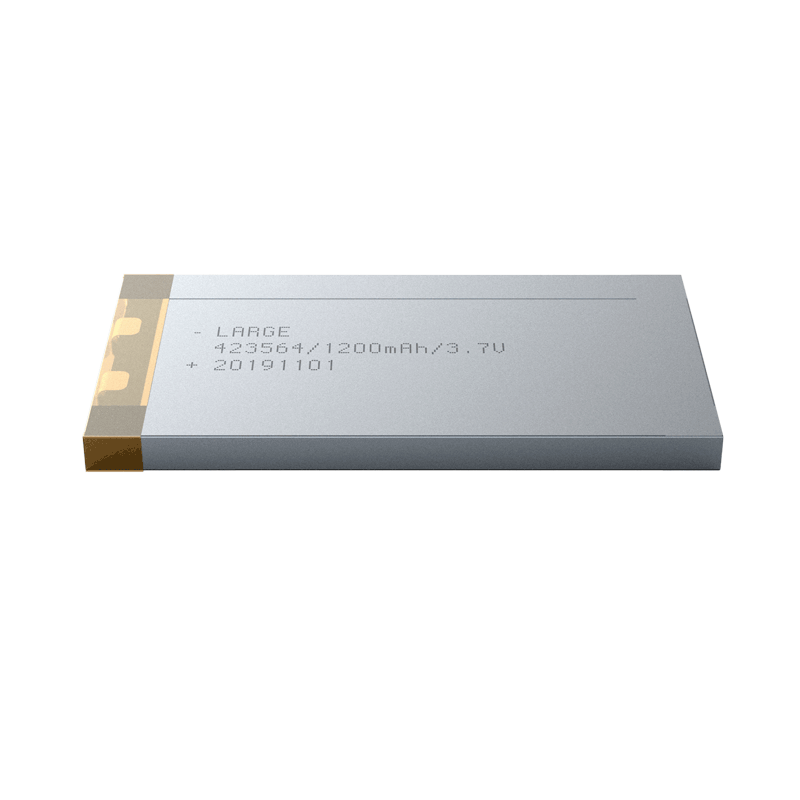

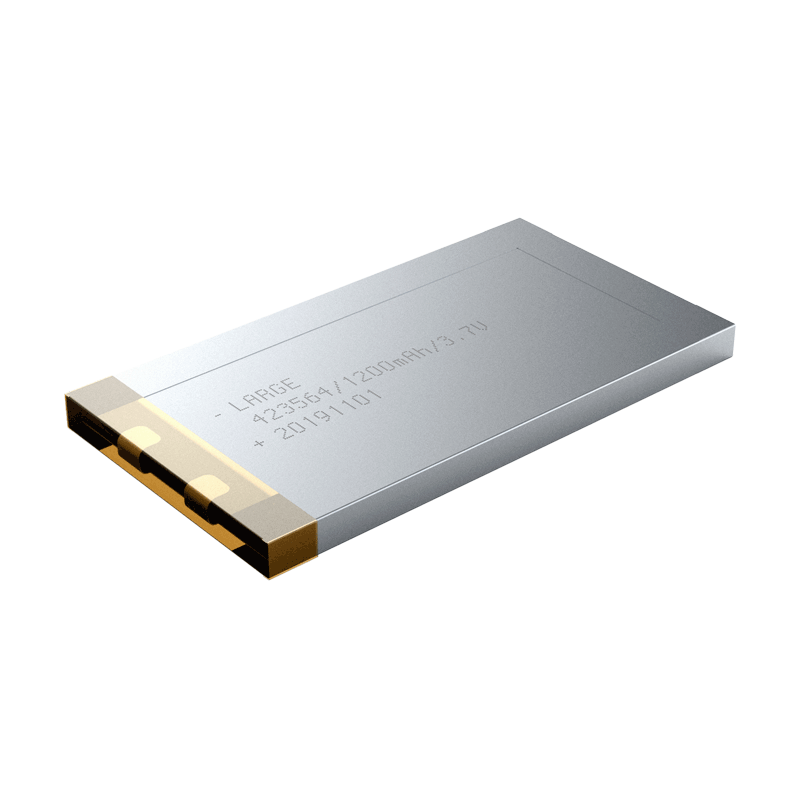

3.7V 1200mAh Lithium Polymer Battery for Blood Glucose Monitor

Product Detail

Product number: 34AQ070-01

Cell model:423564-1200mAh-3.7V

Battery specification: 423564-1S1P-1200mAh-3.7V

Nominal voltage:3.7V

Nominal capacity:1200mAh

Charging voltage: 4.2V

Charging current: ≤10A

Discharging current: 0.24A

Instant discharging current: 1.2A

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 30g

Product dimension: 68*36*4.3mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: no case, easy to pack

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: blood glucose monitor, portable medical equipment

Product features

1. Simple package is easy to install.

2. Connector terminal: adopt MOLEX plug to increase conductive reliability.

3. Battery protection chip: Use Seiko management chip with good stability, high precision, accurate voltage control and precise current monitor to maximize the elimination of safety risks.

4. The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
