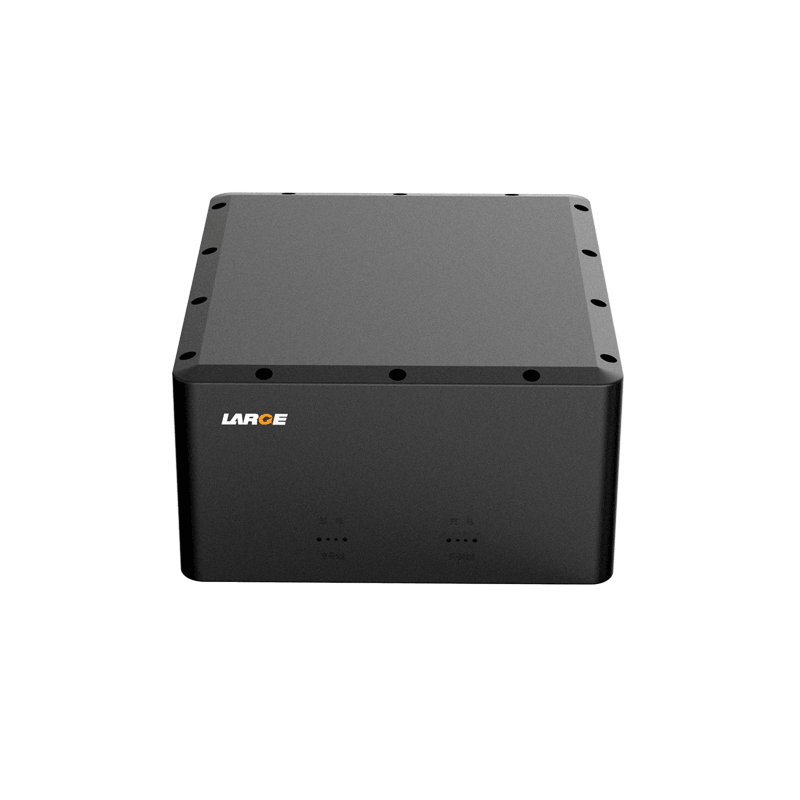

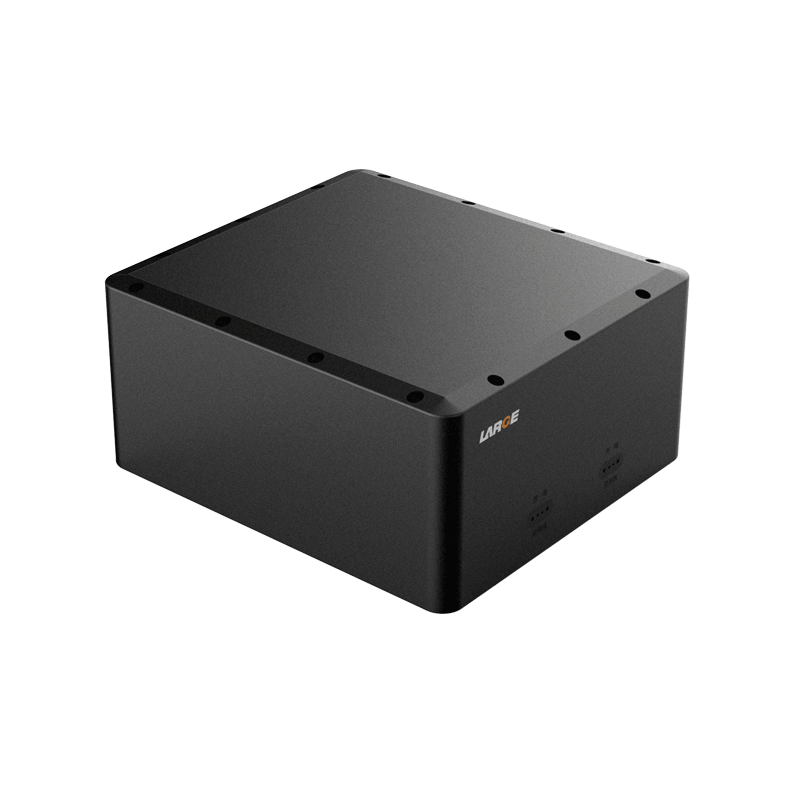

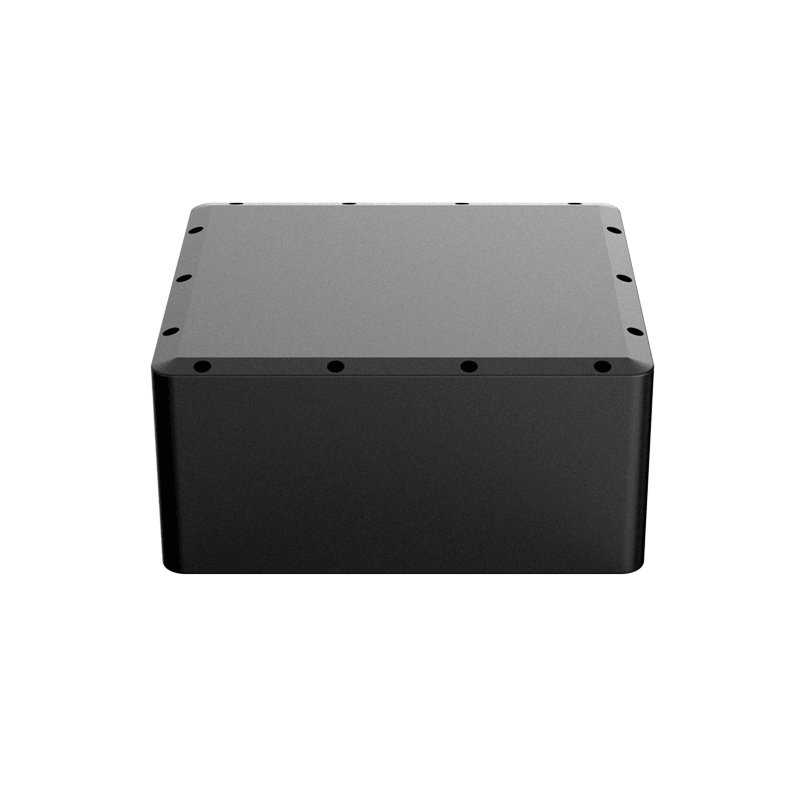

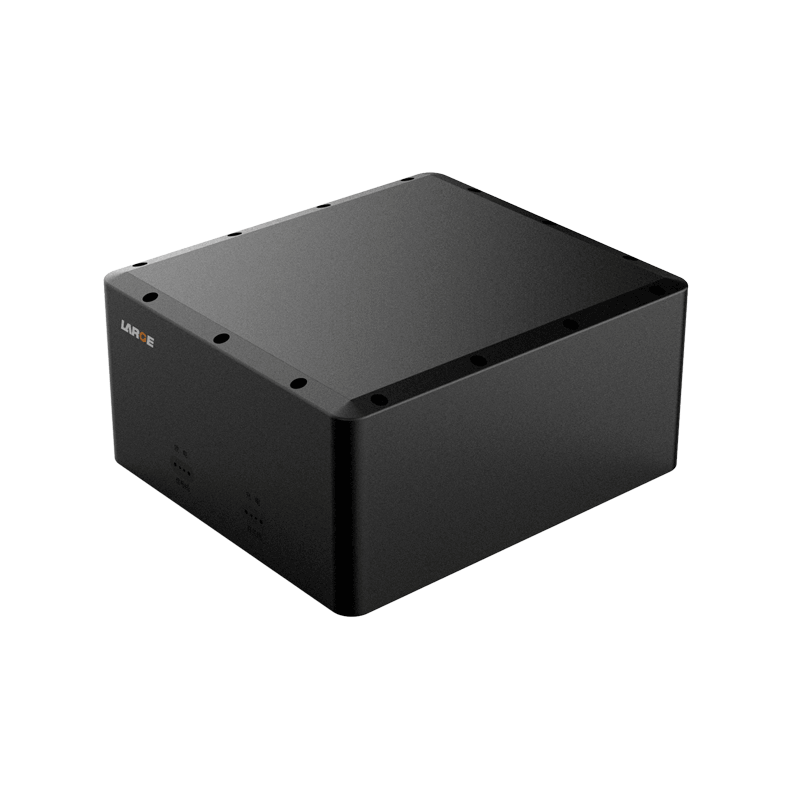

18650 25.2V 20.1Ah Samsung Battery Ternary Battery for Backup Power

Product Detail

Product number: 34AQ068-01

Cell model:18650/3350mAh/3.6V

Battery specification: 18650-7S6P/25.2V 20.1Ah

Nominal voltage:25.2V

Nominal capacity:20.1Ah

Charging voltage: 29.4V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 19.6V

Internal resistance: ≤120mΩ

Battery weight: 4.0Kg

Product dimension: 190*170*90mm(±0.5mm)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: 6061 aluminum alloy, military industry

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: backup power


Product features

1. Aluminum alloy case increases reliability and immobility of battery.

2. Shockproof and waterproof: shockproof structure is designed by the inner aluminum alloy case to meet the requirements of high safety and reliability.

3. Data communication management: use imported software management chip, 485 communication function, accurate data transmission and precise temperature control, so as to eliminate security risks.

4. Battery characteristics: Use an imported single cell with 3350mAh capacity, which is safe and reliable.

5. The battery pack has good safety, nice low-temperature performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
