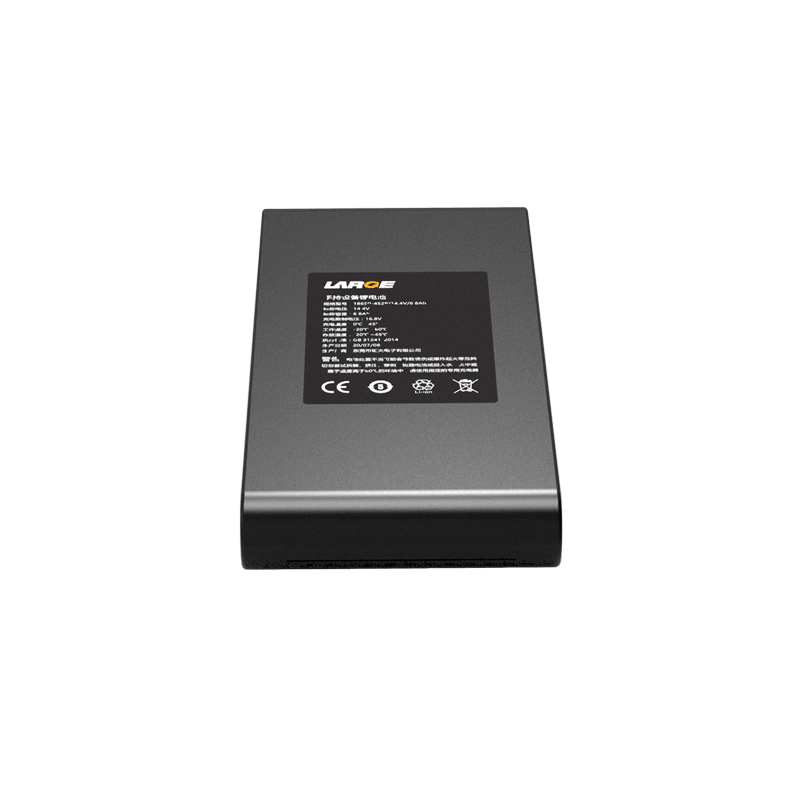

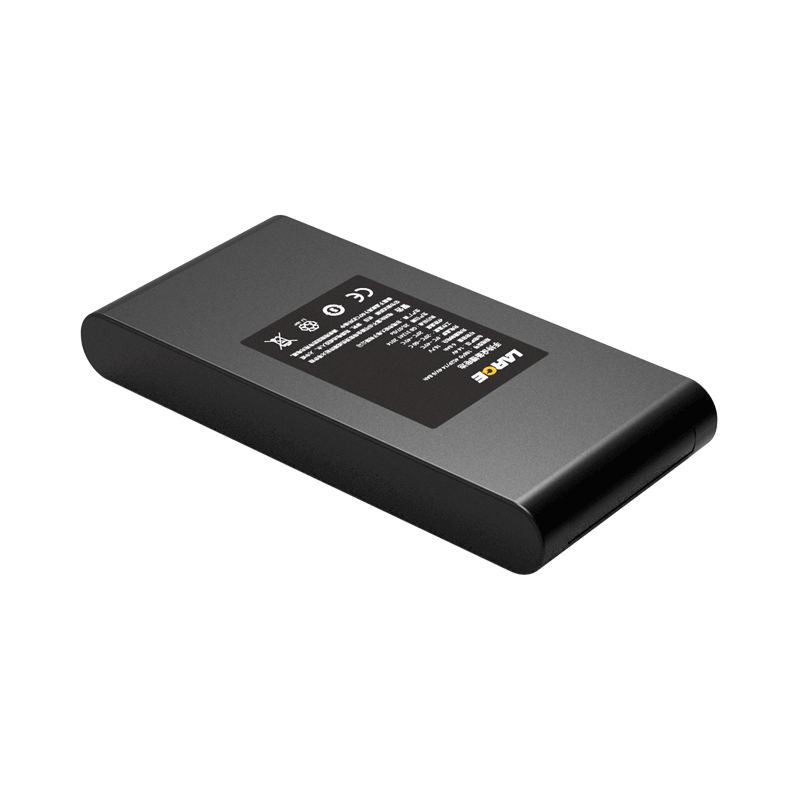

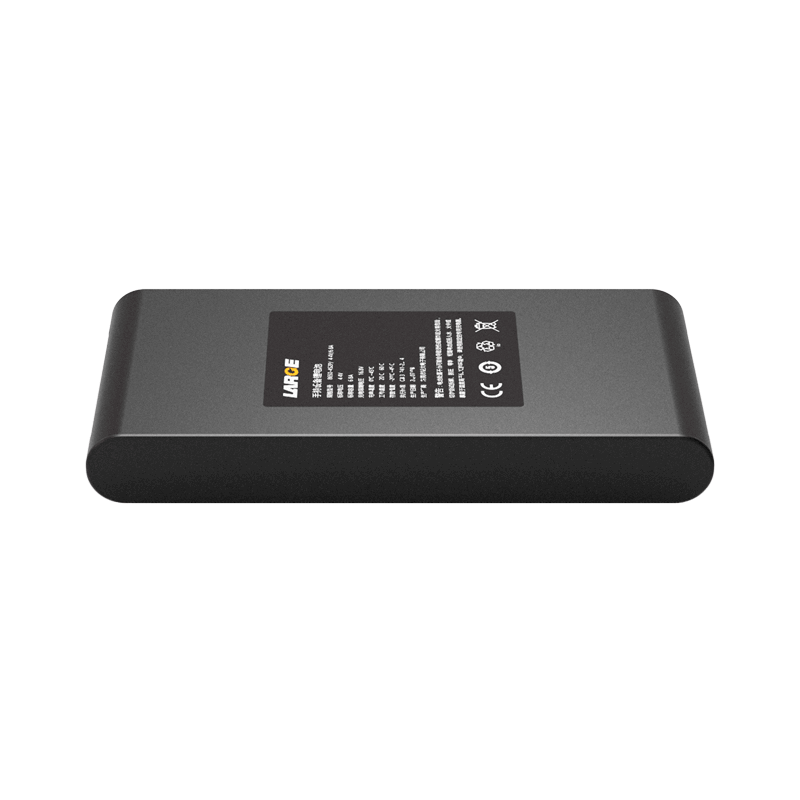

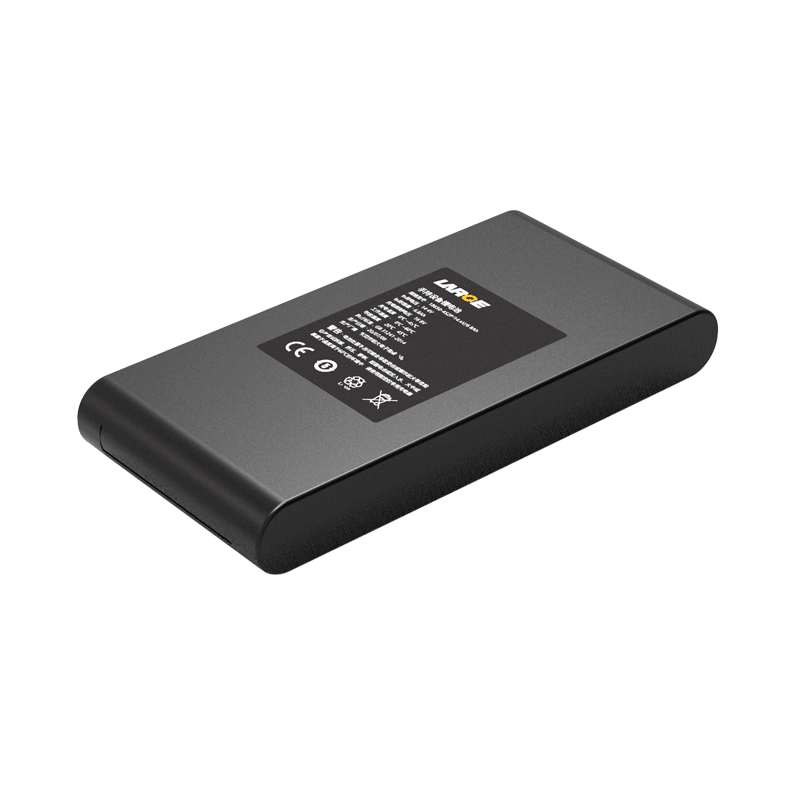

18650 14.4V 6.8Ah Samsung Lithium Battery For Hand-held Devices

Project number: 37DZ079-02

Cell model：18650/3.6V/3.4Ah

Battery specification: 18650-4S2P/14.4V/6.8Ah

Nominal voltage：14.4V

Nominal capacity：6.8Ah

Charging voltage: 16.8V

Charging current: ≤3.4A

Discharging current: 3A

Instant discharging current: 8.25A

End-off voltage: 8.1V

Internal resistance: ≤200mΩ

Battery weight: 478g

Product dimension: 20*72*149mm

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～45℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application field: hand-held devices

Product features

1.Data communication management: It adopts Seiko IC + TI software management chip, precise data transmission and accurate temperature control to eliminate potential safety hazards to the maximum extent.

2.The battery pack has good security, nice discharge performance and long cycle life.

3.The self consumption of battery is small.

4.It has LED battery power display.
