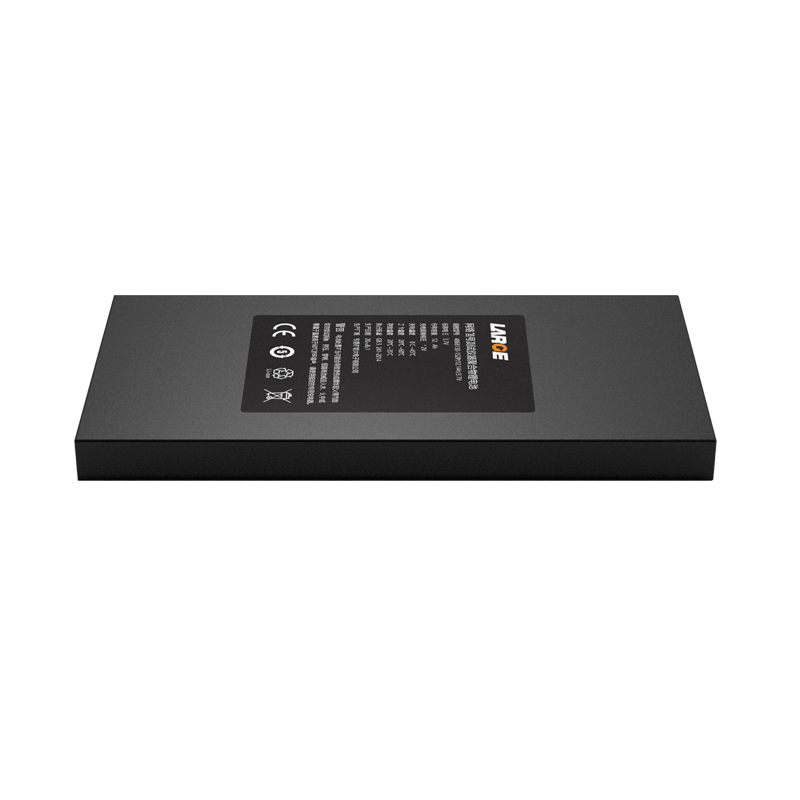

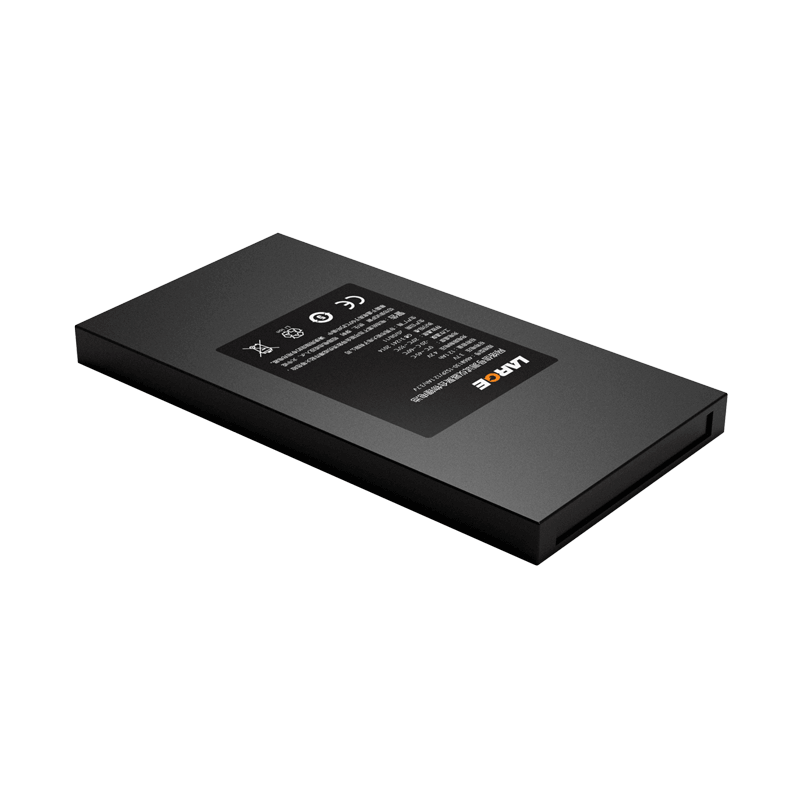

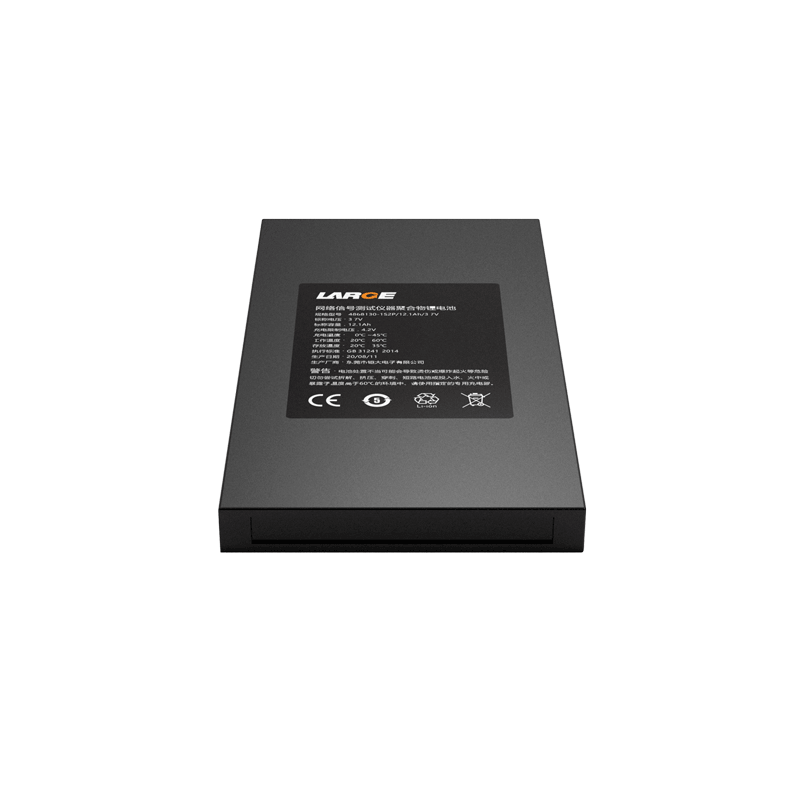

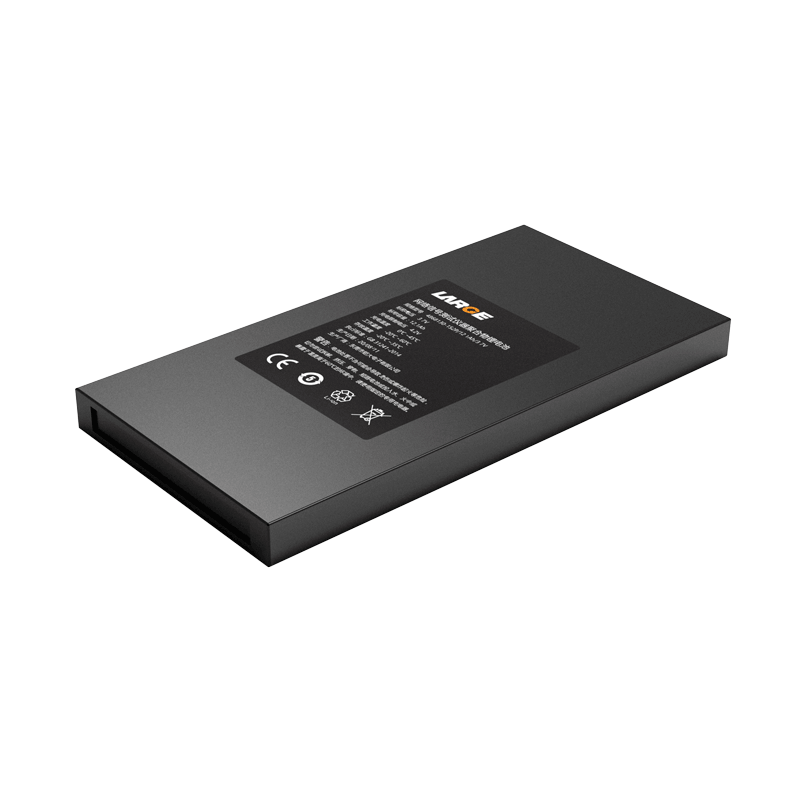

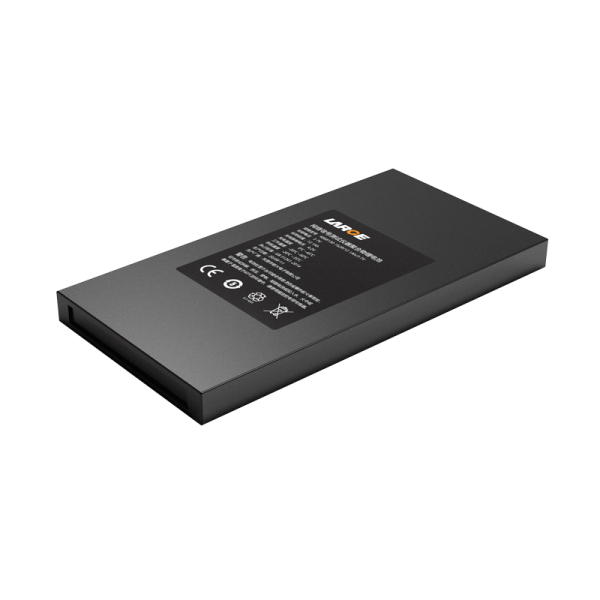

3.7V 12.1Ah Lithium Polymer Battery Pack For Network Signal Testing Instrument With I2C Communication Protocol

Product Detail

Product number: 01WQ0037-19
Cell model:4868130-6.05Ah-3.7V
Battery specification: 4868130-1S2P-12.1Ah-3.7V
Product dimension: 136*69*10mm(Max)
Nominal voltage:3.7V
Nominal capacity:12.1Ah
Charging voltage: 4.2V
Charging current: ≤6A
Discharging current: 2A
Continuous discharge current: 7A
End-off voltage: 3.0V
Internal resistance: ≤180mΩ
Battery weight: 190g
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~35℃
Battery case: PVC heat shrinkable film
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.
Application field: portable test equipment, signal testing apparatus

Product features
1.PVC heat shrinkable film package is simple and reliable, and is easy to install.
2.Outlet of connector plug: JST plug output mode is adopted to increase the conductive reliability of plug. Gold plated hardware terminal output mode is adopted to increase the conductive reliability.
3.Battery protection management: the battery adopts special lithium battery protection chip with high stability, high precision monitoring and precise controlling, which can eliminate the potential safety hazard to the maximum extent.
4.The battery pack has good security, nice discharge performance and long cycle life.
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection

*
*
*
