Custom Lithium ion Battery Pack

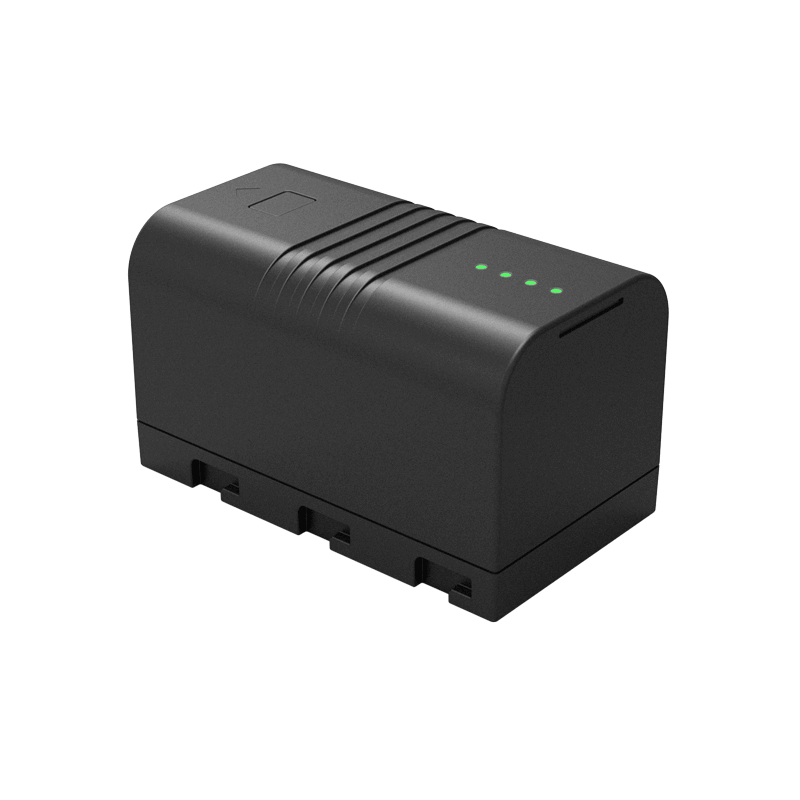

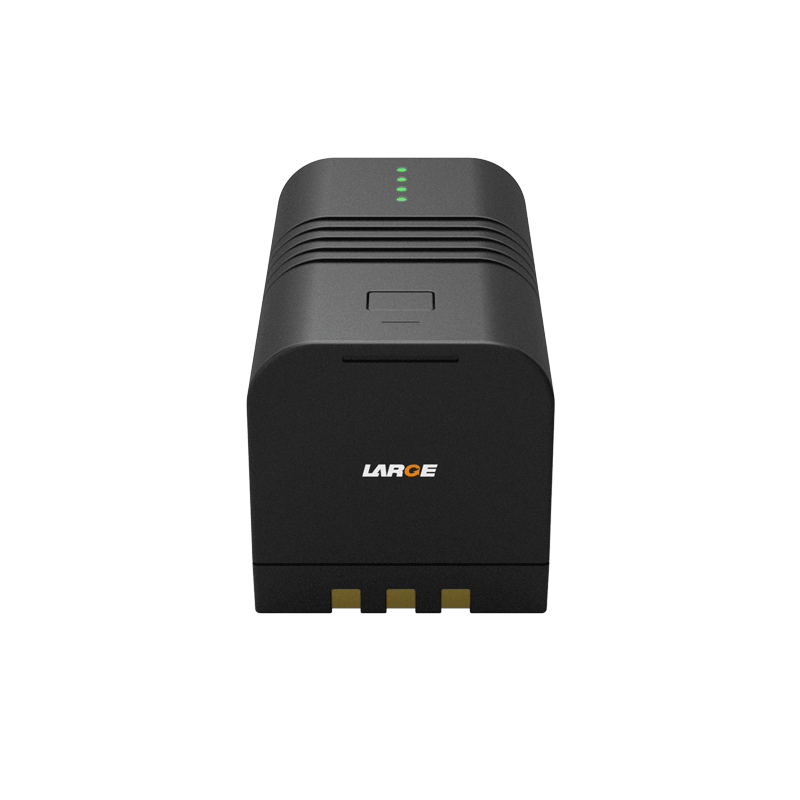

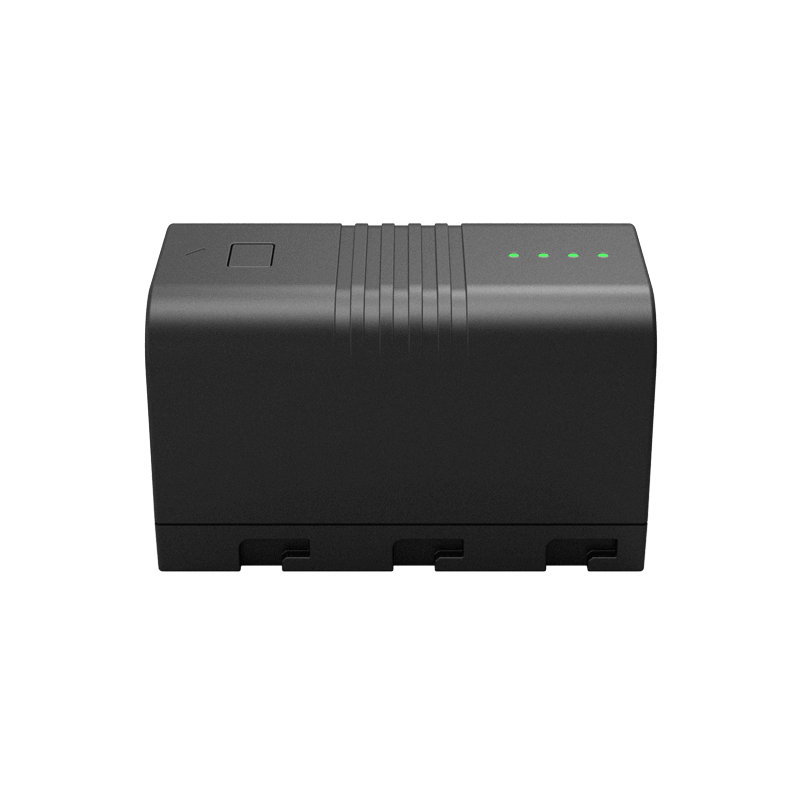

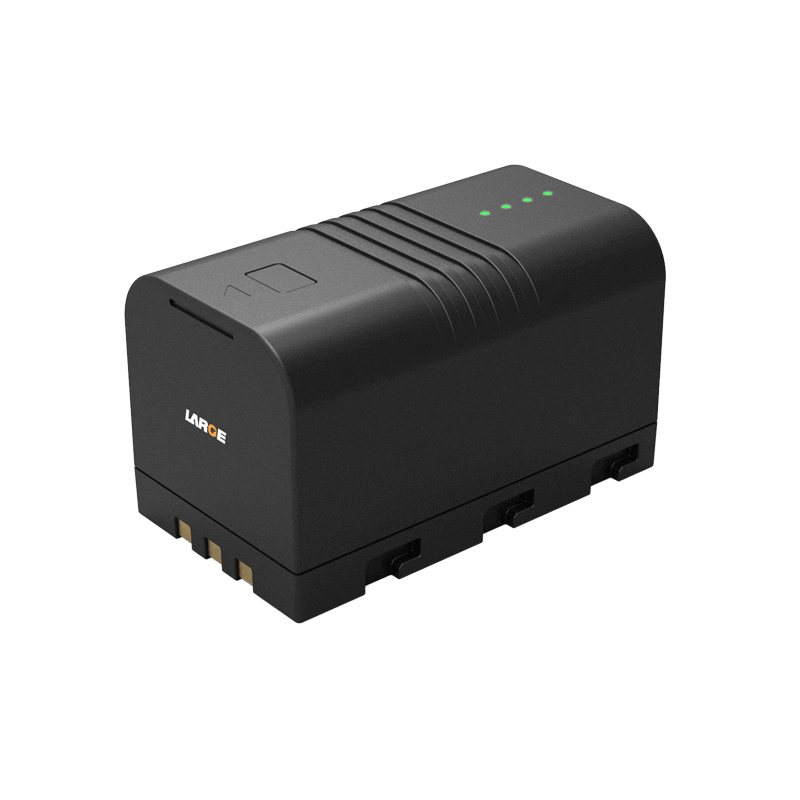

18650 7.2V 6700mAh Samsung Battery Ternary Battery for Test Instrument

Product Detail

Product number : 05BQ673-39

Cell model: 18650/3350mah /3.6V

Battery specification: 18650-2S2P/6700mAh/7.2V

Nominal voltage: 7.2V

Nominal capacity: 6700mAh

Charging current: ≤2.0A

Discharge current: 4.0A

Instantaneous discharge current: 6A

Discharge cut-off voltage: 5.5V

Finished product internal resistance: 100 mΩ or less

Battery weight: 230g

Product dimension: 40.35*41.45*70.3mm

Charging temperature: 0 ~ 45℃

Discharging temperature: -20 ~ 60℃

Storage temperature: -20 ~ 20℃

Battery case: ABS+PC

Intelligent lithium battery protection: power calculation, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, USB charging, etc

Application: Surveying and mapping industry

*
*
*
