Custom Lithium Ion Battery Pack

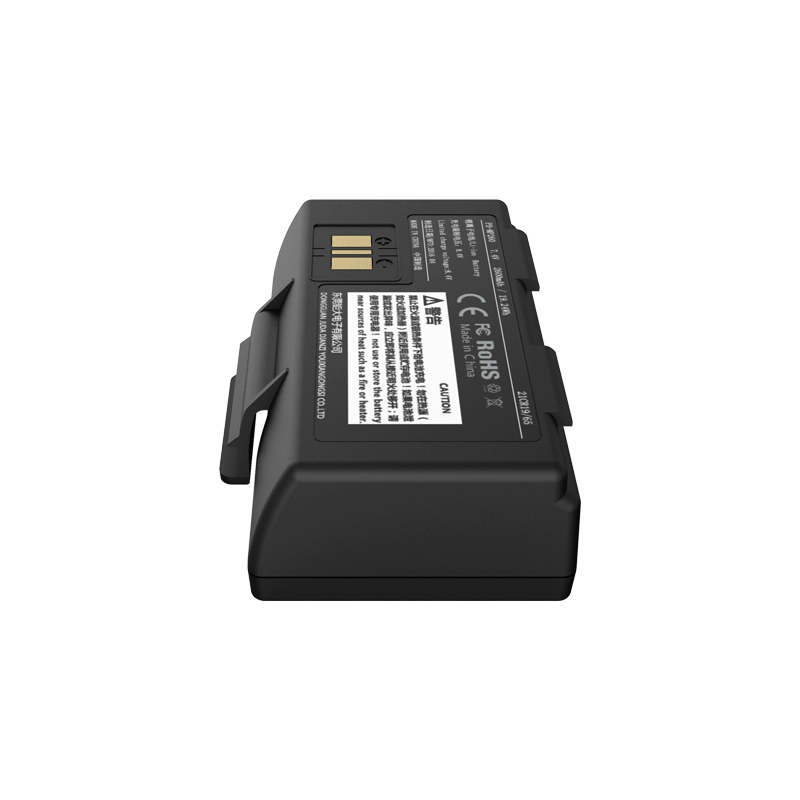

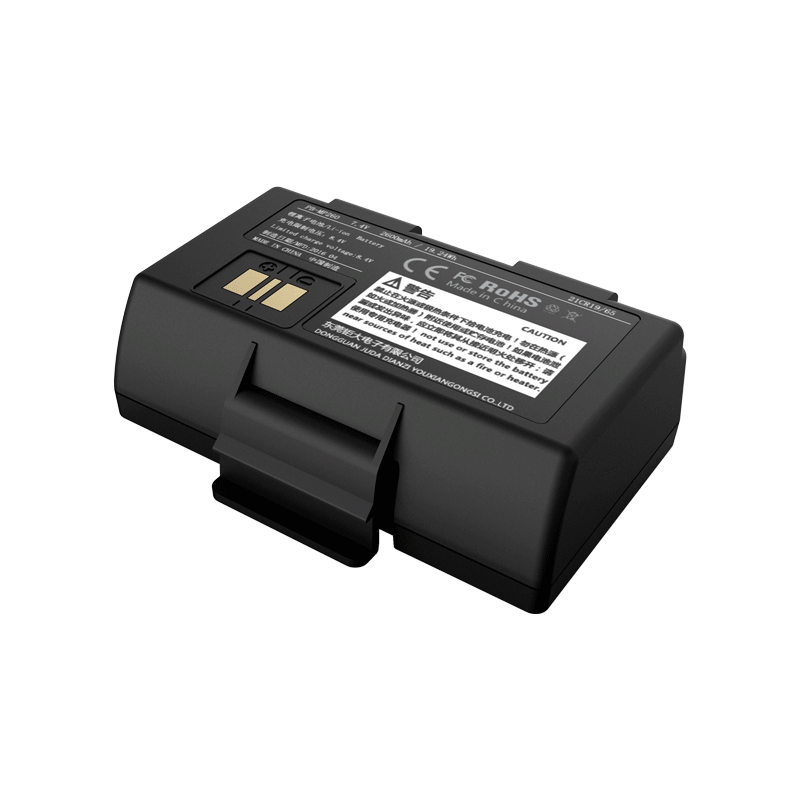

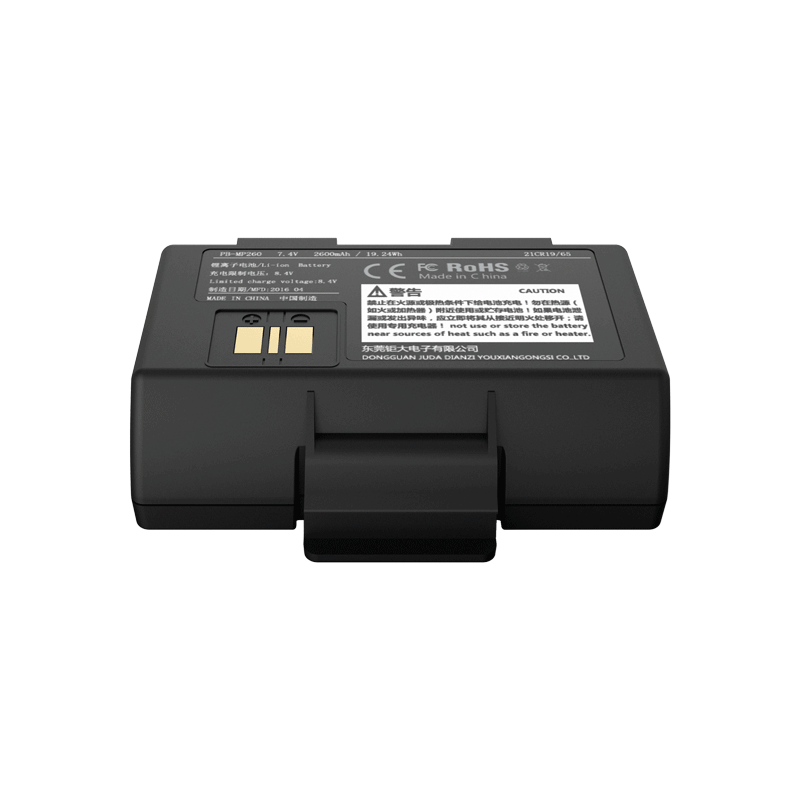

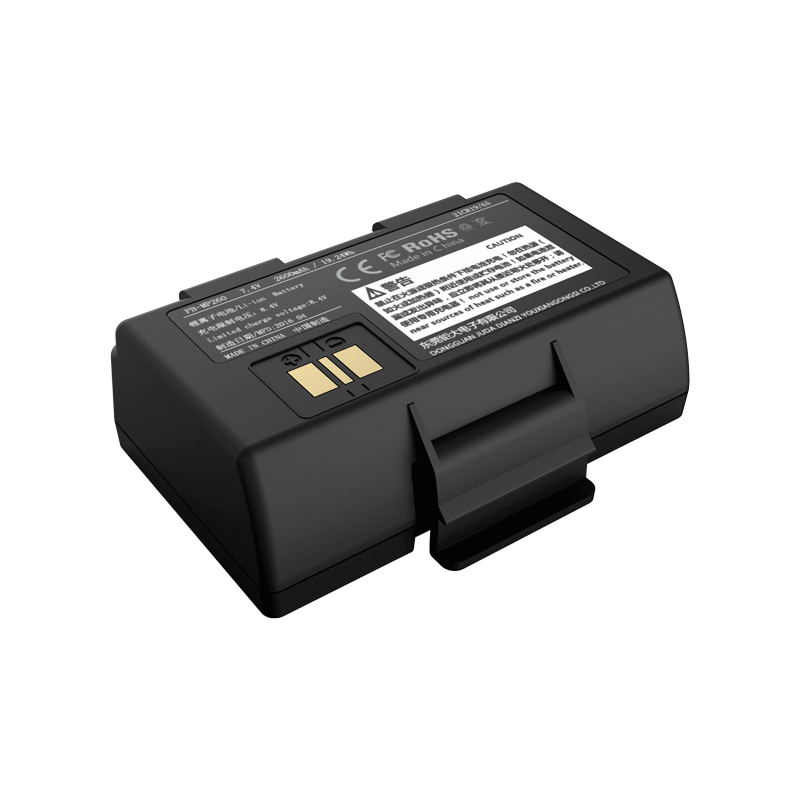

18650 7.4V 2600mAh Lithium Ion Battery Samsung Battery for Miniprinter

  • Model number:02DQ0082-02

  • Nominal voltage:7.4V

  • Nominal capacity:2600mAh

  • Battery cell:18650/2600mAh/3.7V

  • Dimension:(71*46.4*22.1)±0.25mm

  • Application:battery of miniprinter

Product Detail

Product number: 02DQ0082-02

Cell model:18650/2600mAh/3.7V

Battery specification: 18650/2S1P/2600mAh/7.4V (plastic housing)

Nominal voltage:7.4V

Nominal capacity:2600mAh

Charging voltage: 8.4V

Charging current: ≤2600mA

Discharging current: ≤5200mA

End-off voltage: 6.0V

Internal resistance: ≤200mΩ

Battery weight: about 119g

Product dimension: (71*46.4*22.1)±0.25mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, etc.

Application field: battery of miniprinter
