Custom Lithium ion Battery Pack

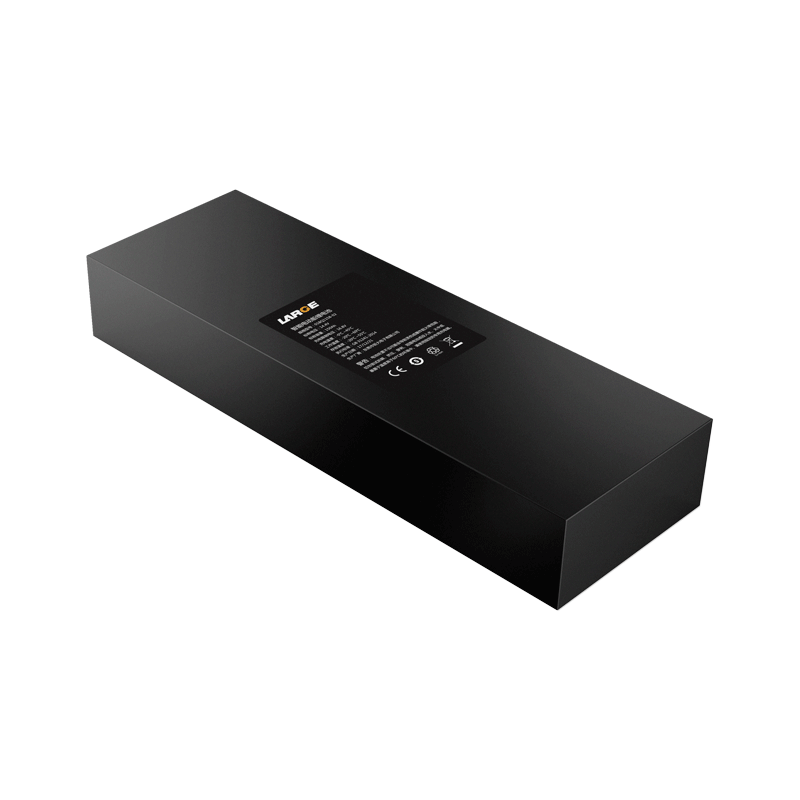

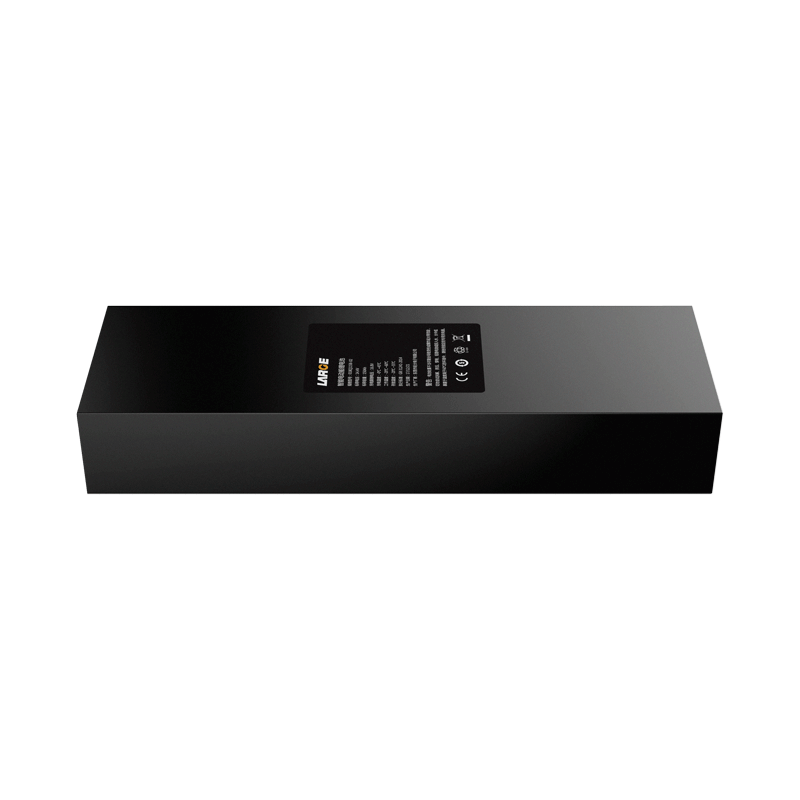

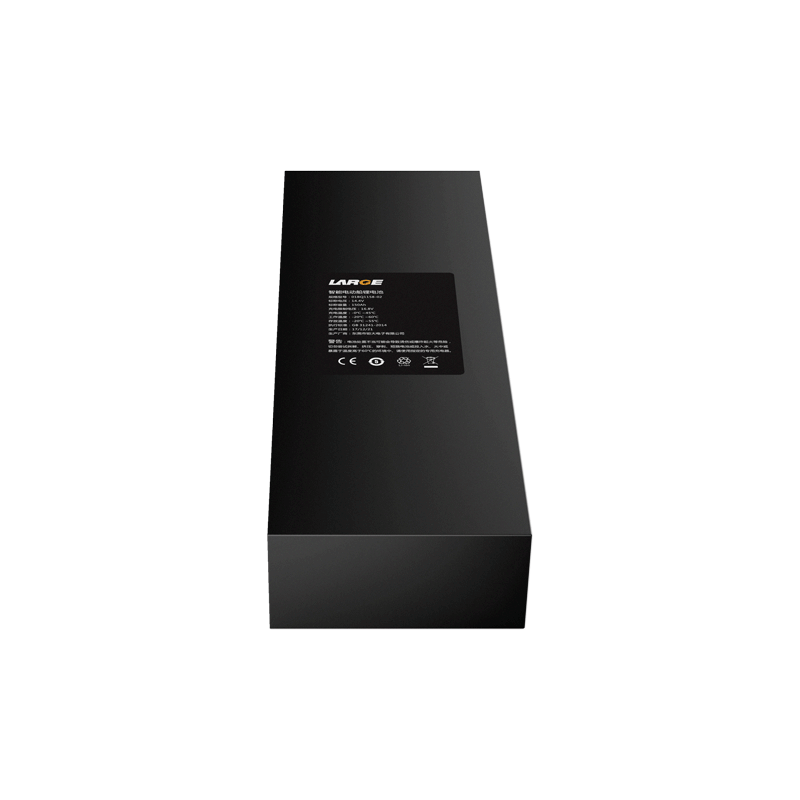

14.4V 150Ah 18650 Lithium Ion Battery Sanyo Battery for Intelligent Ship

  • Model number:01BQ1158-02

  • Nominal voltage:14.4V

  • Nominal capacity:150000mAh

  • Battery cell:18650/3.6V/2.5Ah

  • Dimension:565*188*88mm(Max)

  • Application: intelligent electric ship, AGV

Product Detail

Product number: 01BQ1158-02

Cell model:18650/3.6V/2.5Ah

Battery specification: 18650-4S60P/14.4V/150Ah

Nominal voltage:14.4V

Nominal capacity:150Ah

Charging voltage: 16.8V

Charging current: ≤20A

Discharging current: 50A

Instant discharging current: 100A

End-off voltage: 12.0V

Internal resistance: ≤200mΩ

Battery weight: 12.5Kg

Product dimension: 565*188*88mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: intelligent electric ship, AGV

*
*
*
