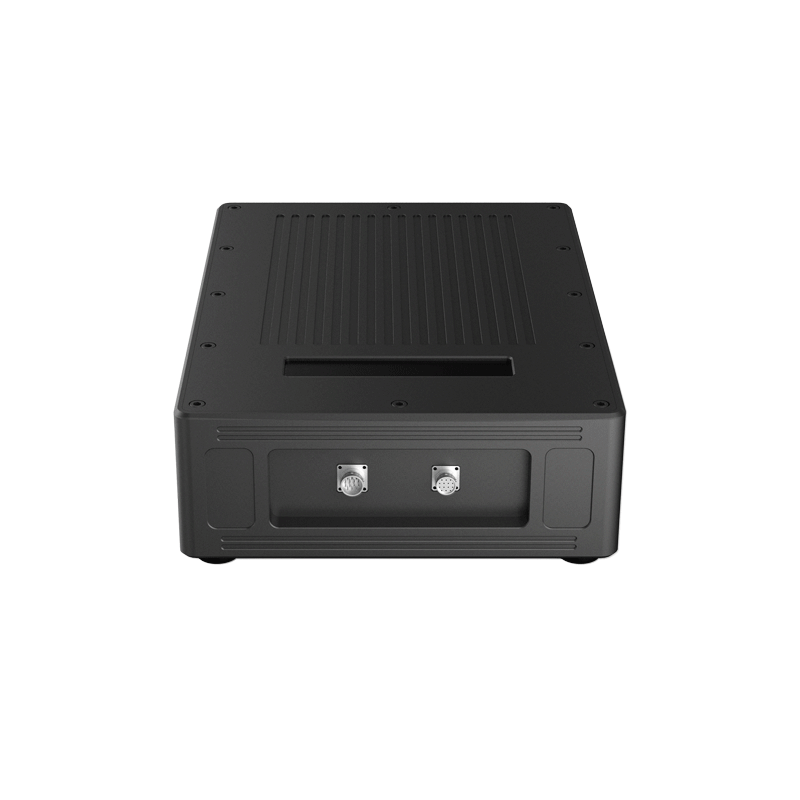

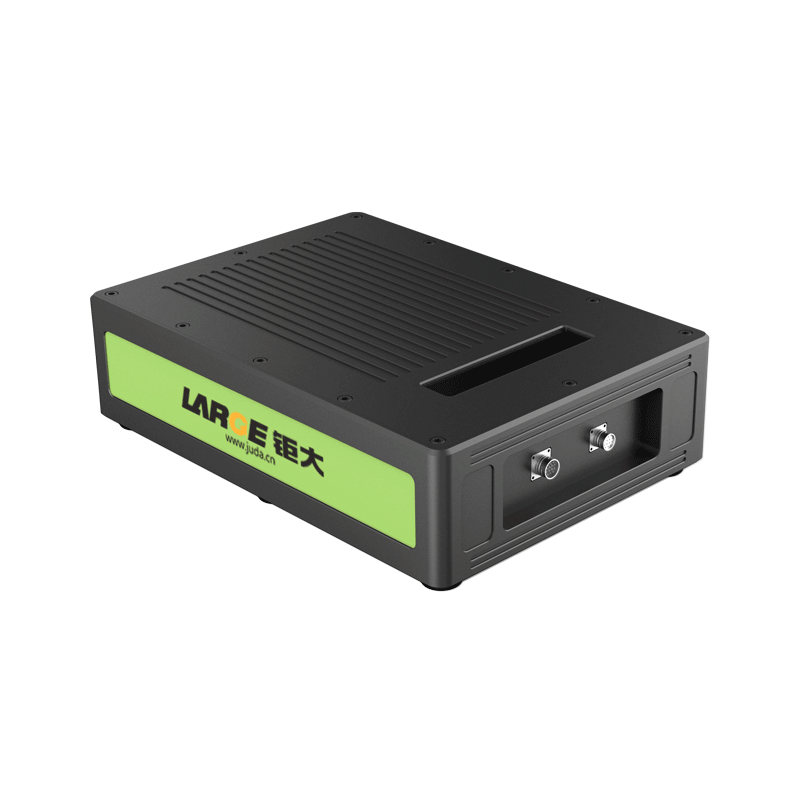

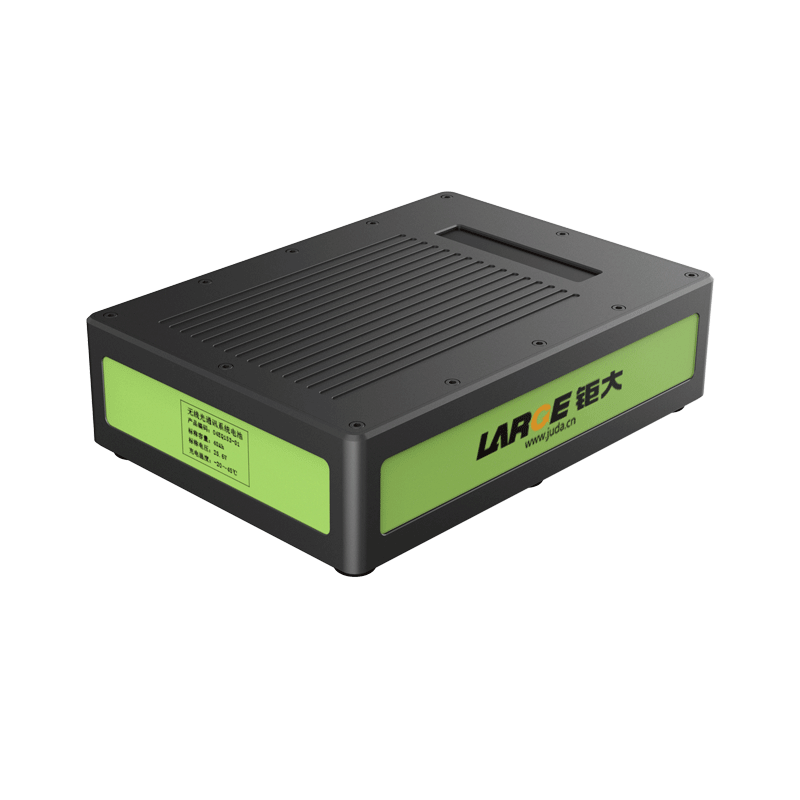

Custom Lithium Ion Battery Pack

Low Temperature Charge/Discharge LiFePO4 Battery 25.6V 40Ah for Wireless Communication System with RS485 Communication

  • Model number:04EQ153-01

  • Nominal voltage:25.6V

  • Nominal capacity:40000mAh

  • Battery cell:148F20C/3.2V/20Ah

  • Dimension:350×270×120(Max)

  • Application:wireless optical communication, military communication

Product Detail

Product number: 04EQ153-01

Cell model:148F20C/3.2V/20Ah

Battery specification: 148F20C/8S2P/25.6V/40Ah

Nominal voltage:25.6V

Nominal capacity:40Ah

Charging voltage: 29.2V

Charging current: ≤20A

Discharging current: 8A

Instant discharging current: 40A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 12Kg

Product dimension: 350×270×120(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~40 ℃

Temperature protection: /

Battery case: aviation aluminum alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and equilibrium.

Application field: wireless optical communication, military communication


Product features

1. Dustproof and shock-resistant: fill in the shock-resistant structure inside the aviation aluminum alloy housing to satisfy the requirements of dustproof and shock-resistant.

2. Waterproof aviation connector: adopt waterproof aviation connector, which is safe and reliable.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

4. Operate at very low temperature: can discharge at -40℃.

5. The battery pack has display screen that can show the information of current, voltage, capacity, etc.

*
*
*
