Custom Lithium Ion Battery Pack

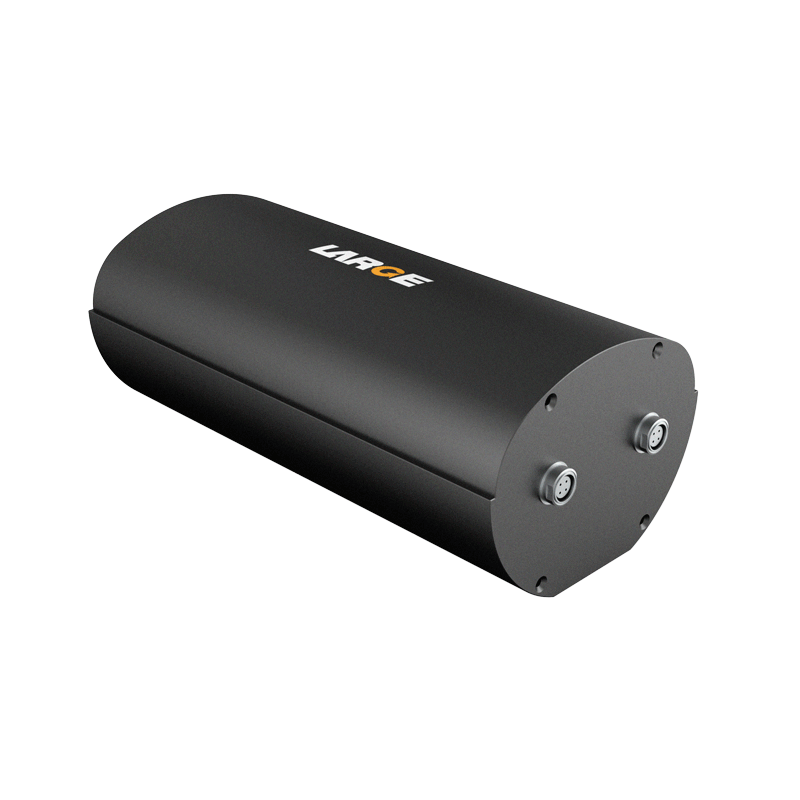

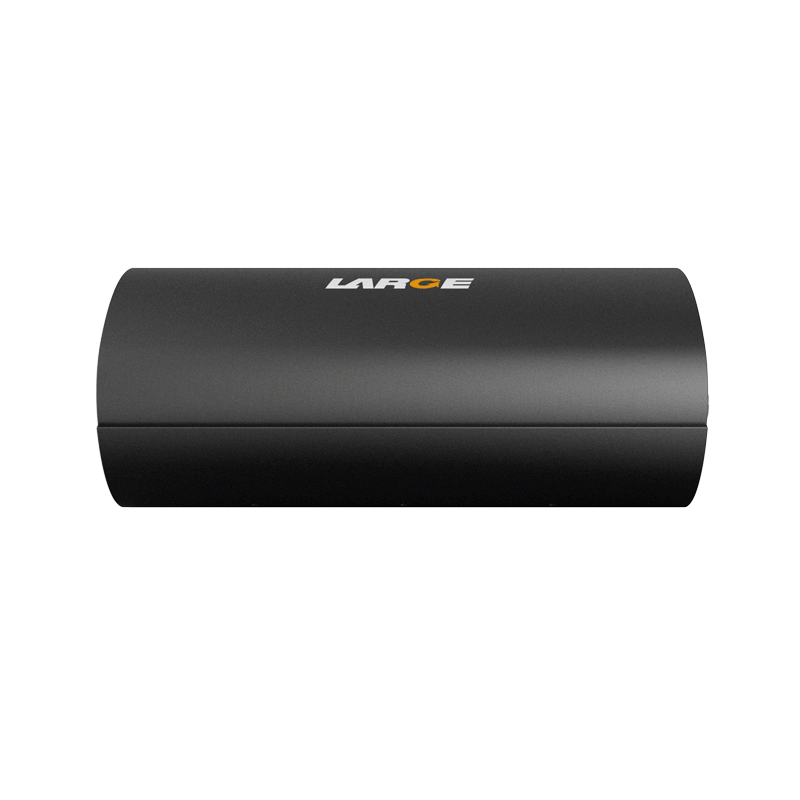

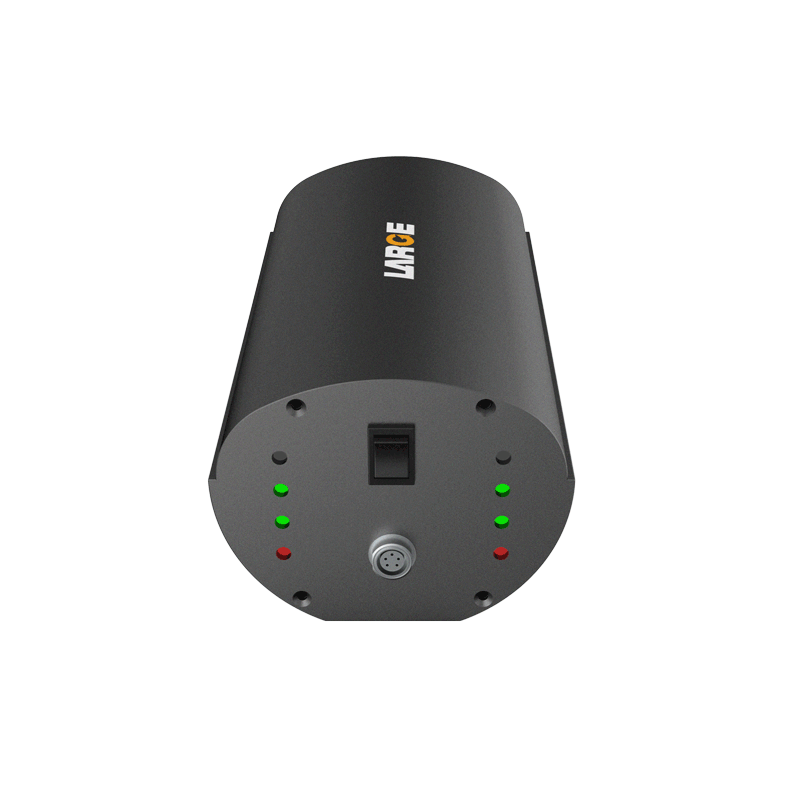

26650 28.8V 3.5Ah LiFePO4 Battery for Military Shore-based Equipment

  • Model number:30AQ136-01

  • Nominal voltage:28.8V

  • Nominal capacity:7000mAh

  • Battery cell:26650/3.2V/3.5Ah

  • Dimension:230.9*119*91mm(Max)

  • Application:military shore-based device

Product Detail

Product number: 30AQ136-01

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650-9S1P/28.8V/3.5Ah

Nominal voltage:28.8V

Nominal capacity:3.5Ah*2

Charging voltage: 32.85V

Charging current: 2A

Discharging current: 3A

Instant discharging current: 10A 5s

End-off voltage: 22.5V

Internal resistance: ≤300mΩ

Battery weight: 3.0kg

Product dimension: 230.9*119*91mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~40℃

Temperature protection: 60℃±5℃

Battery case: lithium alloy housing, black oxidation

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.

Application field: military shore-based device

Product features

1. Parameter function: short circuit protection, overcharge protection, over discharge protection, temperature protection, power display, low power alarm.

2. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. The battery pack has good security, national military standard, stable performance and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
