Custom Lithium Ion Battery Pack

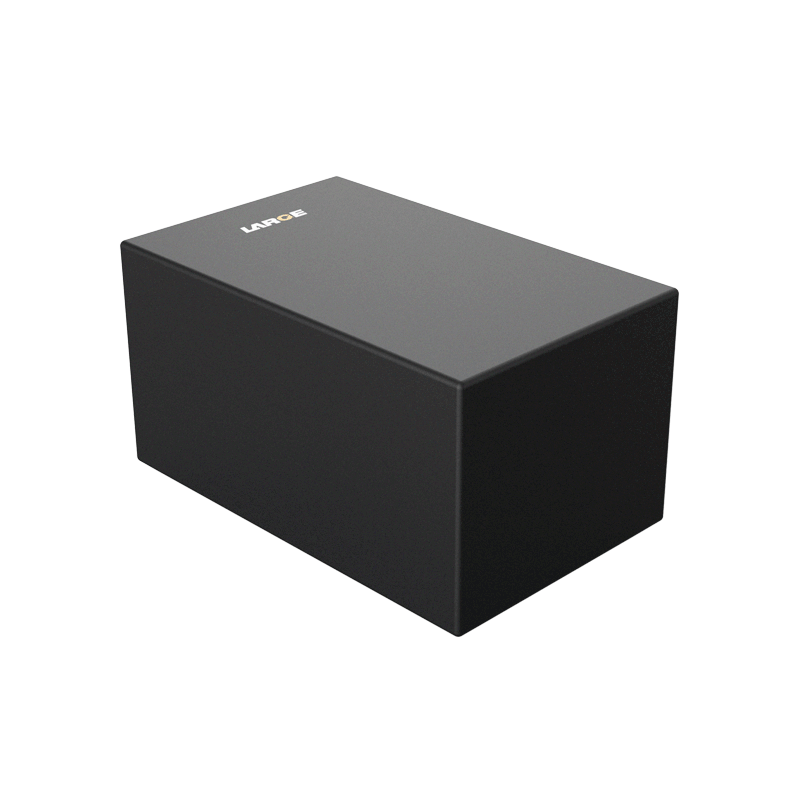

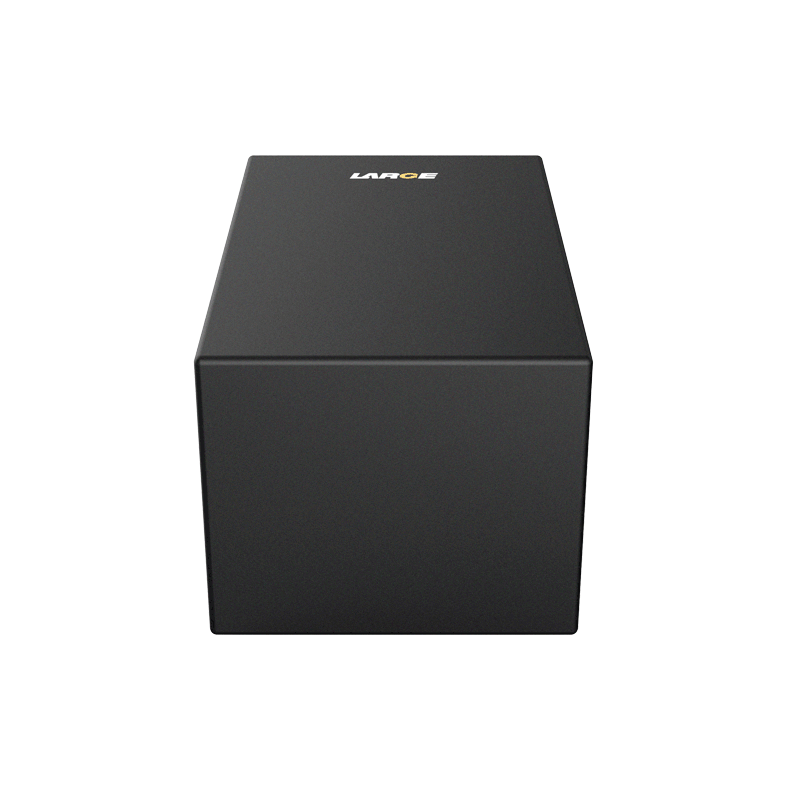

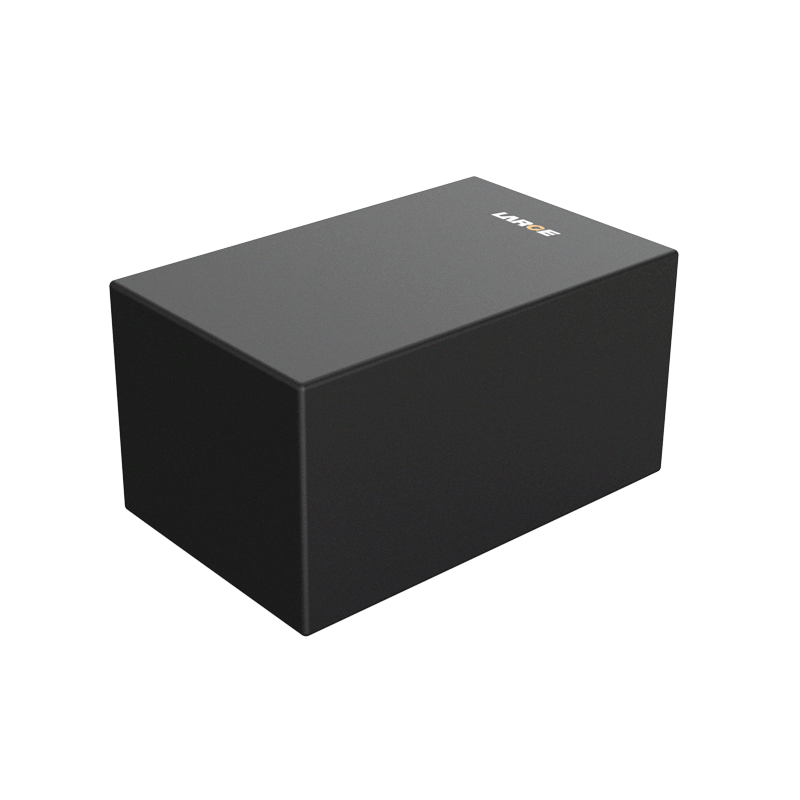

7.2V 6.7Ah 18650 Lithium Ion Battery for Educational Robotics

  • Model number:04EQ210-02

  • Nominal voltage:7.2V

  • Nominal capacity:6700mAh

  • Battery cell:18650/7.2V/6.7Ah

  • Dimension:80×50×42(Max)

  • Application:micro-robot

Product Detail

Product number: 04EQ210-02

Cell model:18650/7.2V/6.7Ah

Battery specification: 18650/2S2P/7.2V/6.7Ah

Nominal voltage:7.2V

Nominal capacity:6.7Ah

Charging voltage: 8.4V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 6A

End-off voltage: 6.0V

Internal resistance: ≤220mΩ

Battery weight: 96g

Product dimension: 80×50×42(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~20℃

Battery case: PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: micro-robot


Product features

1. Communication interface: adopt I2C communication protocol, which can read battery voltage, current, temperature, capacity, etc.

2. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
