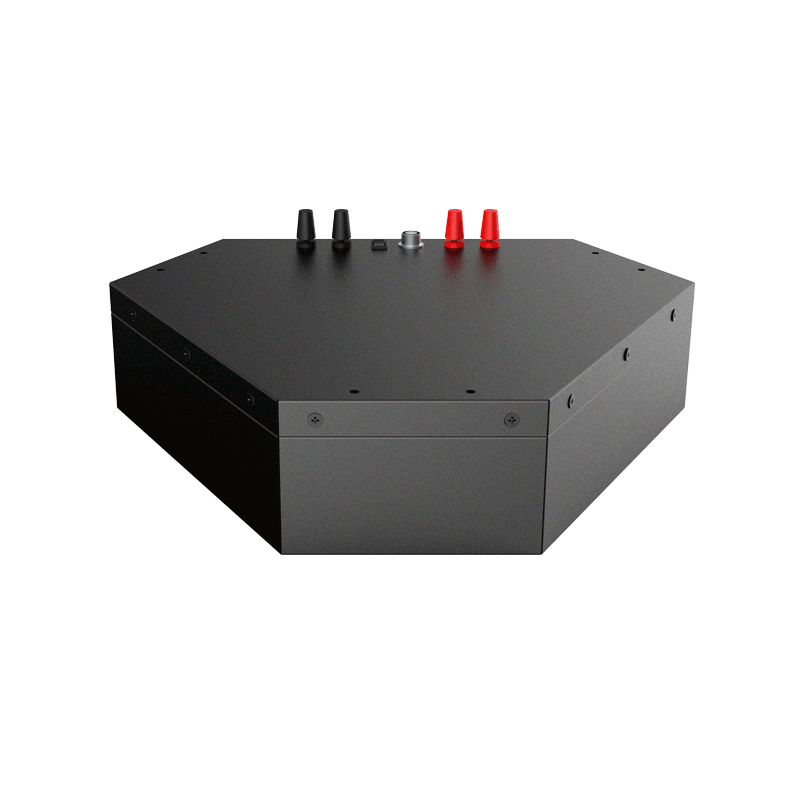

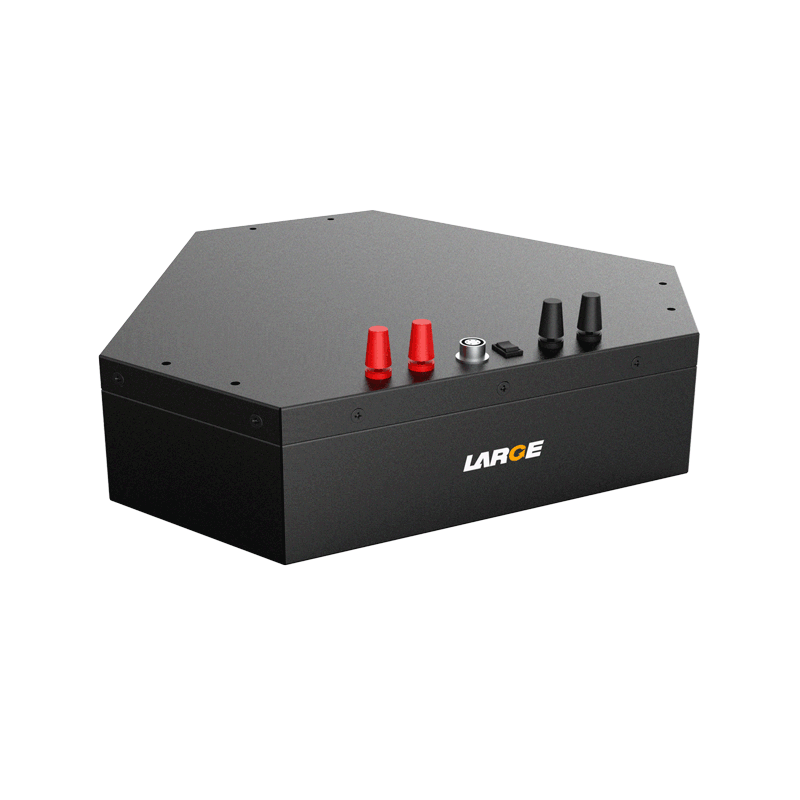

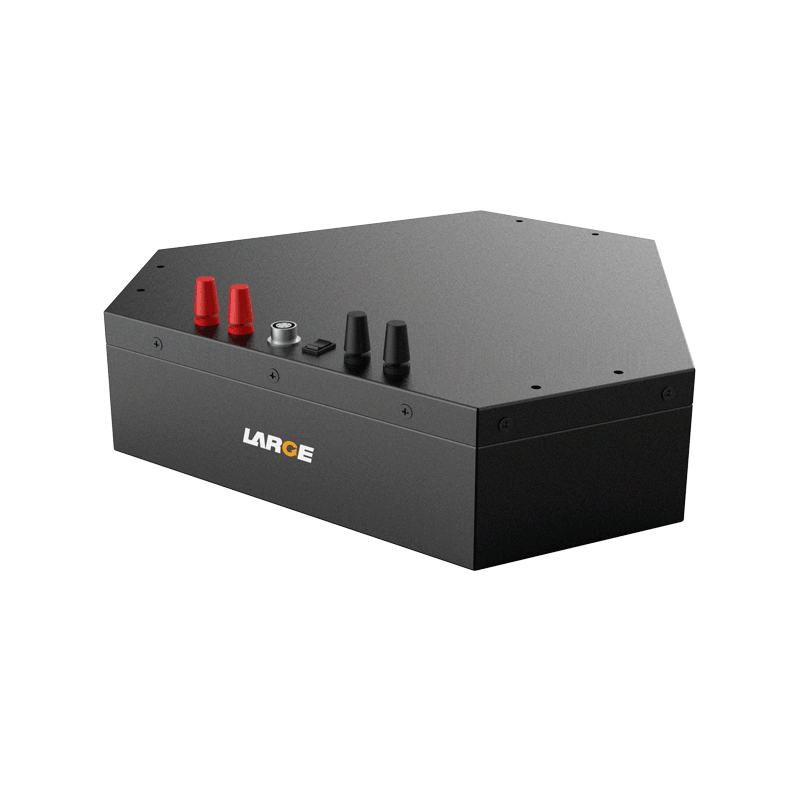

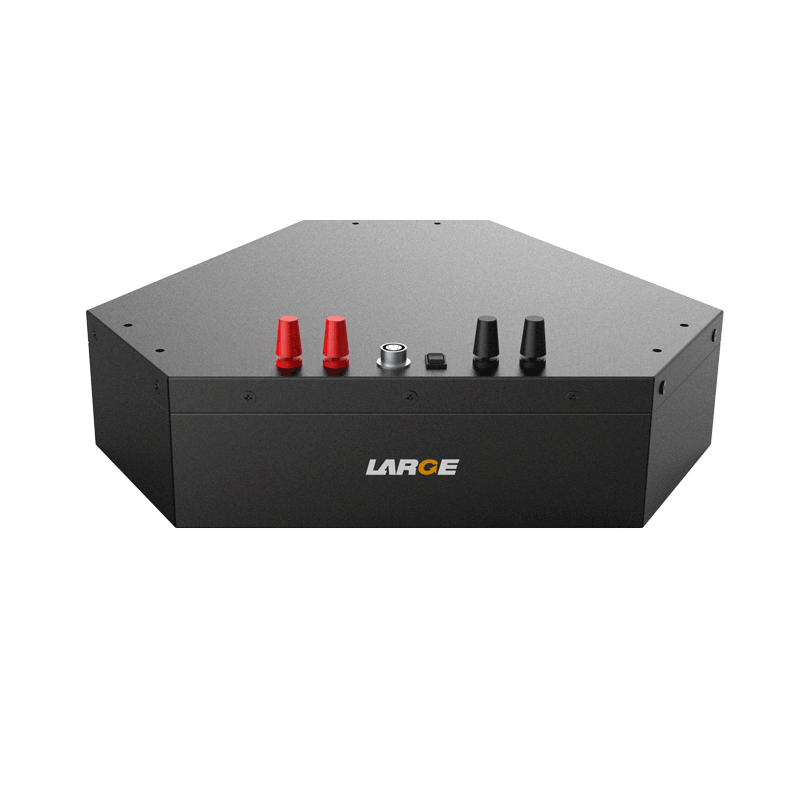

26650 38.4V 21Ah LiFePO4 Battery PLB Battery for Service Robot

Product Detail

Product number: 36AQ188-01

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650-12S6P/38.4V/21Ah

Nominal voltage:38.4V

Nominal capacity:21Ah

Charging voltage: 43.8V

Charging current: 10A

Discharging current: 20A

Instant discharging current: 60A 1s

End-off voltage: 30V

Internal resistance: ≤150mΩ

Battery weight: 12kg

Product dimension: 328*317.6*88.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~40℃

Temperature protection: 60℃±5℃

Battery case: metal plate housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.

Application field: robot, AGV, etc.


Product features

Parameter function: short circuit protection, overcharge protection, over discharge protection, temperature protection, power display, low power alarm, etc.

Data communication management: RS485, adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
