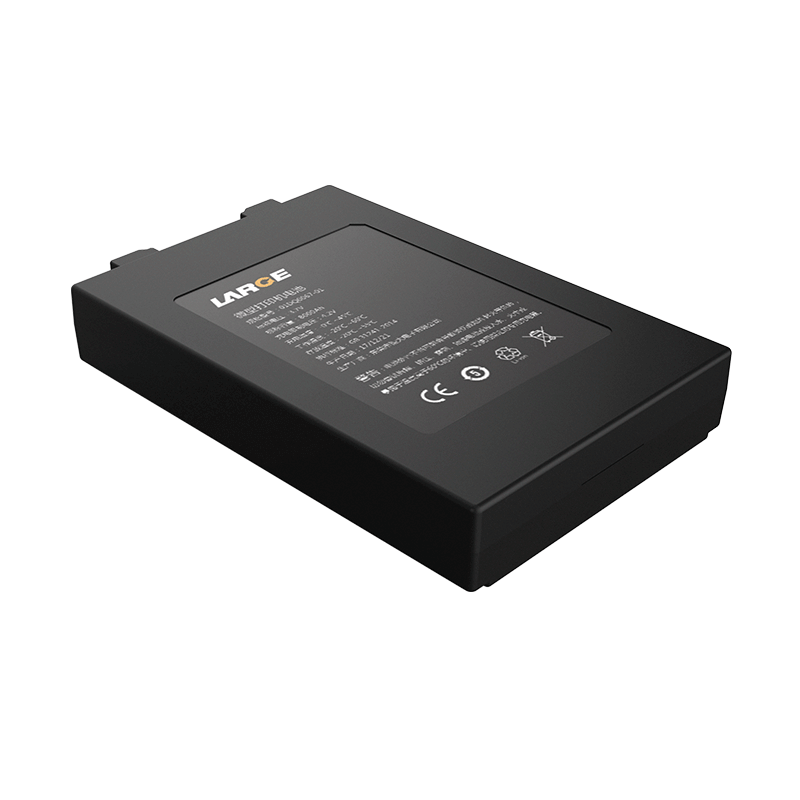

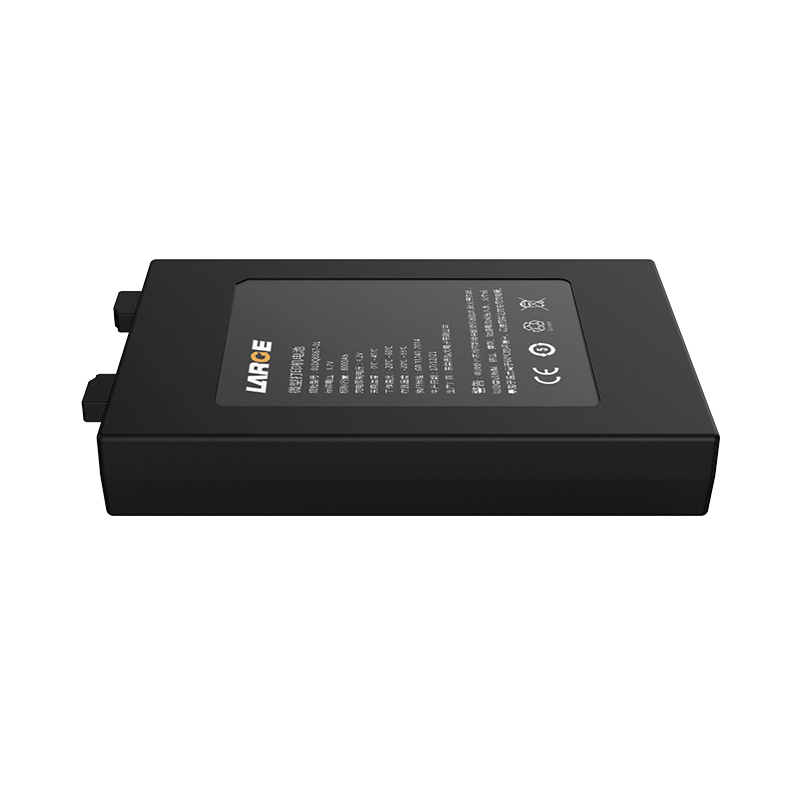

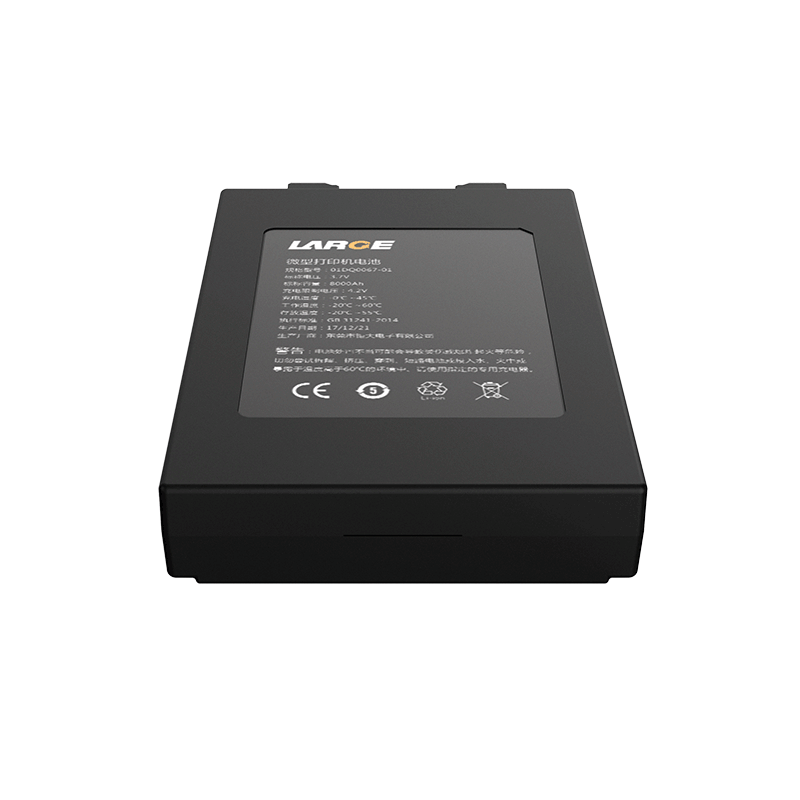

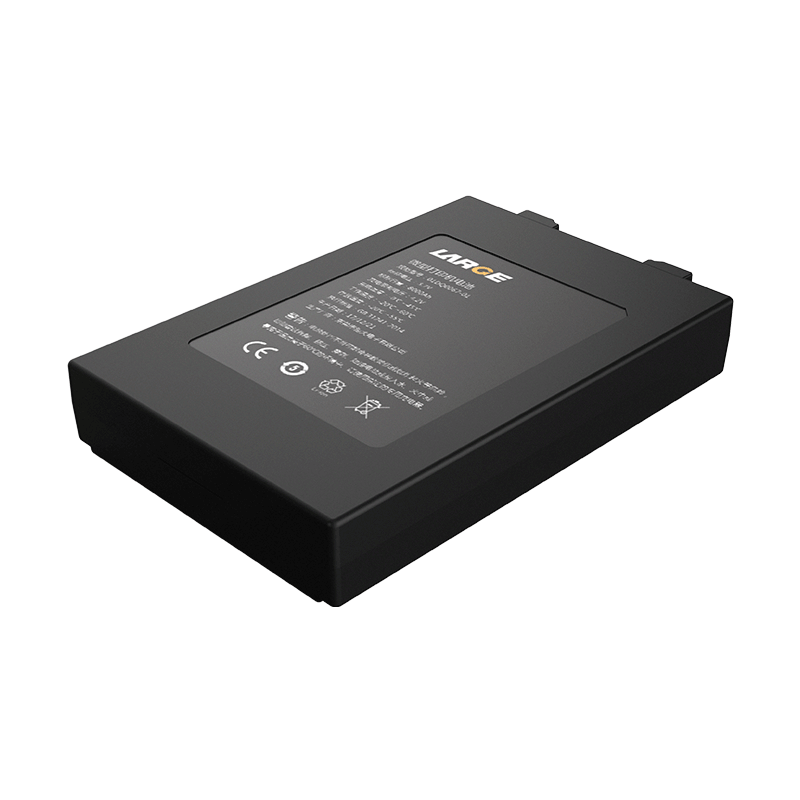

3.7V 8000mAh Lithium Ion Battery for Micro Printer

Product Detail

Product number: 01DQ0067-01

Cell model:586090/4000mAh/3.7V

Battery specification: 586090/1S2P/8000mAh/3.7V(plastic frame)

Nominal voltage:3.7V

Nominal capacity:8000mAh

Charging voltage: 4.2V

Charging current: ≤4000mA

Discharging current: ≤4000mA

Instant discharging current: 7.5A for 20S

End-off voltage: 3.0V

Internal resistance: ≤150mΩ

Battery weight: about 95g

Product dimension: 98.1*63*16mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection, discharge short circuit protection, equalizer circuit, etc.

Application field: micro printer

*
*
*
